Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Fuel System & Fault Isolation
>>
MFI Control System
>>
Camshaft Position (TDC) Sensor
>>
Harness Inspection Procedures
Harness Inspection Procedures

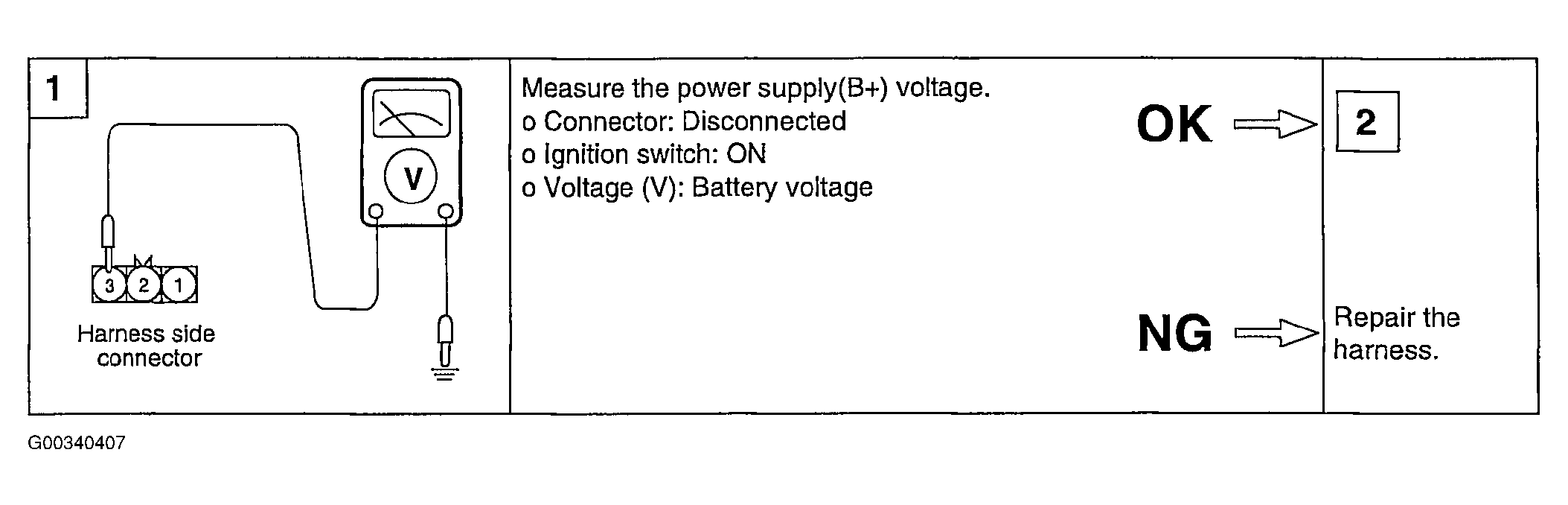

Fig 1: TDC Sensor Harness Inspection Procedure No. 1
Courtesy of KIA MOTORS AMERICA, INC.

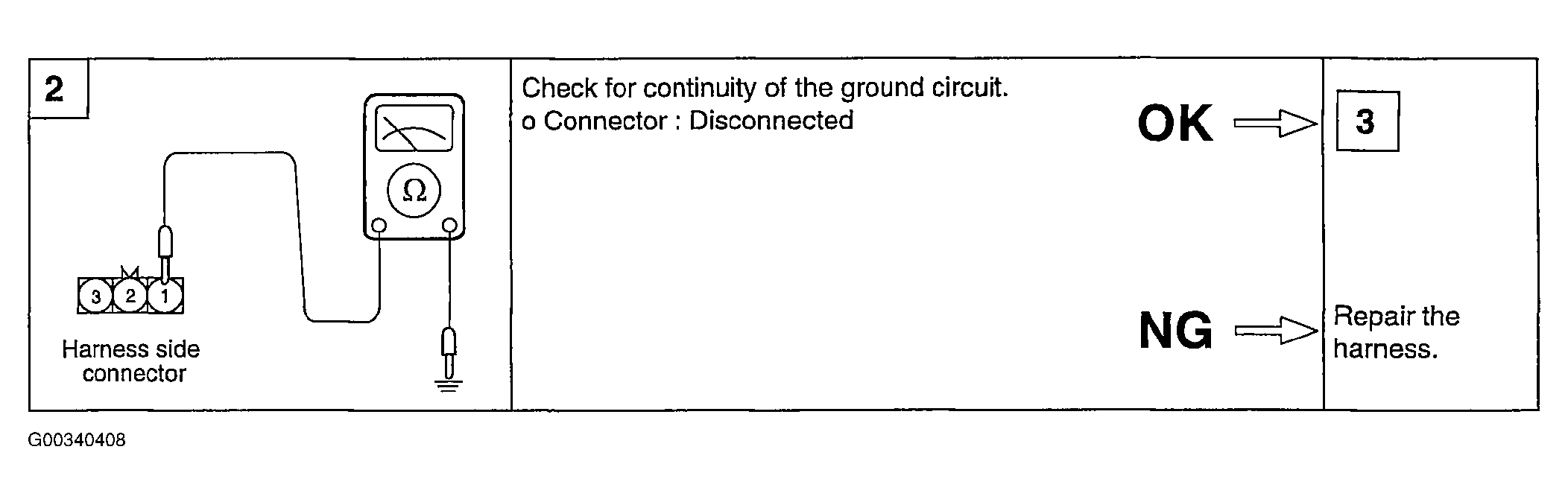

Fig 2: TDC Sensor Harness Inspection Procedure No. 2
Courtesy of KIA MOTORS AMERICA, INC.

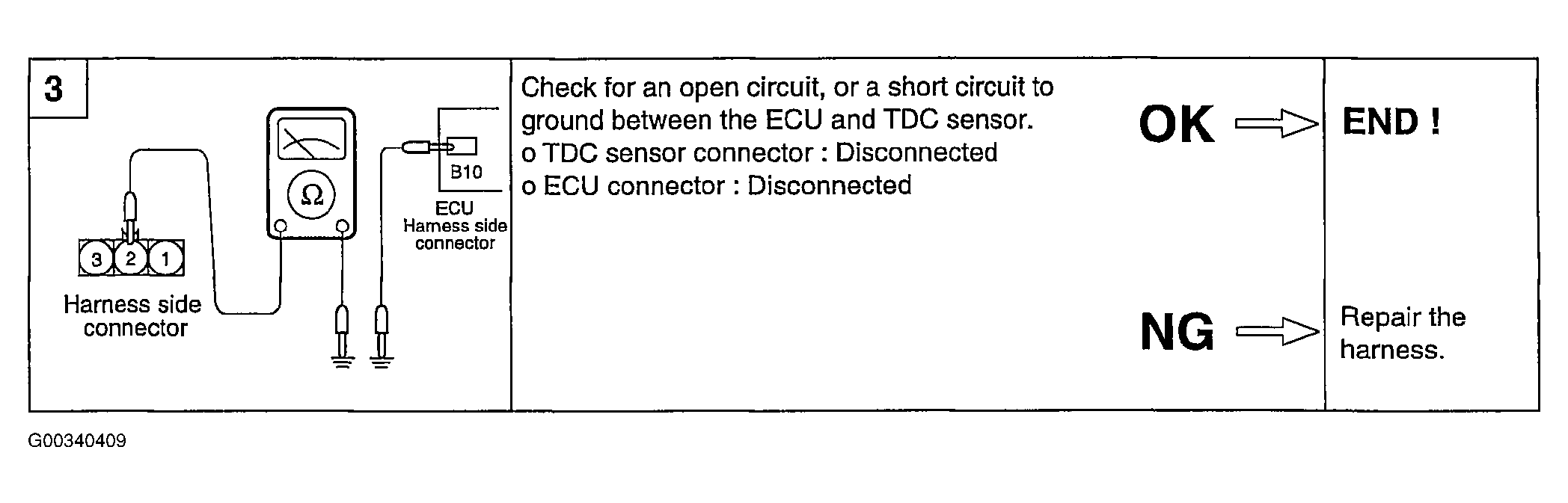

Fig 3: TDC Sensor Harness Inspection Procedure No. 3
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
