Fuel Pump (FP): Removal

Release fuel system pressure. See FUEL SYSTEM PRESSURE RELEASE .
Disconnect the negative battery terminal from the battery.
Remove seat mounting bolts.

Fig 1: Identifying Rear Seat Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear seat .
Remove service cover under center floor carpet.

Fig 2: Identifying Service Cover Under Center Floor Carpet
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the fuel pump electrical connector, the EVAP hose, the main and return hose.

Fig 3: Identifying Fuel Pump Electrical Connector, EVAP Hose, Main & Return Hoses
Courtesy of KIA MOTORS AMERICA, INC.
Unfasten the assembly fixing-bolt (6 EA).
Disconnect the breather hose.

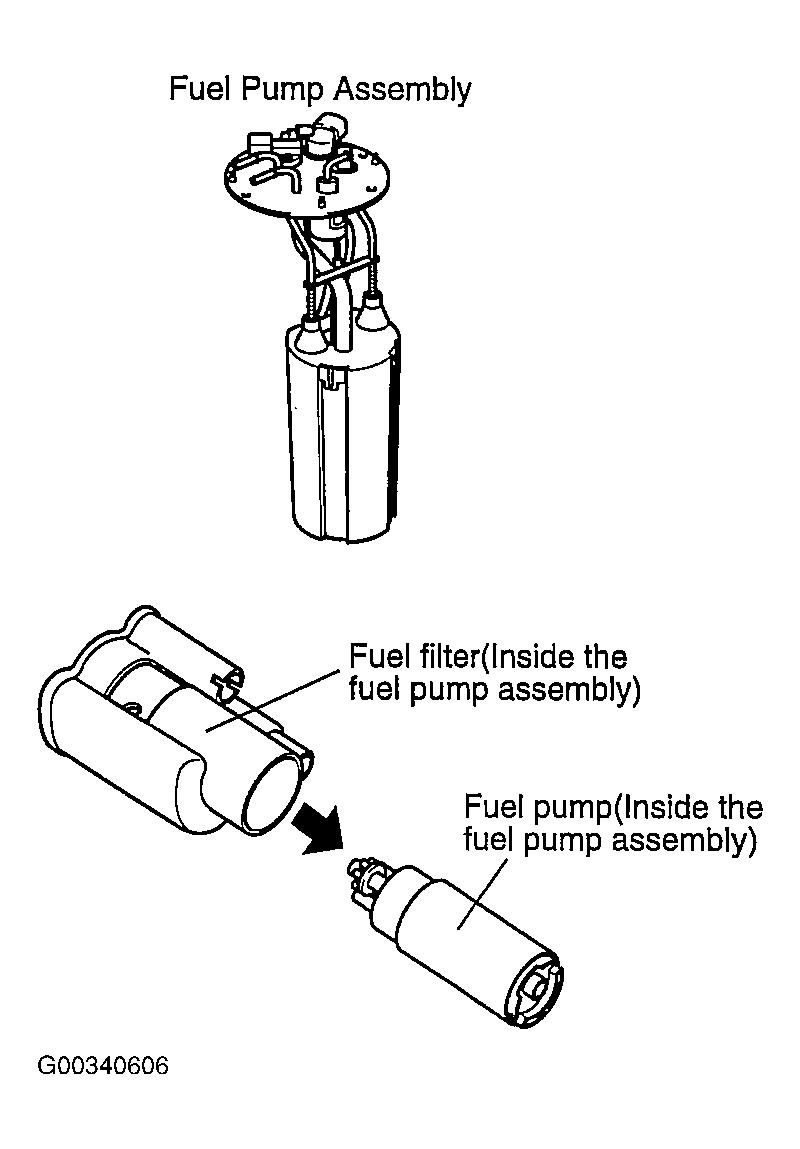

Fig 4: Identifying Fuel Pump Assembly
