Home >> Kia >> 2005 >> Sorento EX, 4WD, Part Time >> Repair and Diagnosis >> Engine Performance >> System >> DTC Troubleshooting Procedures (2 Of 2) >> DTC Troubleshooting Procedures >> DTC P0463: Fuel Level Sensor A Circuit High Input >> Schematic Diagram

Schematic Diagram

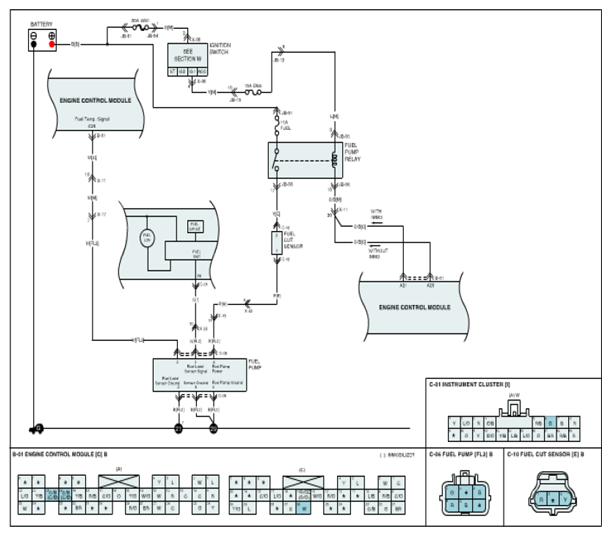

Fig 1: Fuel Level Sensor - Schematic Diagram

G07347804

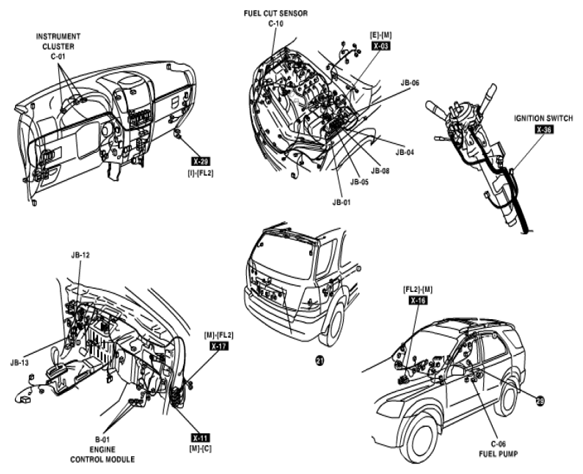

Fig 2: Fuel Level Sensor Connector Locations

G07347805
