Schematic Diagram

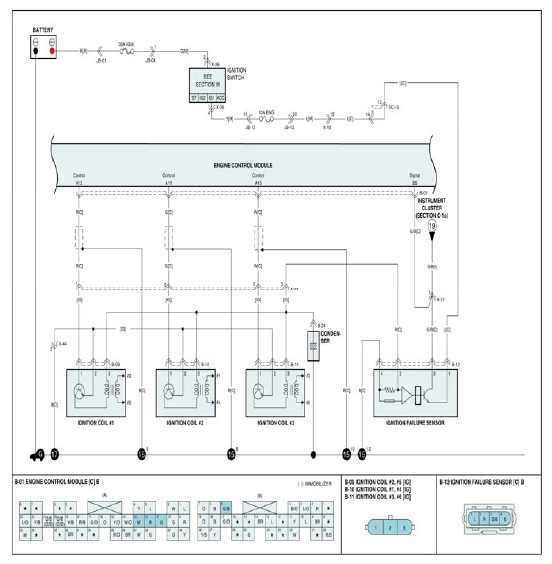

Fig 1: IFS - Schematic Diagram

G07347661

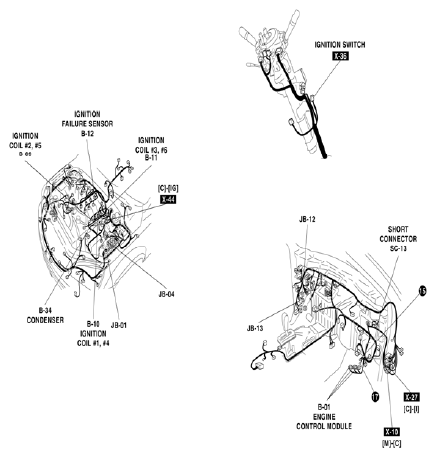

Fig 2: IFS And Engine Control Module Connectors Location

G07347662
