Oxygen Sensor & Powertrain Control Module Connector End Views & Locations

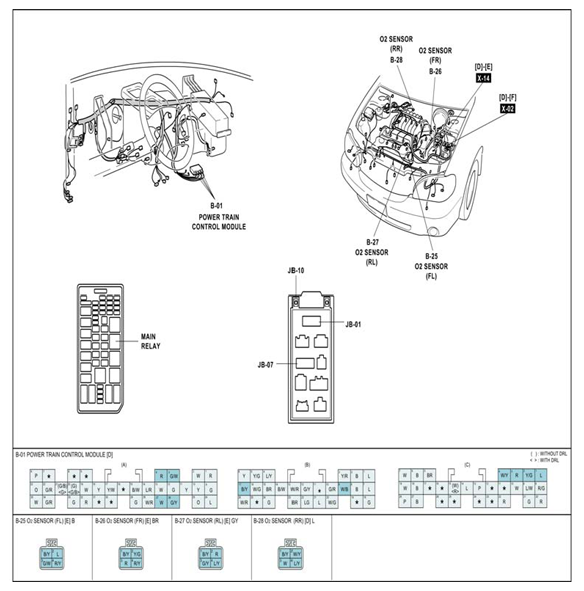

Fig 1: Oxygen Sensor & Powertrain Control Module Connector End Views & Locations

G07346466

Courtesy of KIA MOTORS AMERICA, INC.
