Home >> Kia >> 2005 >> Sedona EX >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System >> ECM Connector & Terminal Information >> Connector B-01 (A)

Connector B-01 (A)

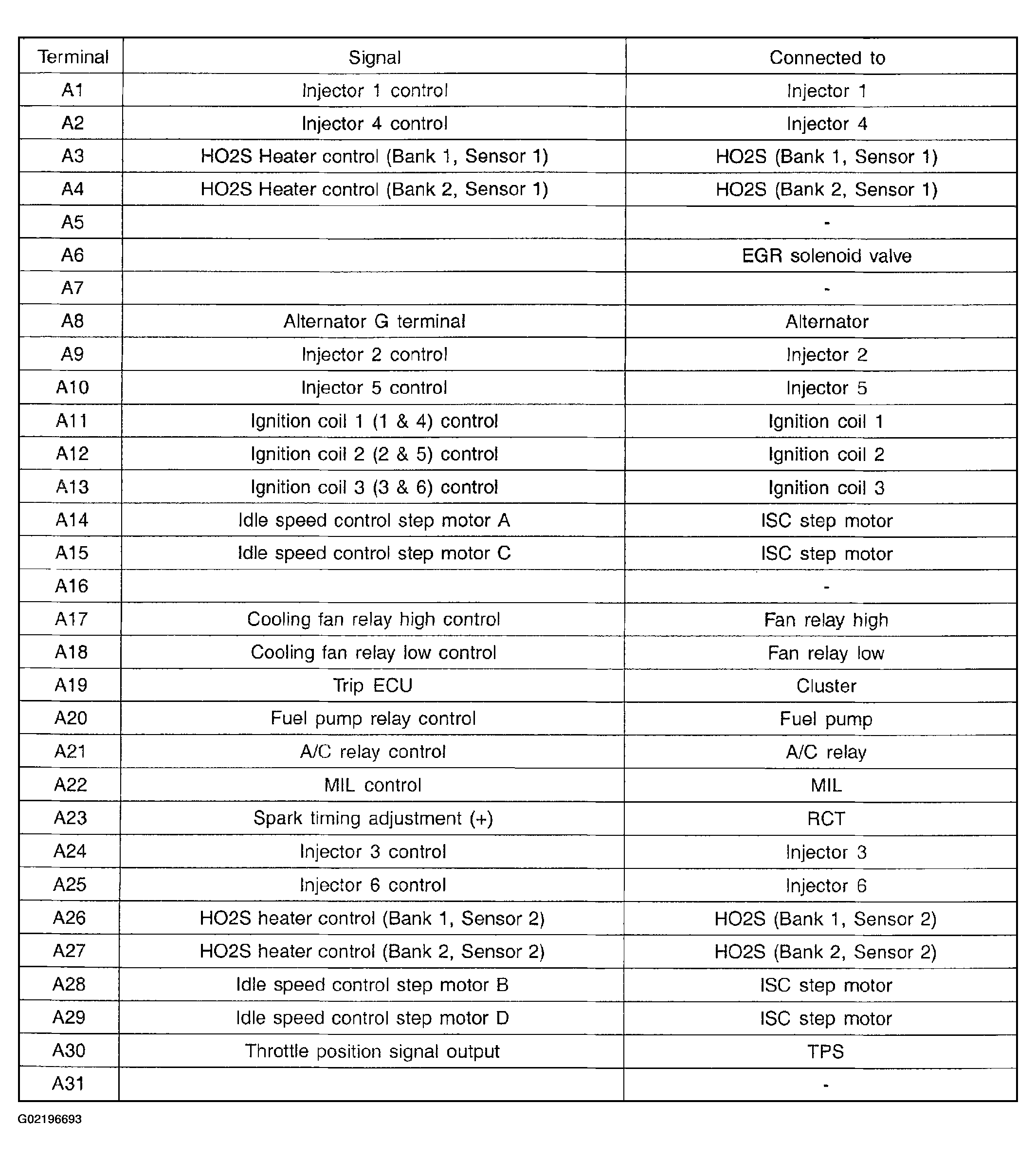

Fig 1: Connector B-01 (A) (1 Of 2)

G02196693

Courtesy of KIA MOTORS AMERICA, INC.

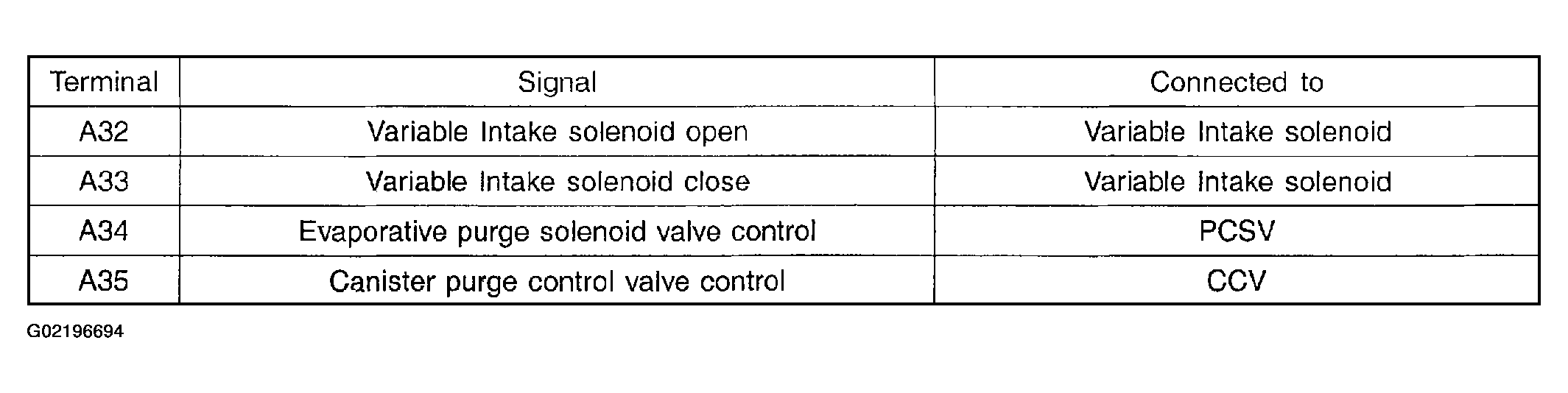

Fig 2: Connector B-01 (A) (2 Of 2)

G02196694

Courtesy of KIA MOTORS AMERICA, INC.
