Component Inspection

Ignition "OFF".
Disconnect Fuel Tank Unit connector.
Measure resistance between terminal "2" and "6" of the Fuel Temperature Sensor connector (To Component Side).
1. Specification:
  At 0°C (32°F), Resistance 4~7 kΩ

  At 20°C (68°F), Resistance 2~3 kΩ

  At 40°C (104°F), Resistance 0.9~1.3 kΩ

  At 80°C (176°F), Resistance 0.2~0.4 kΩ

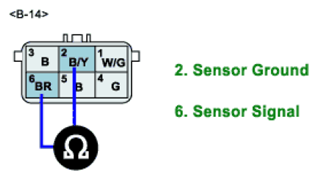

  Fig 1: Measuring Resistance Between Terminal 2 And 6 Of Fuel Temperature Sensor Connector (To Component Side)
  Courtesy of KIA MOTORS AMERICA, INC.
Is the measured resistance of FTS within specifications?
YES
- Substitute with a known-good PCM and check for proper operation.
  If the problem is corrected, replace PCM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Substitute with a known-good FTS and check for proper operation.
  If the problem is corrected, replace FTS and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
