Power Supply Circuit Inspection

  1. Ignition "OFF"
  2. Disconnect TPS connector.
  3. Ignition "ON" & Engine "OFF".
  4. Measure voltage between terminal 2 of the sensor harness connector and chassis ground.
    1. Specification: Approx. 5V

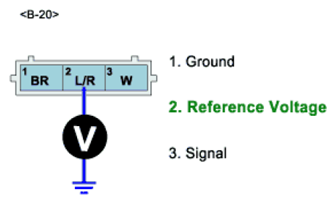

      Fig 1: Measuring Voltage Between Terminal 2 Of Sensor Harness Connector And Chassis Ground
      G07339420
  5. Is voltage within the specification?

    YES

    1. Go to "SIGNAL CIRCUIT INSPECTION " procedure.

    NO

    1. Possibility of open or short to ground in 5V reference circuit. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
