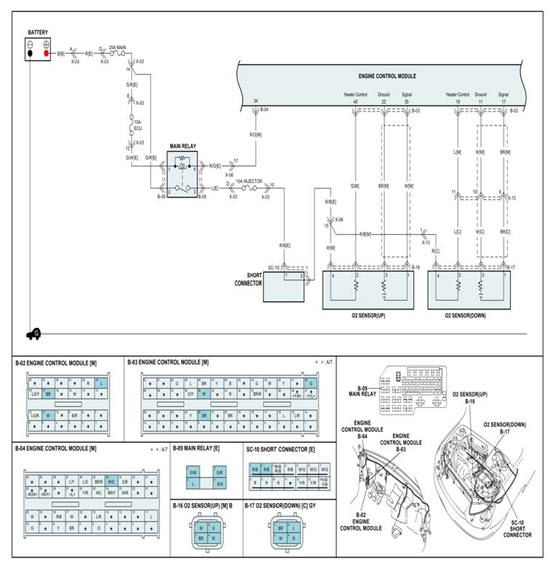

Home >> Kia >> 2005 >> Rio Base, Standard >> Repair and Diagnosis >> Engine Performance >> System >> DTC Troubleshooting Procedures >> DTC Troubleshooting >> DTC P0030: Ho2S Heater Control Circuit (Bank1, Sensor1) >> Inspection/Repair >> W/Harness Inspection >> Schematic Diagram
