Cranks Normally, But Hard To Start (Cold)

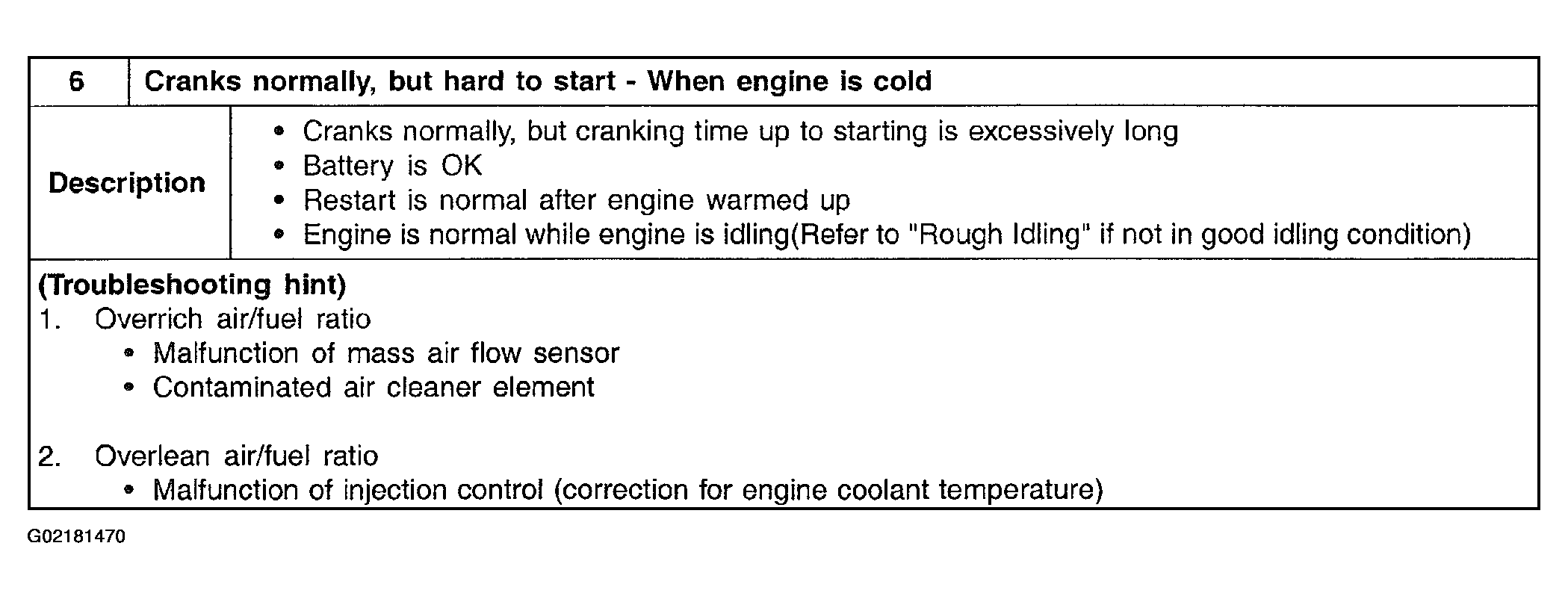

Fig 1: Description

G02181470

Courtesy of KIA MOTORS AMERICA, INC.

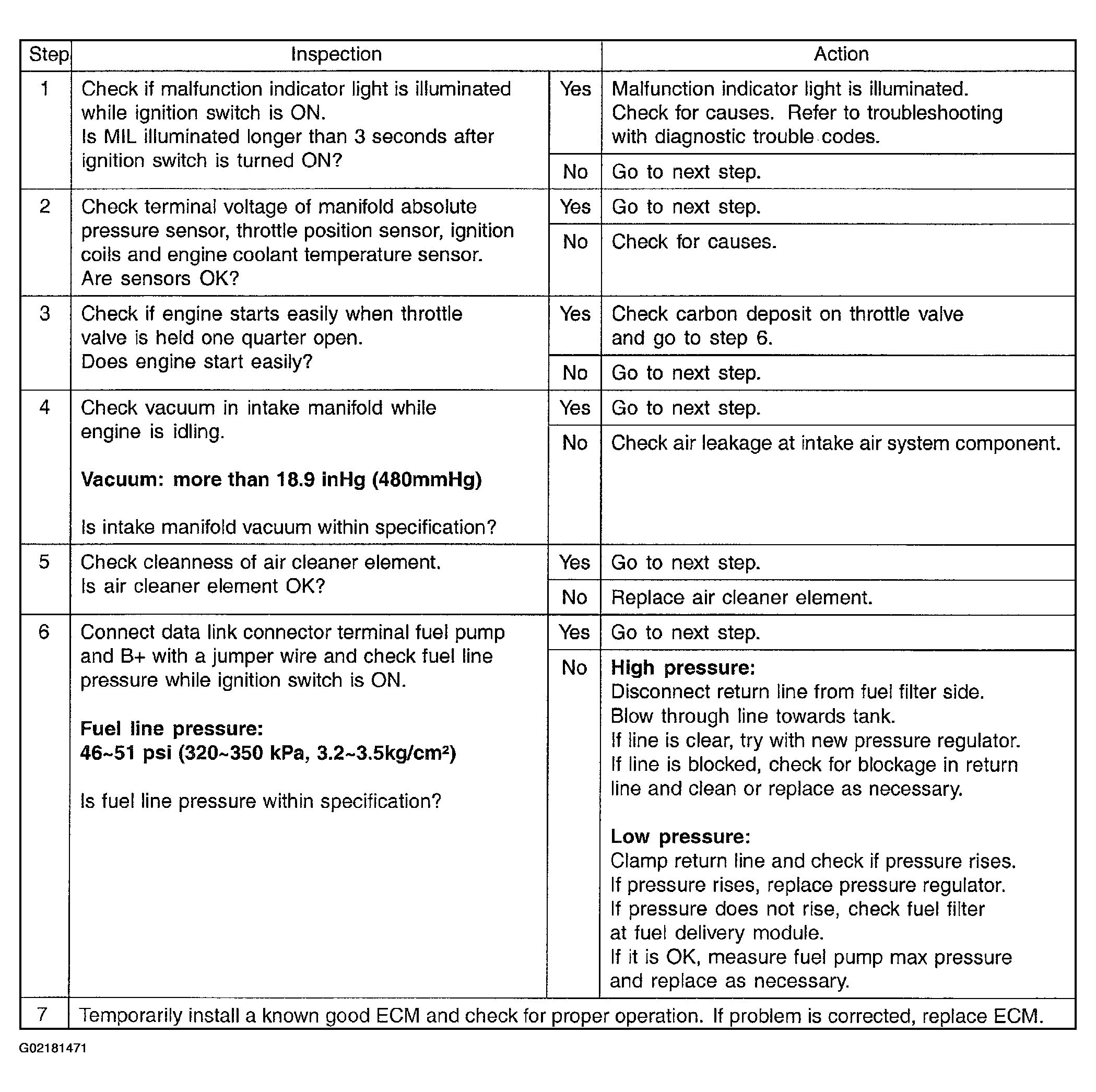

Fig 2: Inspection/Action Chart

G02181471

Courtesy of KIA MOTORS AMERICA, INC.
