Component Inspection

Measure resistance between terminals 1 and 2 of the injector connector (Component side).

Specification

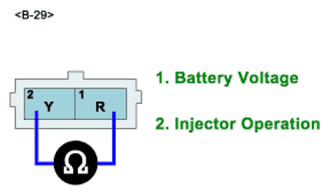

Fig 1: Measuring Resistance Between Terminals 1 And 2 Of Injector Connector (Component Side)

RESISTANCE REFERENCE CHART

Temp. (°C)	Temp. (°F)	Resistance (Ω)
20	68	13.5~15.5

Is resistance within the specification?
YES
1. Go to "W/HARNESS INSPECTION " procedure.
NO
1. Check Injector for contamination, deterioration, or damage. Substitute with a known-good Injector and check for proper operation. If the problem is corrected, replace Injector and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
