Harness Inspection Procedures (CCV)
Harness Inspection Procedures (CCV)

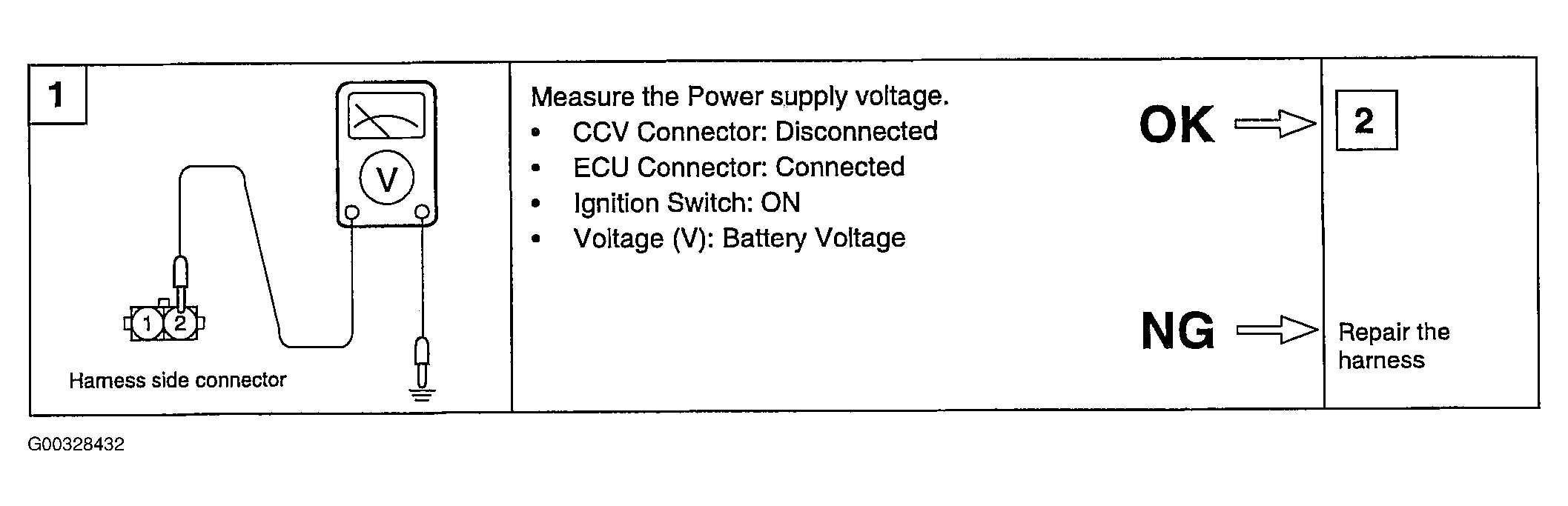

Fig 1: Canister Close Valve (CCV) Harness (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

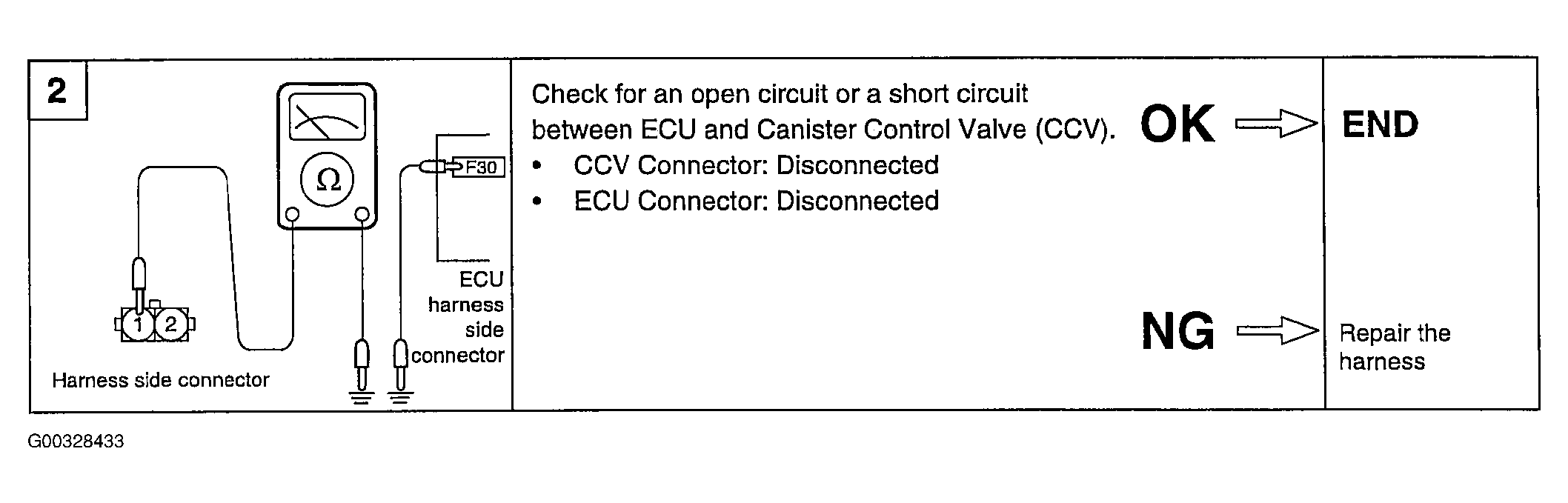

Fig 2: Canister Close Valve (CCV) Harness (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
