System Description

The evaporative system is monitored by a pressure test. The canister close valve and fuel tank pressure sensor are used to close the system and observe tank pressure respectively.

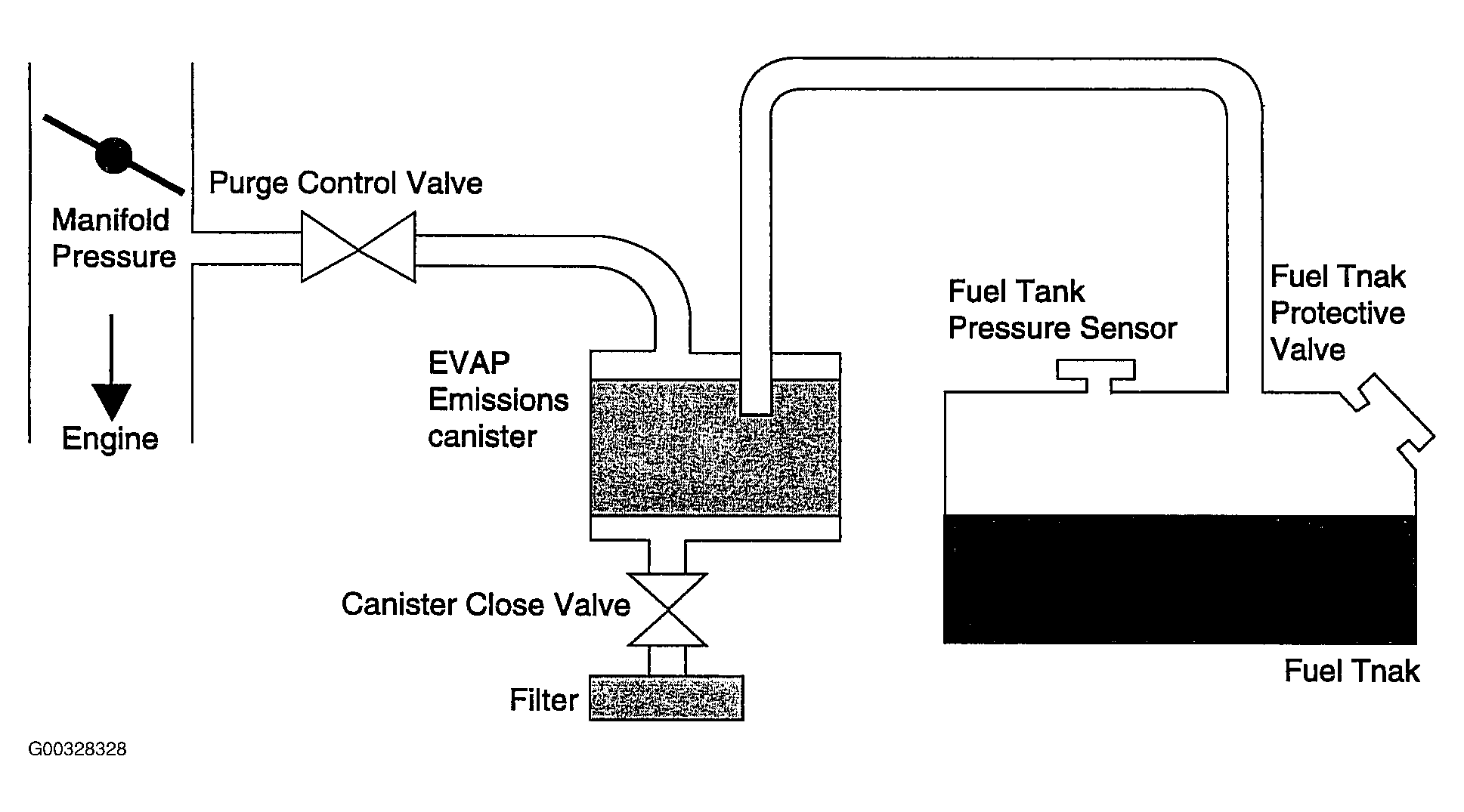

Fig 1: EVAP System Leak Detection Diagram
G00328328Courtesy of KIA MOTORS AMERICA, INC.
