Harness Inspection Procedures (ISA)

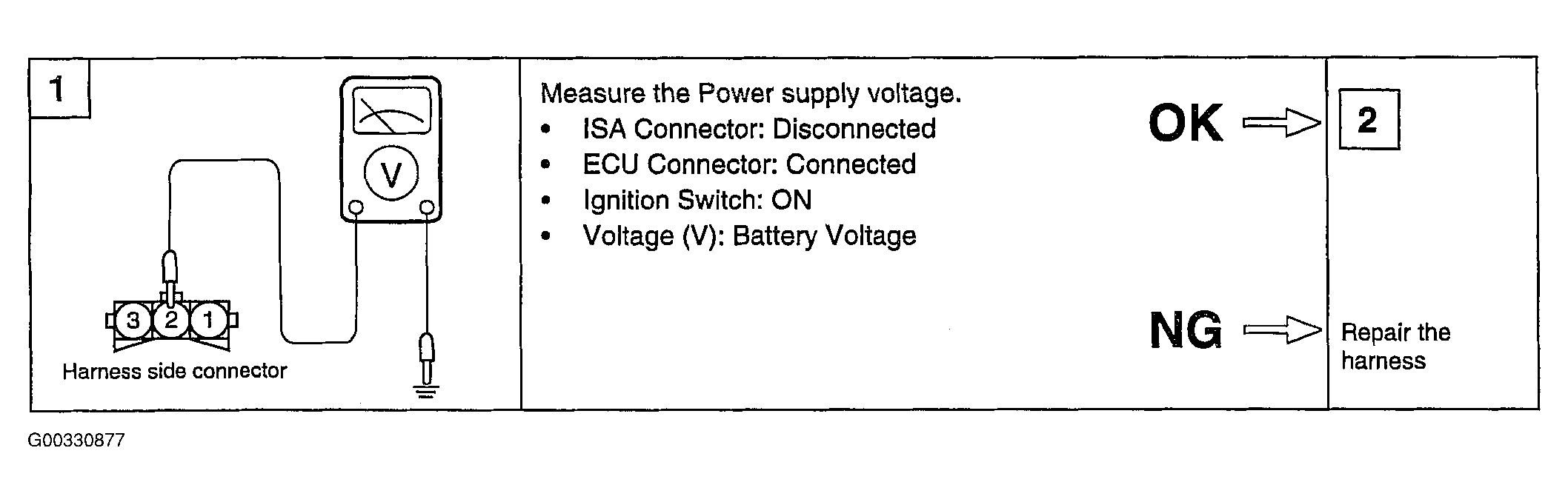

Fig 1: Identifying Idle Speed Control Actuator (ISA) Harness Inspection Procedures (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

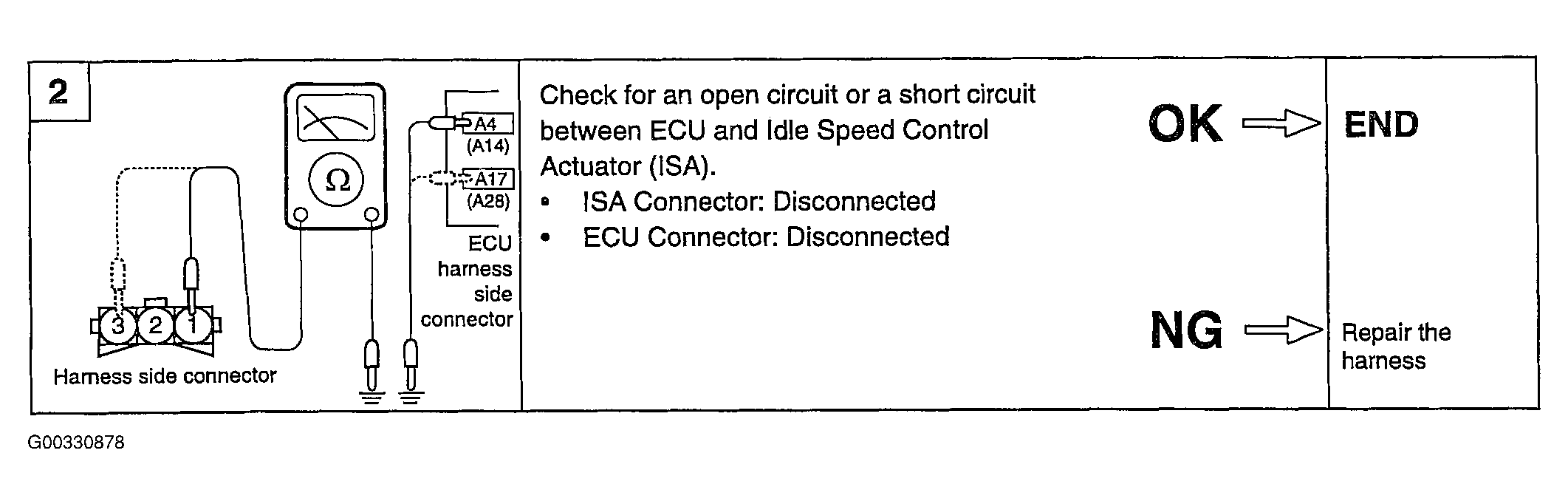

Fig 2: Identifying Idle Speed Control Actuator (ISA) Harness Inspection Procedures (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
