Optima EX, 2.4 6
>>
Repair and Diagnosis
>>
Brakes
>>
Abs/TCS (Anti-Lock Brake System & Traction Control)
>>
Anti-Lock Brake System (Abs)
>>
Inspection Procedures For Diagnostic Trouble Codes
>>
System Function Diagram
System Function Diagram

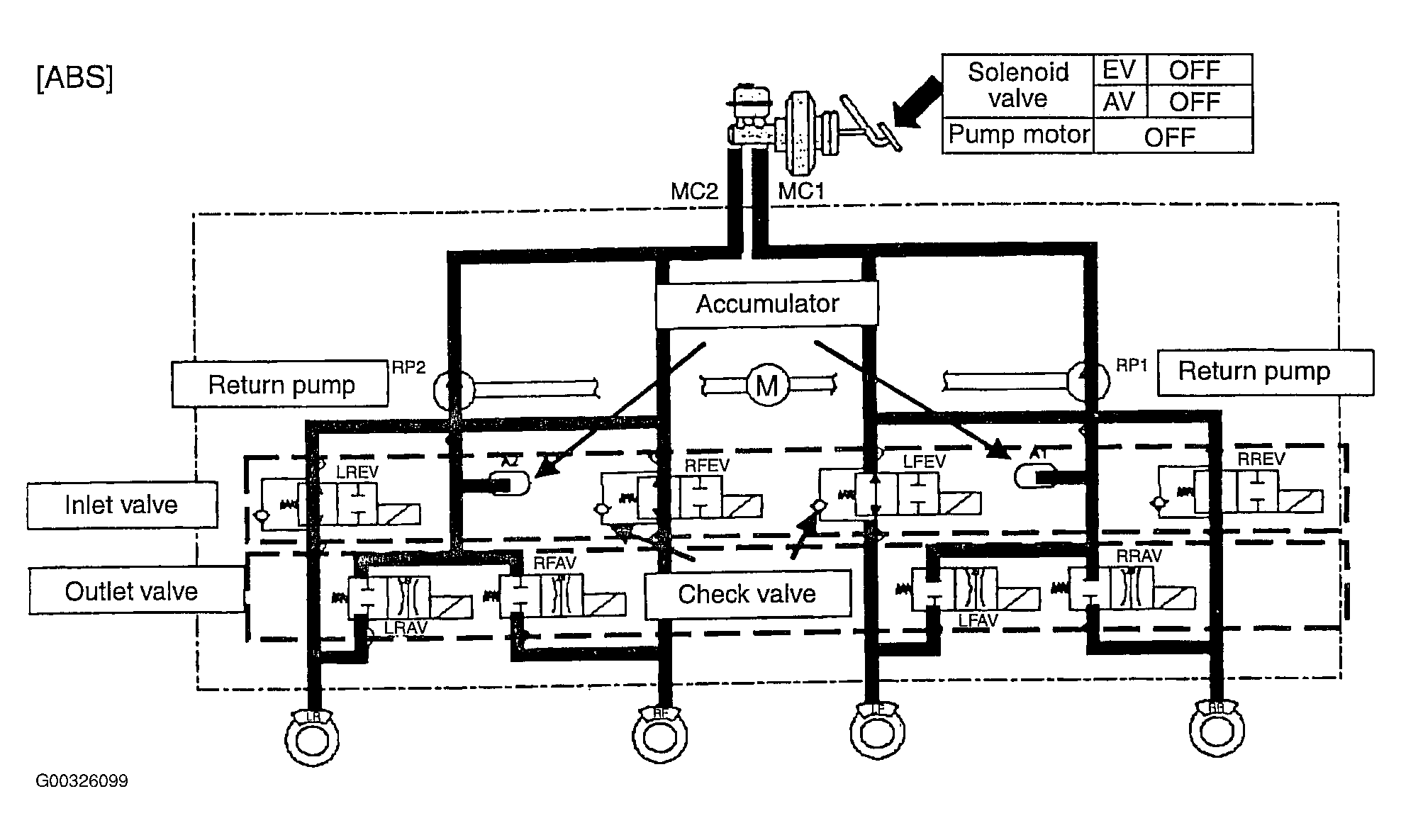

Fig 1: Identifying Anti-Lock Brake System Function Diagram
Courtesy of KIA MOTORS AMERICA, INC.

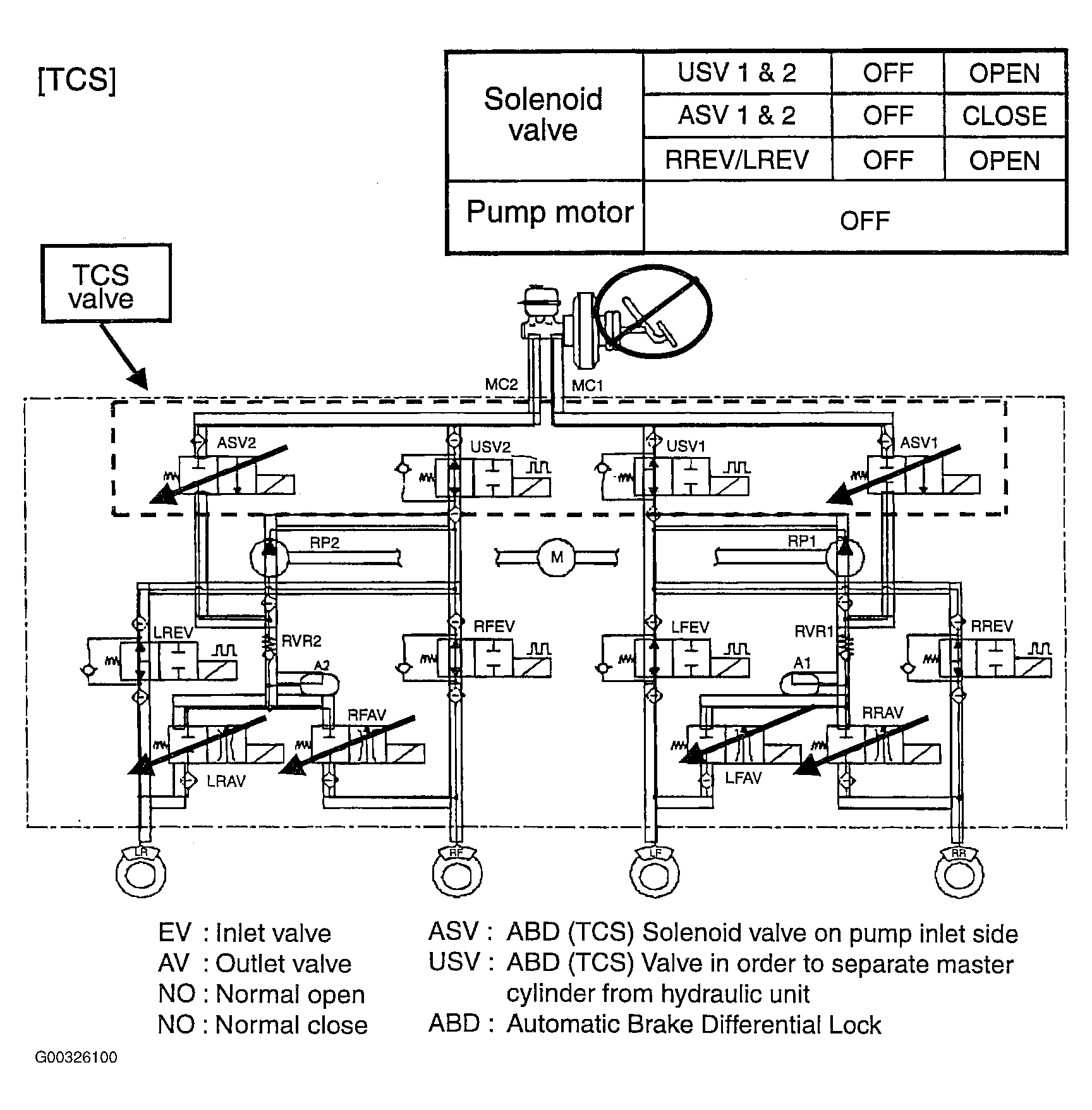

Fig 2: Identifying Traction Control System Function Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
