Inspection Procedures For Diagnostic Trouble Codes
>>
Code No.P0703 Stop lamp switch system
>>
Stop Lamp Switch System
>>
Circuit Diagram
Circuit Diagram
Fig 1: Stop Lamp Switch System Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.

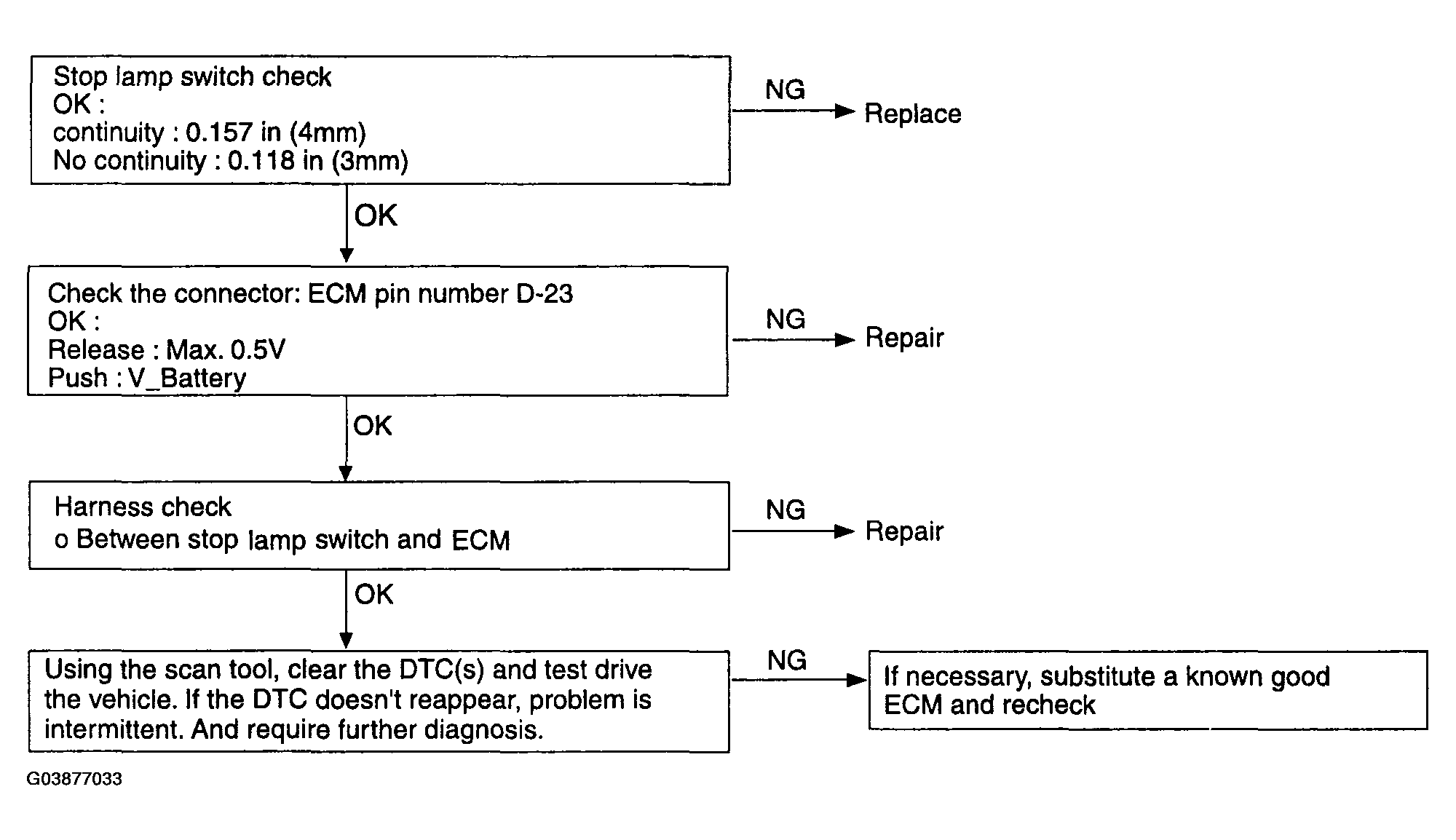

Fig 2: Stop Lamp Switch System Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
