Schematic Diagram

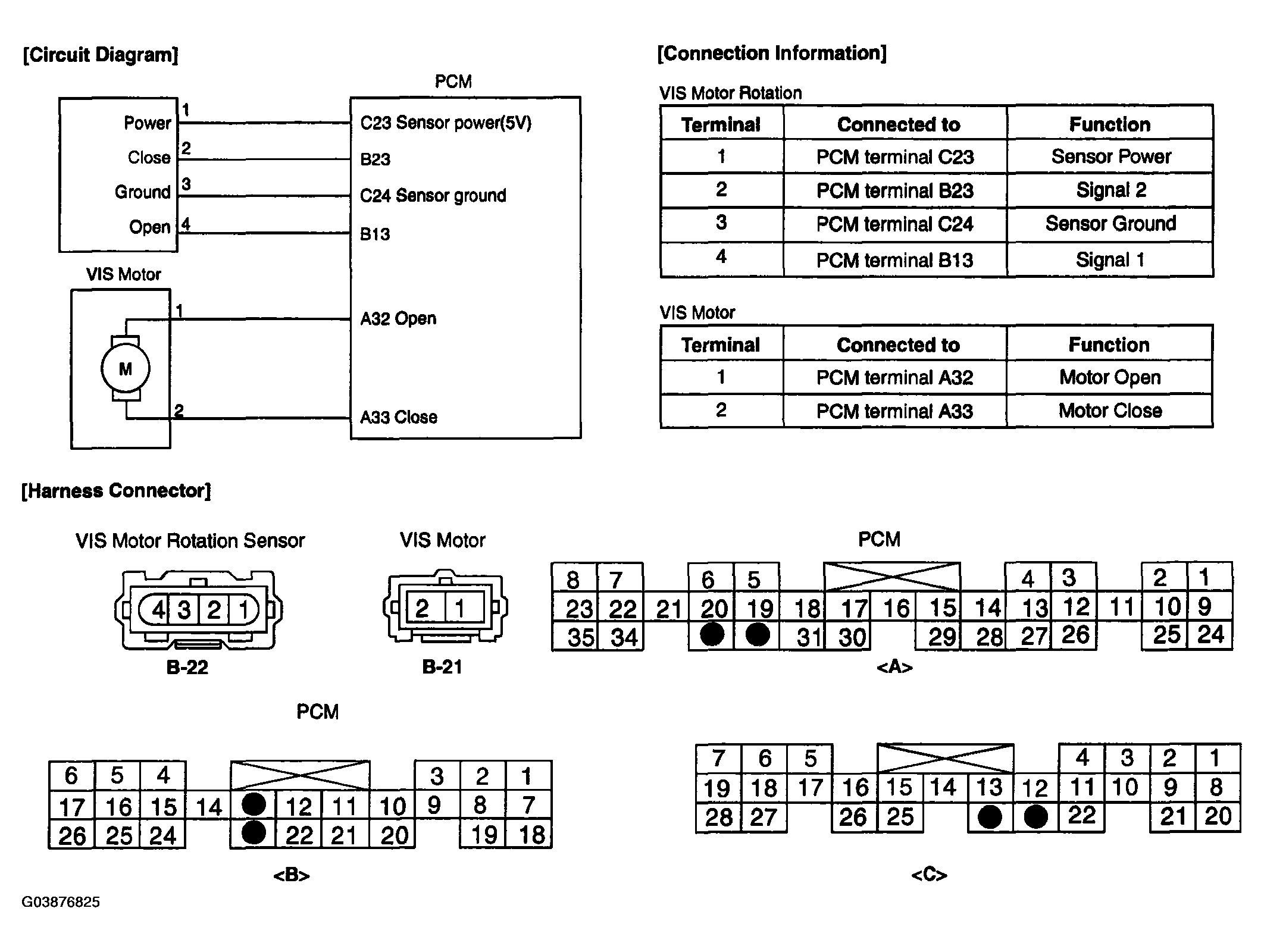

Fig 1: Schematic Diagram VIS Motor

G03876825

Courtesy of KIA MOTORS AMERICA, INC.
