Home >> Kia >> 2005 >> Amanti >> Repair and Diagnosis >> Engine Performance >> System >> DTC Troubleshooting Procedures (2 Of 2) >> DTC P0551 Power Steering Pressure Sensor/Switch Circuit Range/Performance >> Schematic Diagram

Schematic Diagram

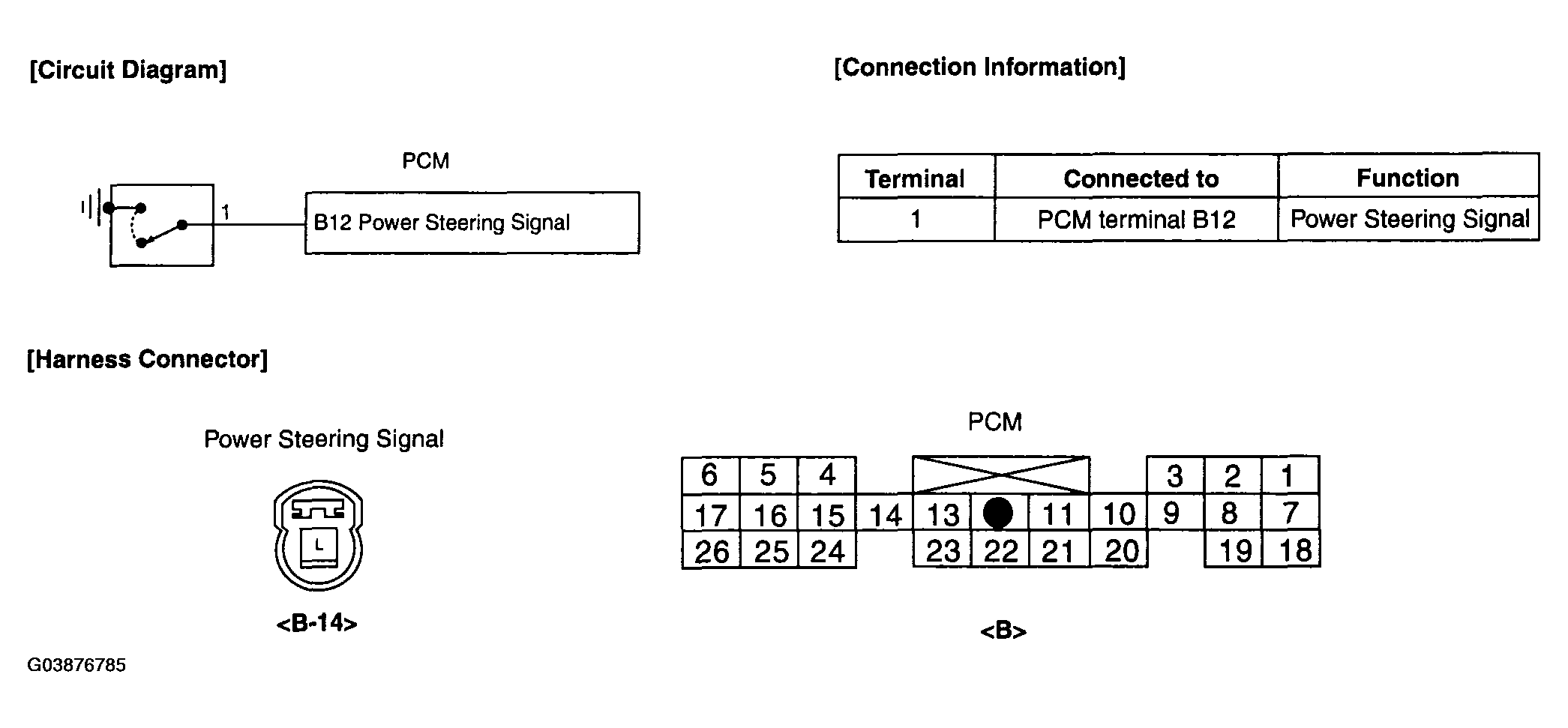

Fig 1: Schematic Diagram APS

G03876785

Courtesy of KIA MOTORS AMERICA, INC.
