Component Inspection

  1. Ignition "OFF"
  2. Disconnect Fuel Level Sensor connector.
  3. Measure resistance between terminal 1 and 3 of the Fuel Level Sensor connector during lifting fuel float up and down (To Component Side).
    RESISTANCE CONDITION

    FLS Normal Parameter
    Float position Full gauge 3/4 1/2 1/4 Empty gauge
    Resistance 8Ω 36Ω 66Ω 110Ω 200Ω
    Fuel volume 68l 52l 38l 23l 5l

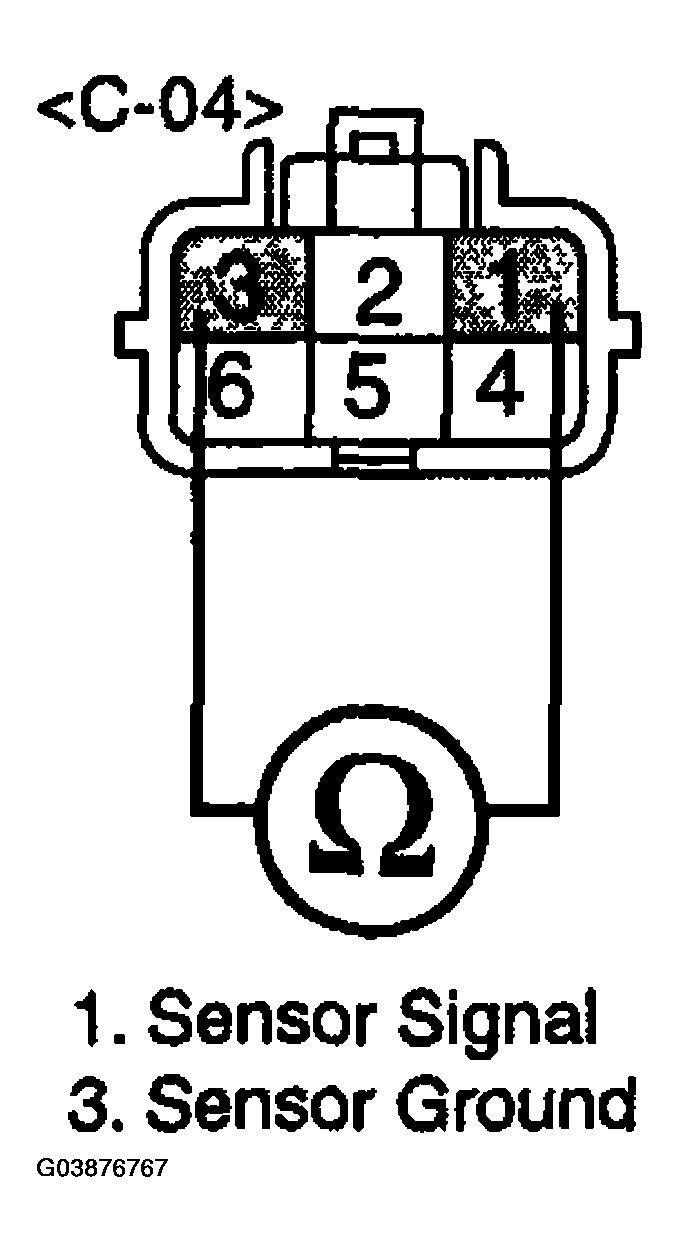

    Fig 1: Measuring Resistance Between Terminal 1 And 3 Of Fuel Level Sensor Connector
    G03876767Courtesy of KIA MOTORS AMERICA, INC.
  4. Does the measured resistance of FLS change during lifting up and down the fuel level float?

    Yes

    • Substitute with a known - good PCM and check for proper operation. If the problem is corrected, replace PCM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    • Substitute with a known - good Fuel Level Sensor and check for proper operation. If the problem is corrected, replace Fuel Level Sensor and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
