Schematic Diagram

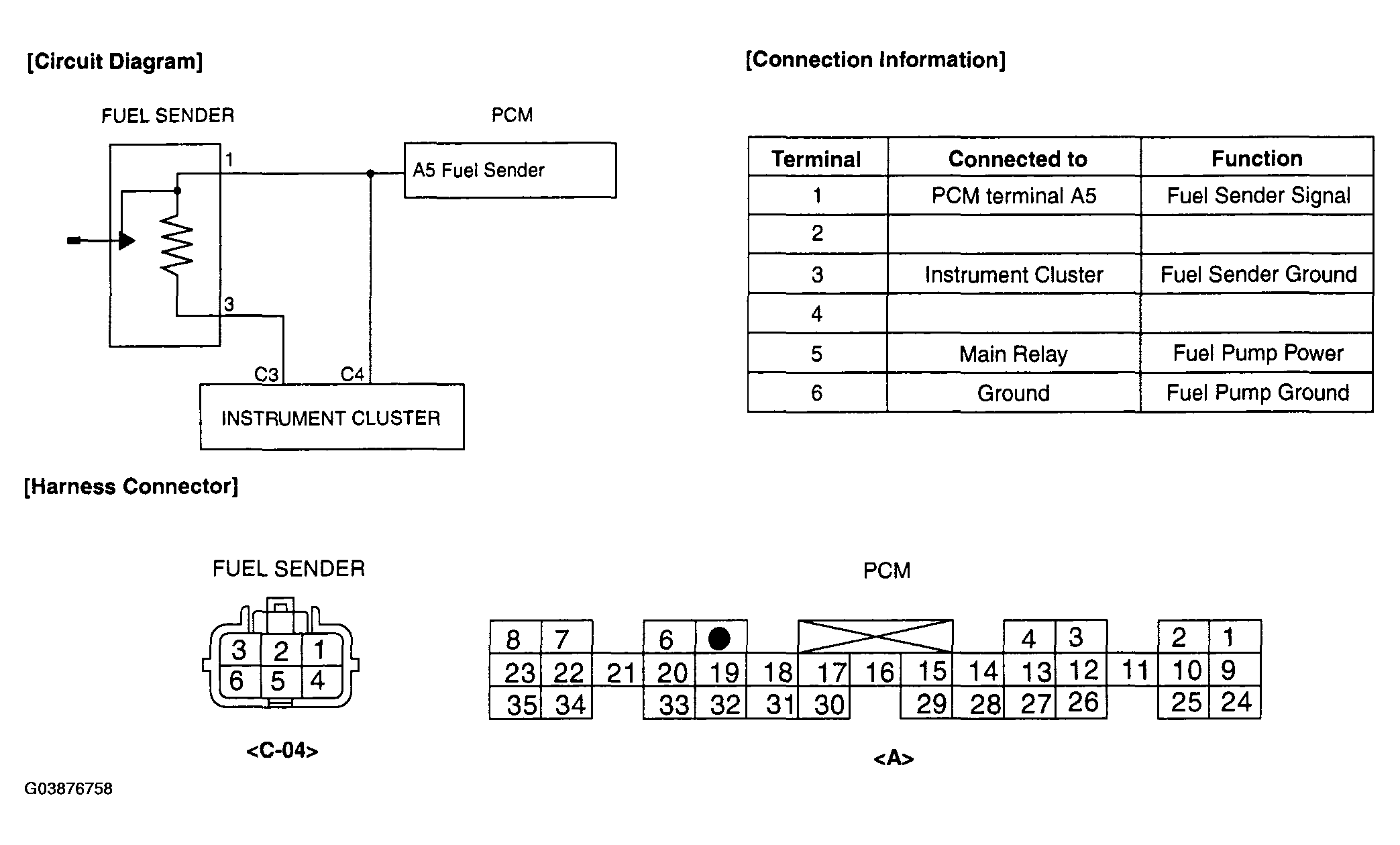

Fig 1: Schematic Diagram Fuel Sensor

G03876758

Courtesy of KIA MOTORS AMERICA, INC.
