Signal Circuit Inspection

Check for short to battery in harness
1. Ignition "OFF"
2. Disconnect FTPS connector.
3. Measure resistance between terminal 3 and "1" of FTPS harness connector.
  Specification: Approx. below 1Ω

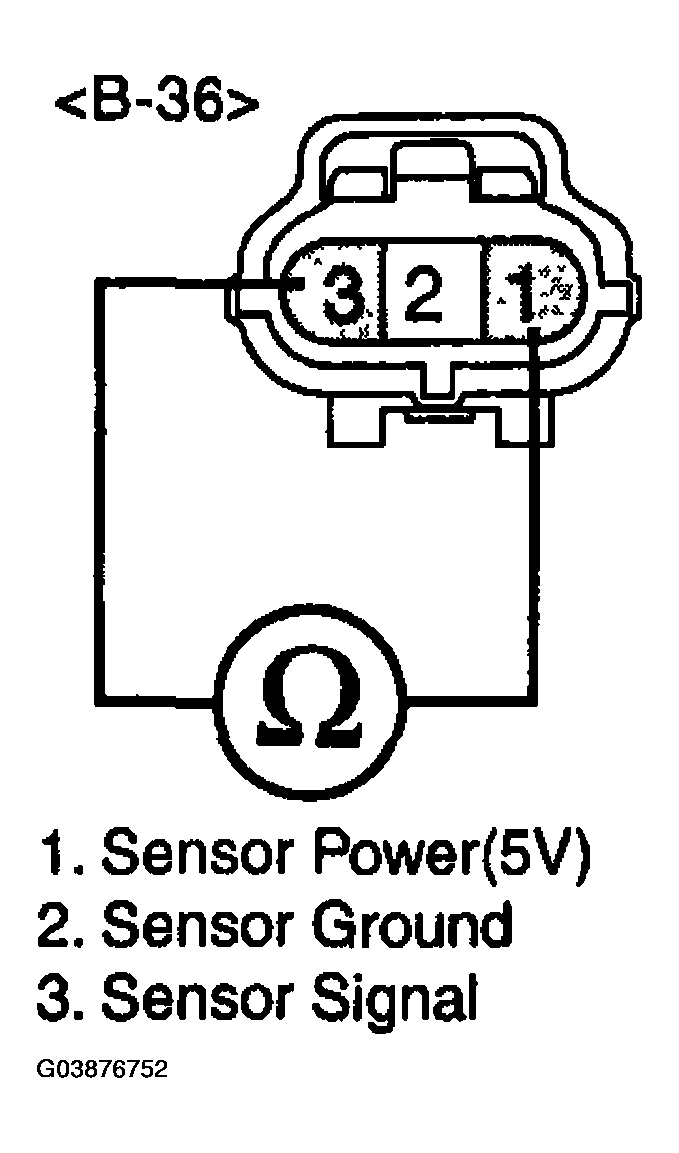

  Fig 1: Measuring Resistance Between Terminal 3 And "1" Of FTPS Harness Connector
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured resistance within specifications?
  Yes
  - Go to "COMPONENT INSPECTION " procedure.
  NO
  - Check for short to ground in harness.
  - Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
