Power Circuit Inspection

Check Voltage
1. Ignition "OFF"
2. Disconnect FTPS connector and PCM connector.
3. Ignition "ON" & Engine "OFF"
4. Measure voltage between terminal 1 of FTPS harness connector and chassis ground.
  Specification: Approx. 5V

  Fig 1: Measuring Voltage Between Terminal 1 Of FTPS Harness Connector And Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.
5. Is the measured voltage within specifications?
  Yes
  - Go to "SIGNAL CIRCUIT INSPECTION " procedure.
  NO
  - Go to "Check for open in harness" as below.
Check for open in harness
1. Ignition "OFF"
2. Disconnect FTPS connector and PCM connector.
3. Measure resistance between terminal "1" of FTPS harness connector and terminal "C23" of PCM harness connector.
  Specification: Approx. below 1Ω

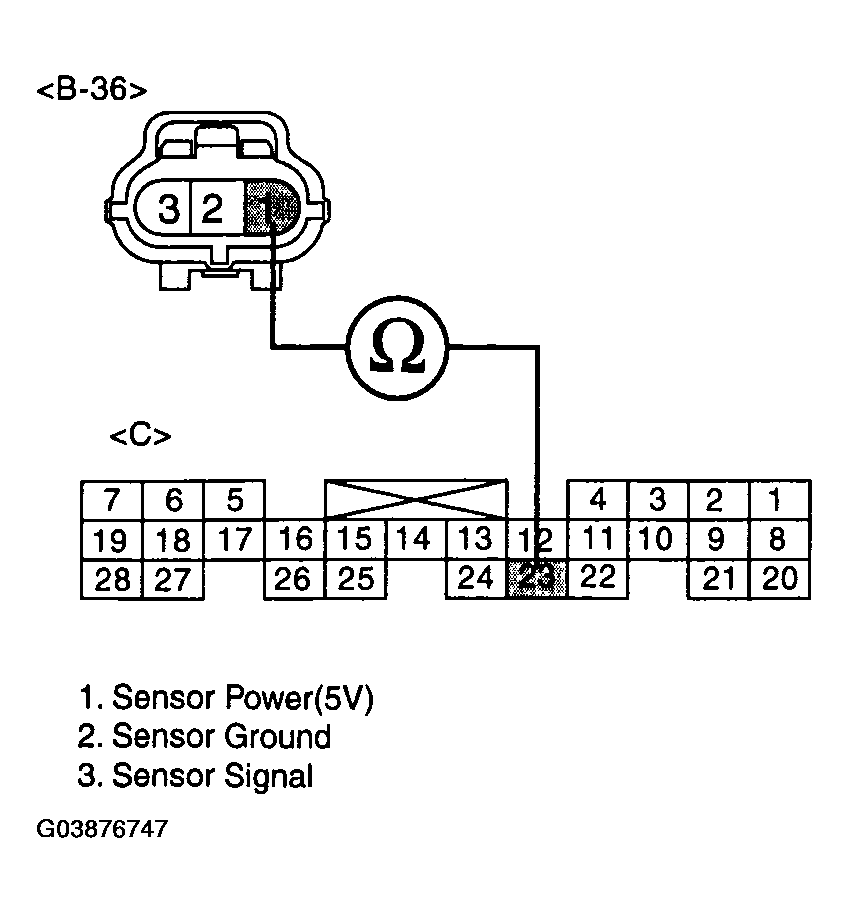

  Fig 2: Measuring Resistance Between Terminal "1" Of FTPS Harness Connector
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured resistance within specifications?
  Yes
  - Go to "SIGNAL CIRCUIT INSPECTION " procedure.
  NO
  - Check for open in harness.
  - Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
