Component Inspection

Check CCV
1. Ignition "OFF"
2. Measure resistance between terminals "1" and "2" of the CCV connector.
  Specification: Approx. 36 ~ 44Ω (20°C(68°F))
3. Connect Scantool and Perform Actuation Test for CCV with scantool.
4. Check that clicking sound can be heard by actuation test.

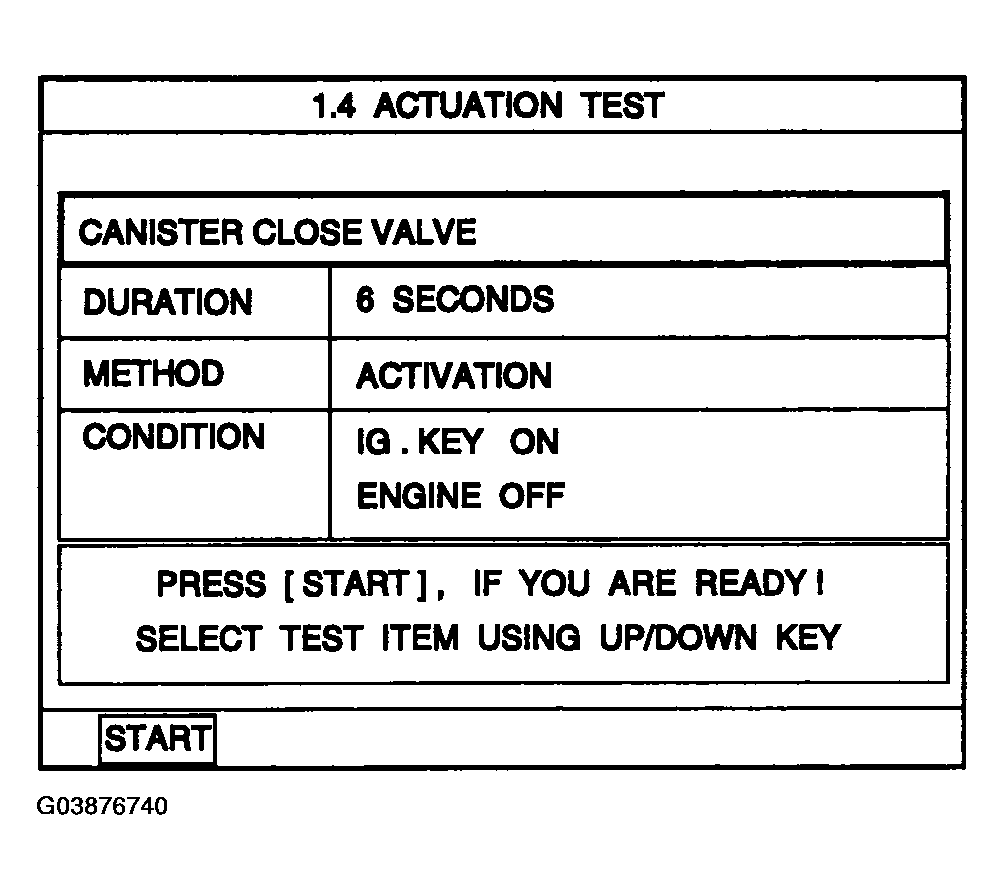

  Fig 1: Checking Clicking Sound Can Be Heard By Actuation Test
  Courtesy of KIA MOTORS AMERICA, INC.
5. Monitor the CCV signal waveform and verify that the ground voltage is less than approx. 0.3V (1) and the surge voltage (2) is between 40 V and 60 V.

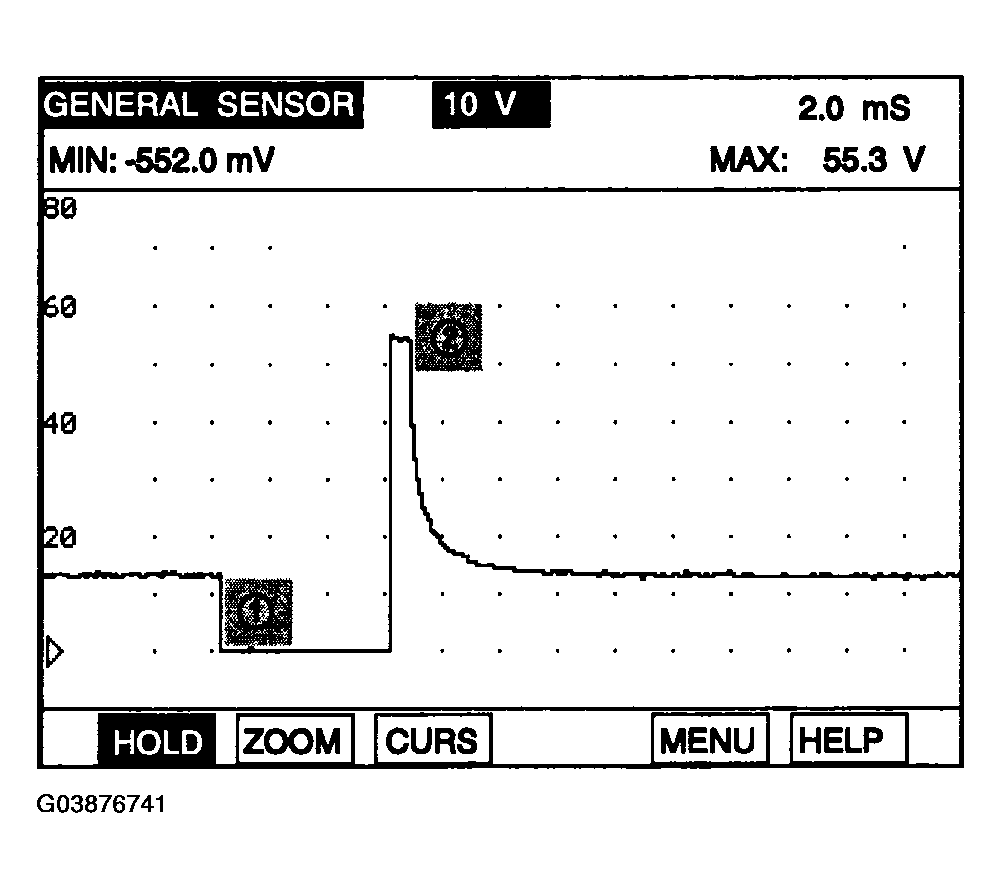

  Fig 2: CCV Signal Waveform
  Courtesy of KIA MOTORS AMERICA, INC.
6. Is the CCV normal?
  Yes
  - Substitute with a known - good PCM and check for proper operation. If the problem is corrected, replace PCM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
