HECU Connector End View

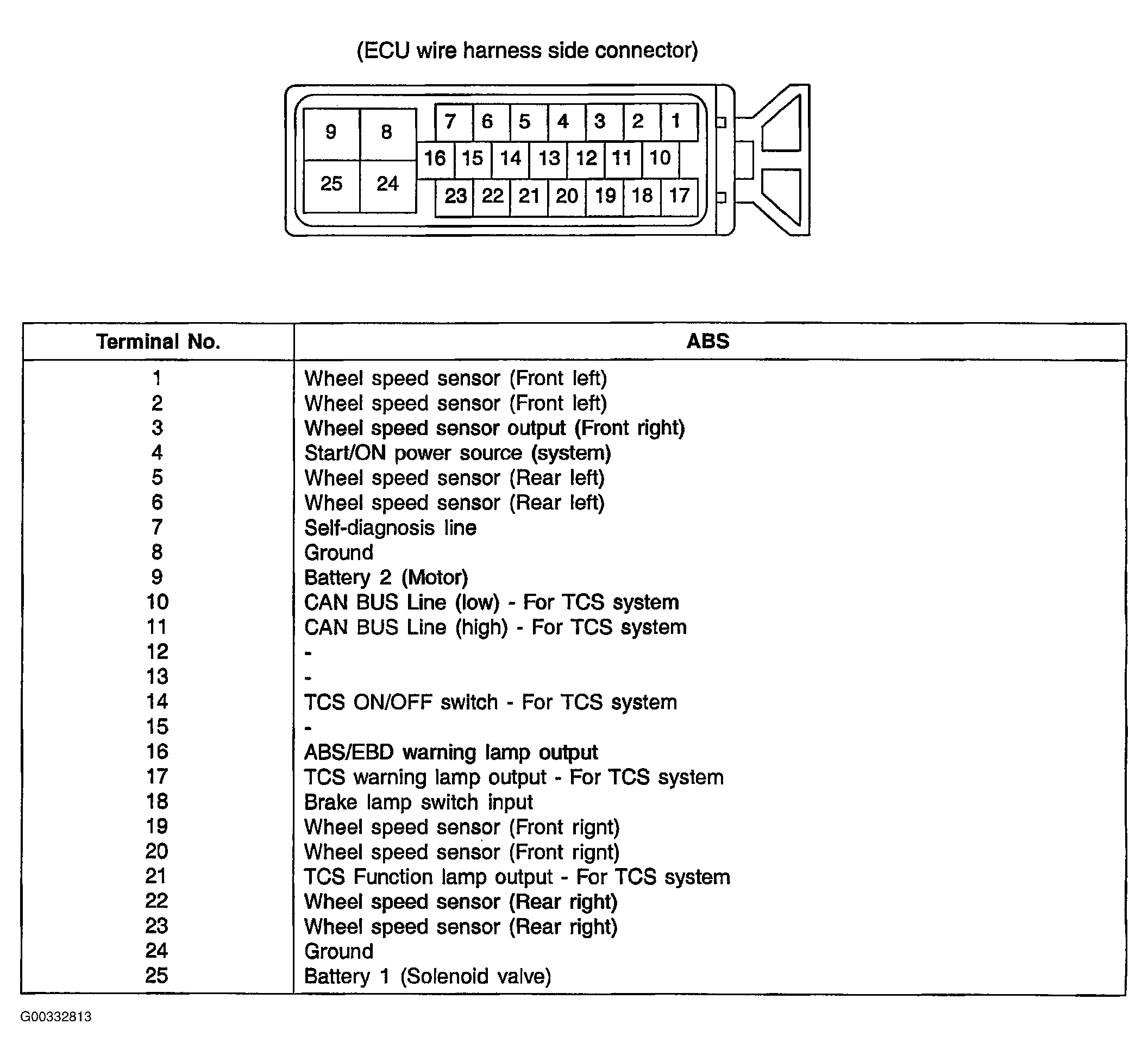

Fig 1: HECU Connector End View

G00332813

Courtesy of KIA MOTORS AMERICA, INC.
