Chart 5

CD Will Not Be Accepted

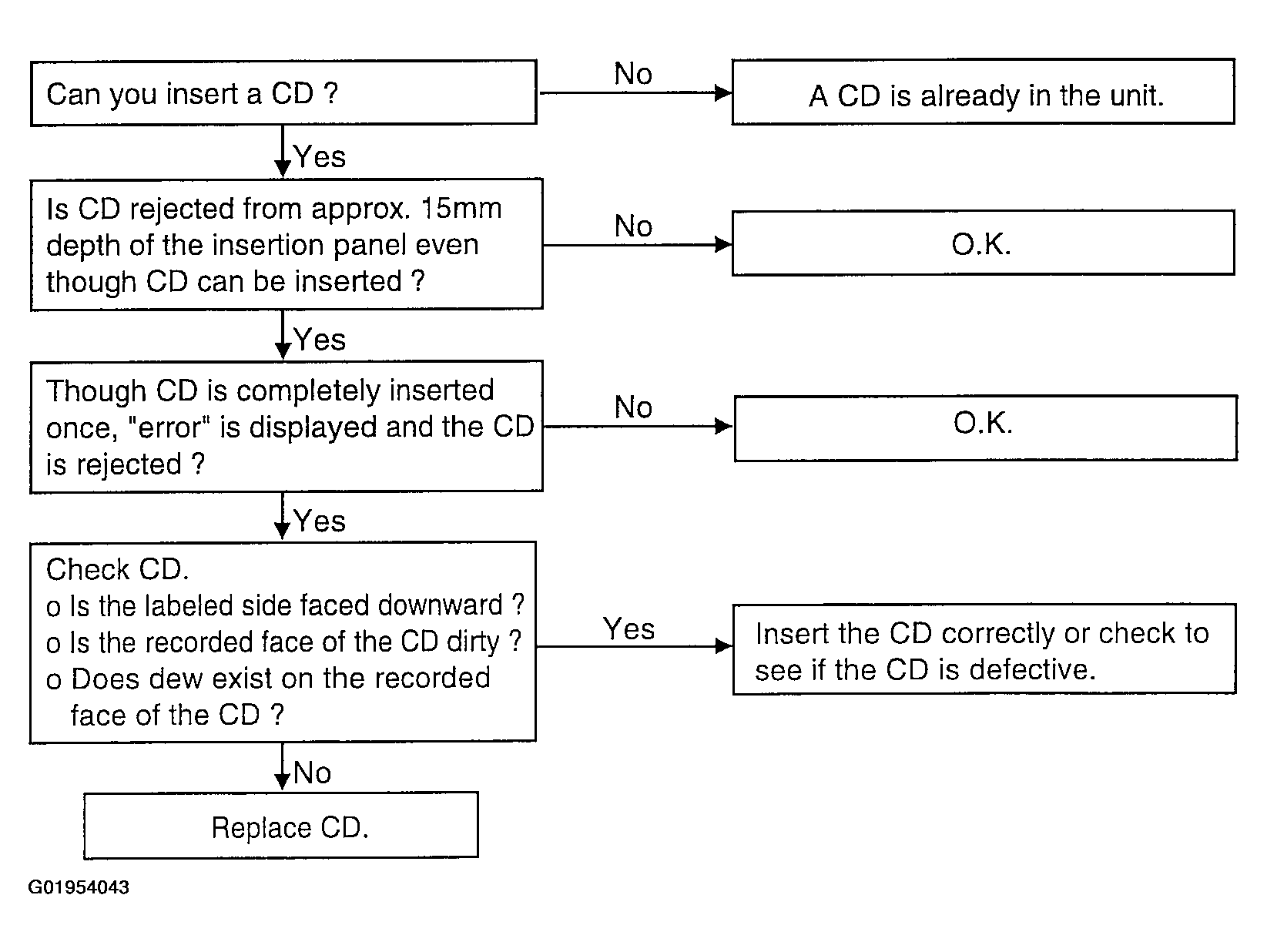

Fig 1: CD Will Not Be Accepted
Courtesy of KIA MOTORS AMERICA, INC.
CD No Sound

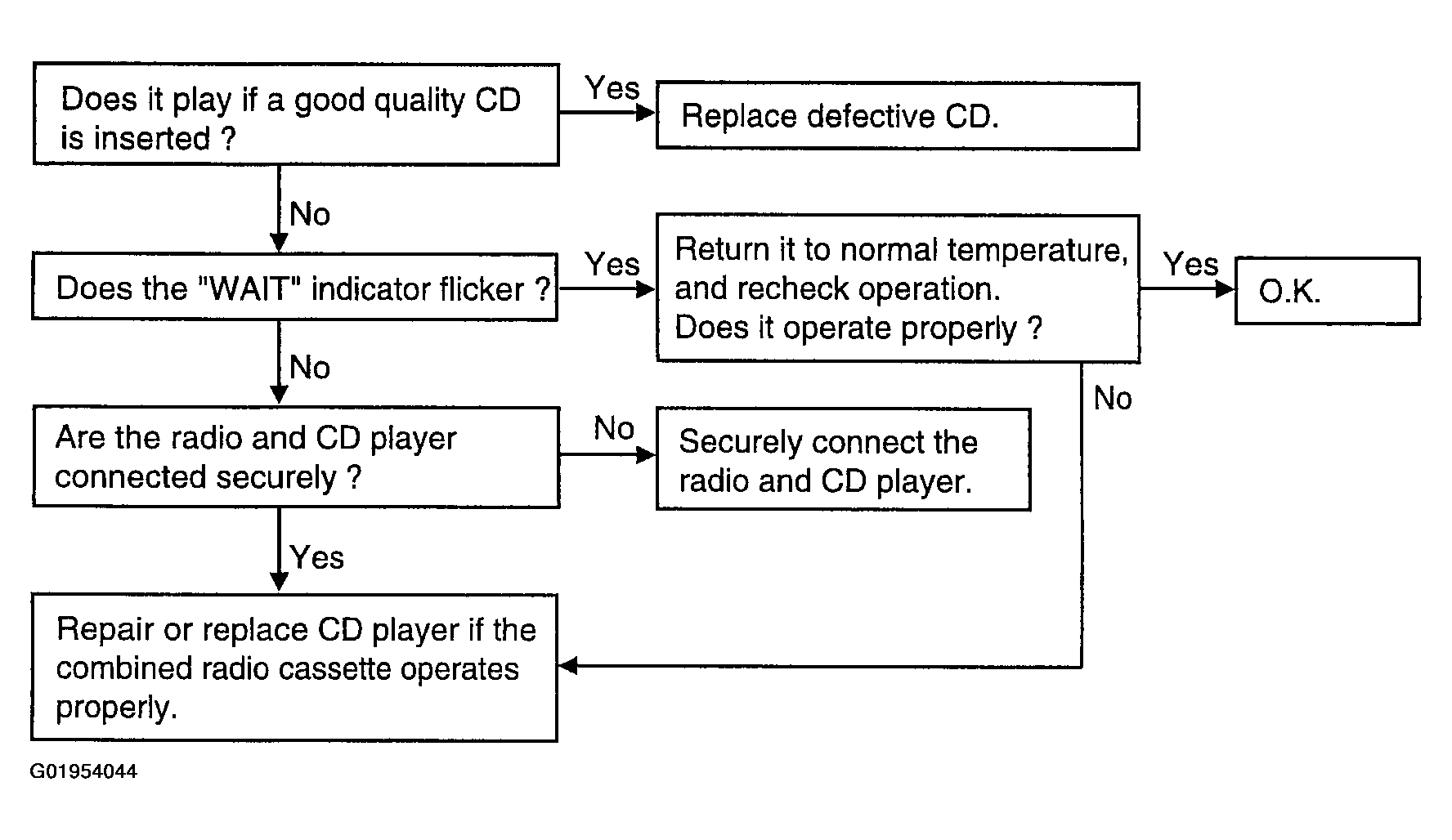

Fig 2: CD No Sound
Courtesy of KIA MOTORS AMERICA, INC.
CD SOUND SKIPS
1. Sound sometimes skips when parking.

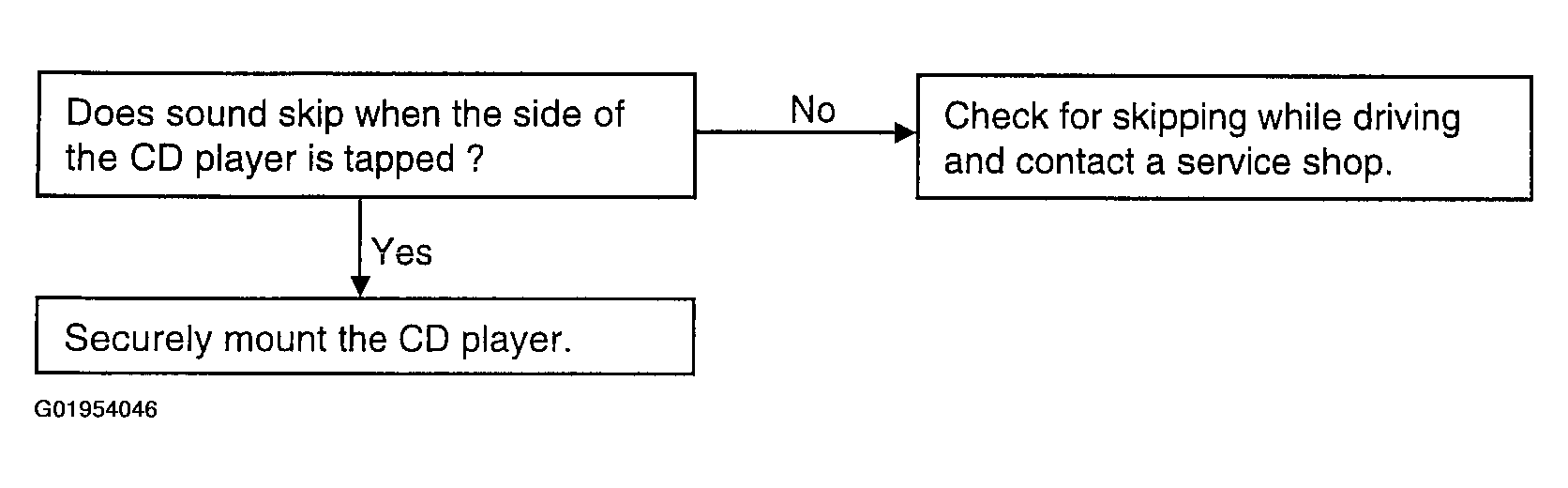

  Fig 3: Sound Sometimes Skips When Parking
  Courtesy of KIA MOTORS AMERICA, INC.
2. Sound sometimes skips when driving.
  (Stop vehicle, and check it.)

  (Check by using a CD which is free of scratches, dirt or other damage.)

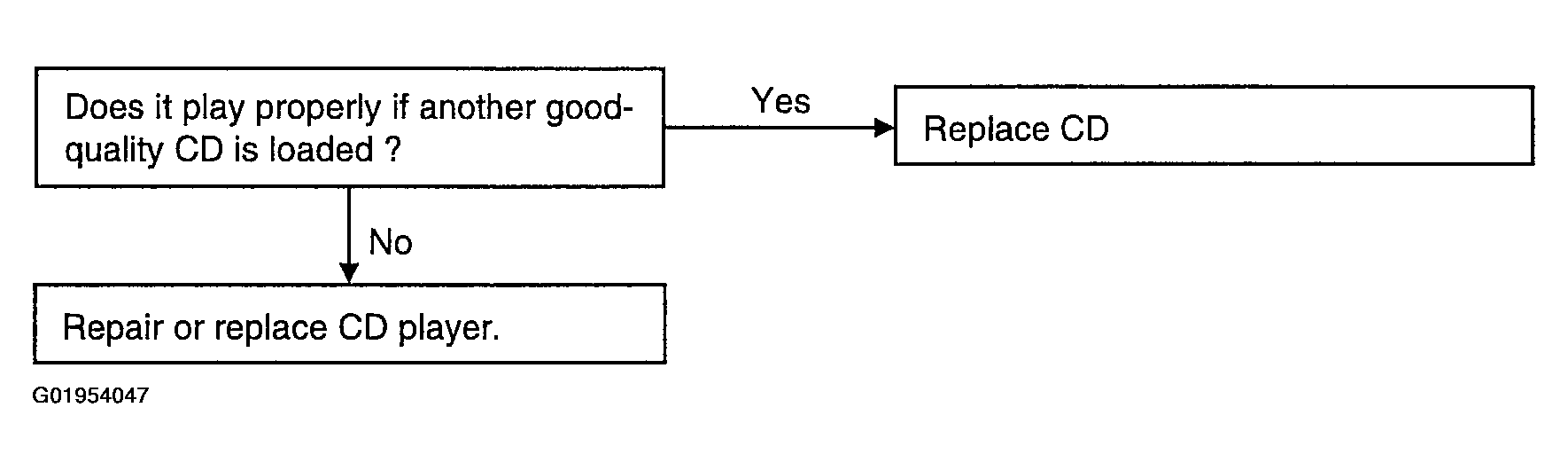

  Fig 4: Sound Sometimes Skips When Driving
  Courtesy of KIA MOTORS AMERICA, INC.
SOUND QUALITY IS POOR

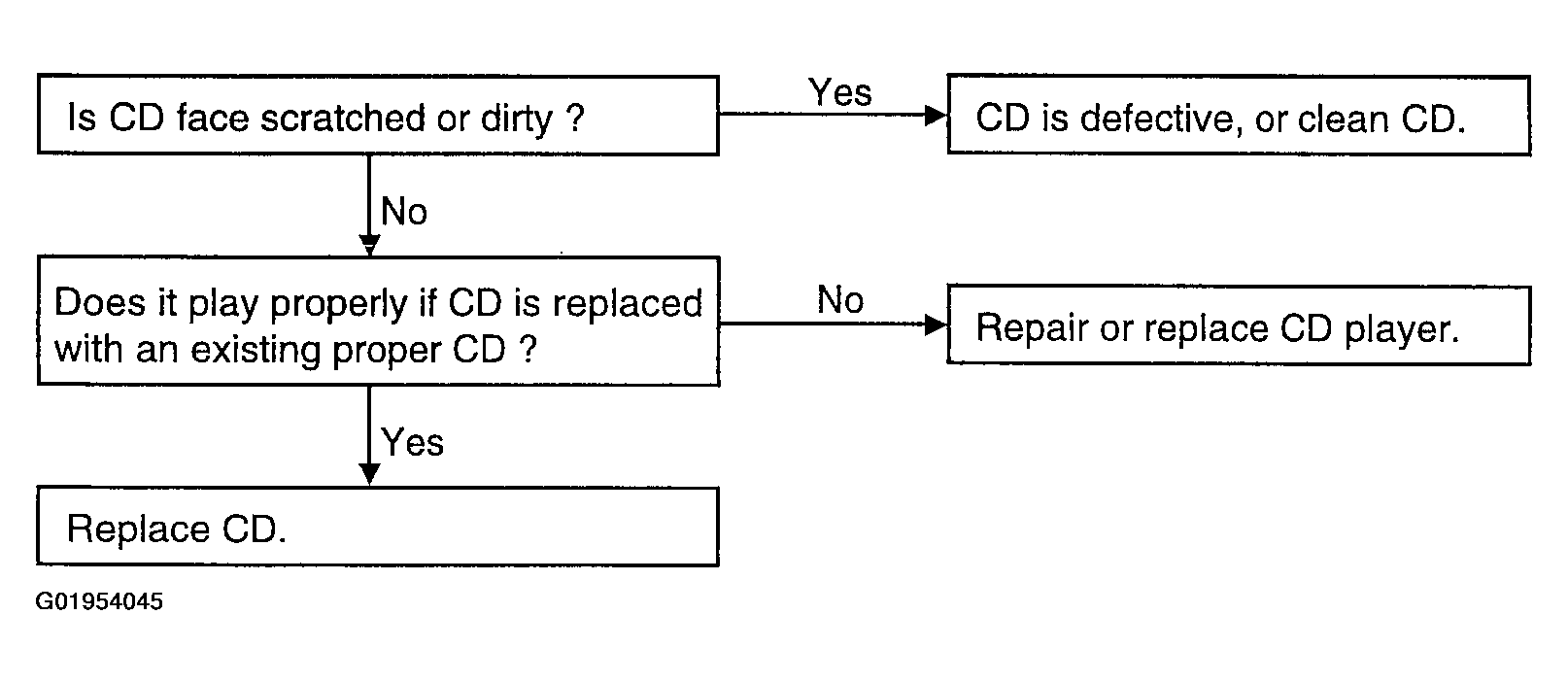

Fig 5: Sound Quality Is Poor
Courtesy of KIA MOTORS AMERICA, INC.
CD WILL NOT EJECT

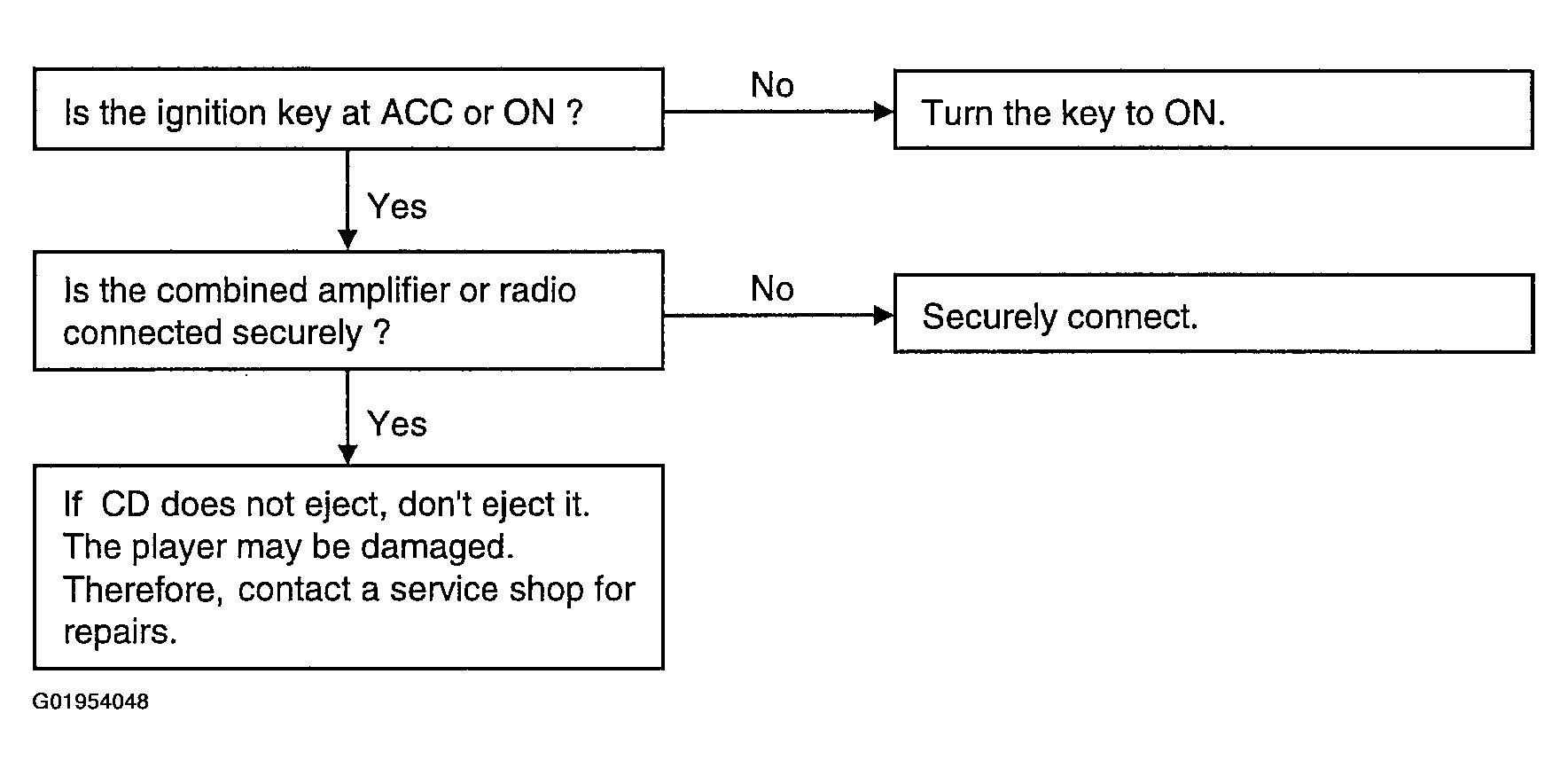

Fig 6: CD Will Not Eject
Courtesy of KIA MOTORS AMERICA, INC.
NO SOUND FROM ONE SPEAKER

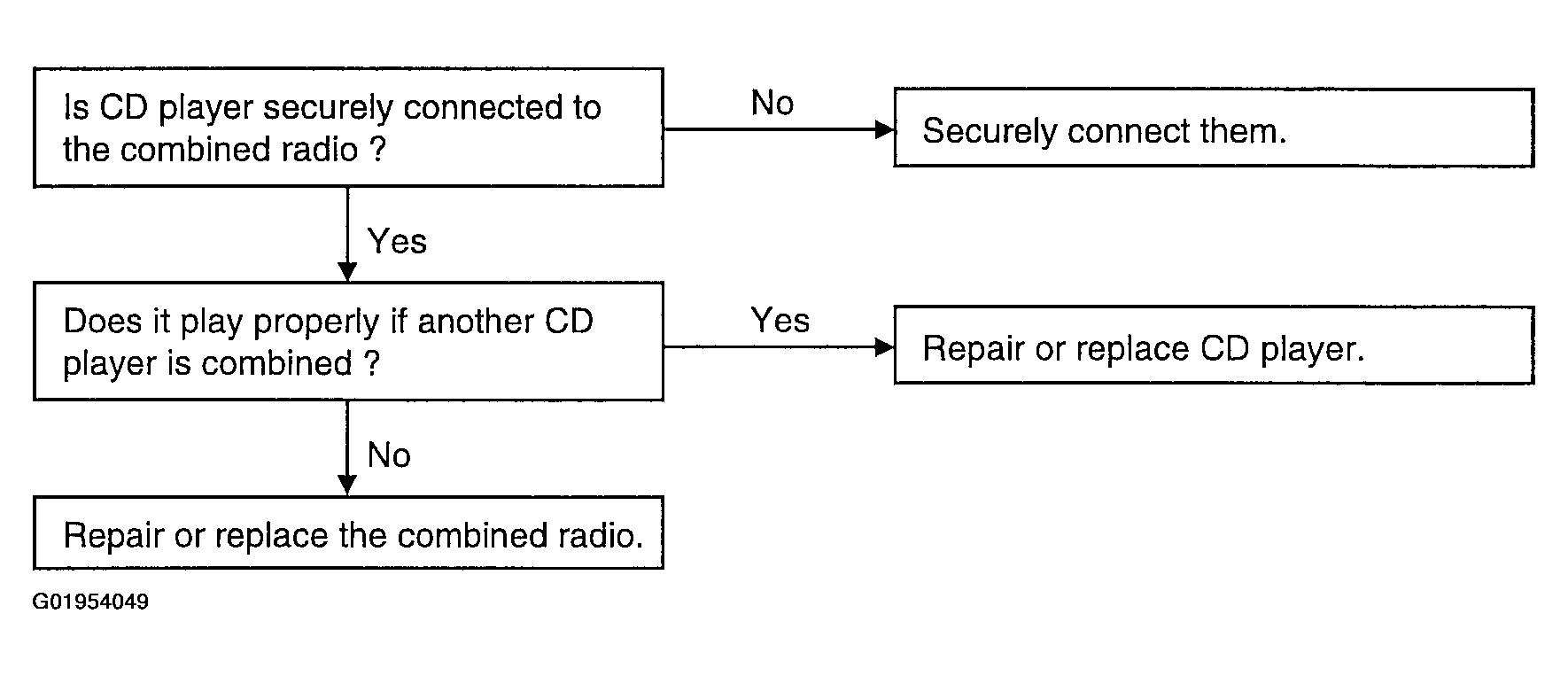

Fig 7: No Sound From One Speaker
Courtesy of KIA MOTORS AMERICA, INC.
