Chart 4

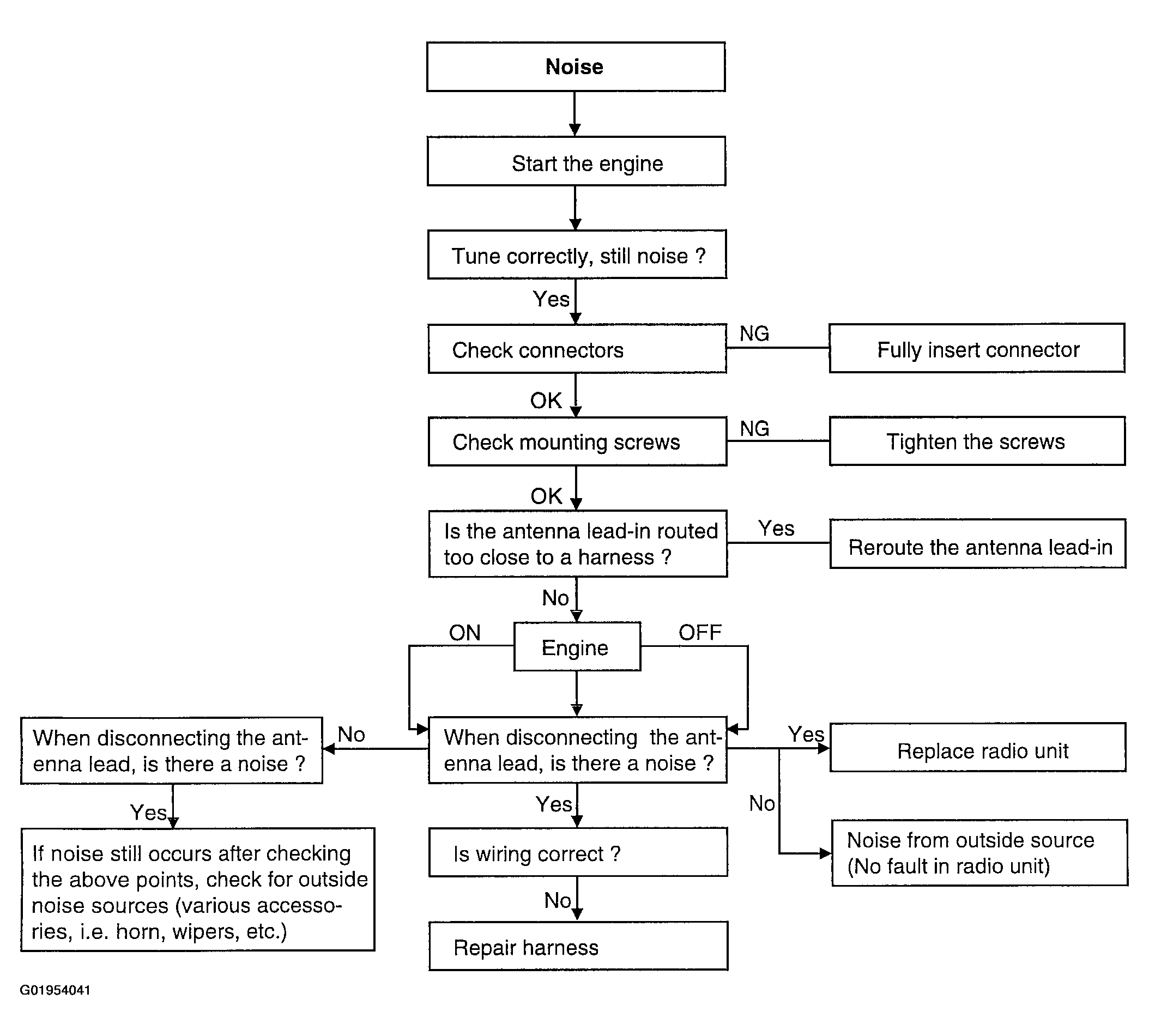

Fig 1: Radio Noise

G01954041

Courtesy of KIA MOTORS AMERICA, INC.

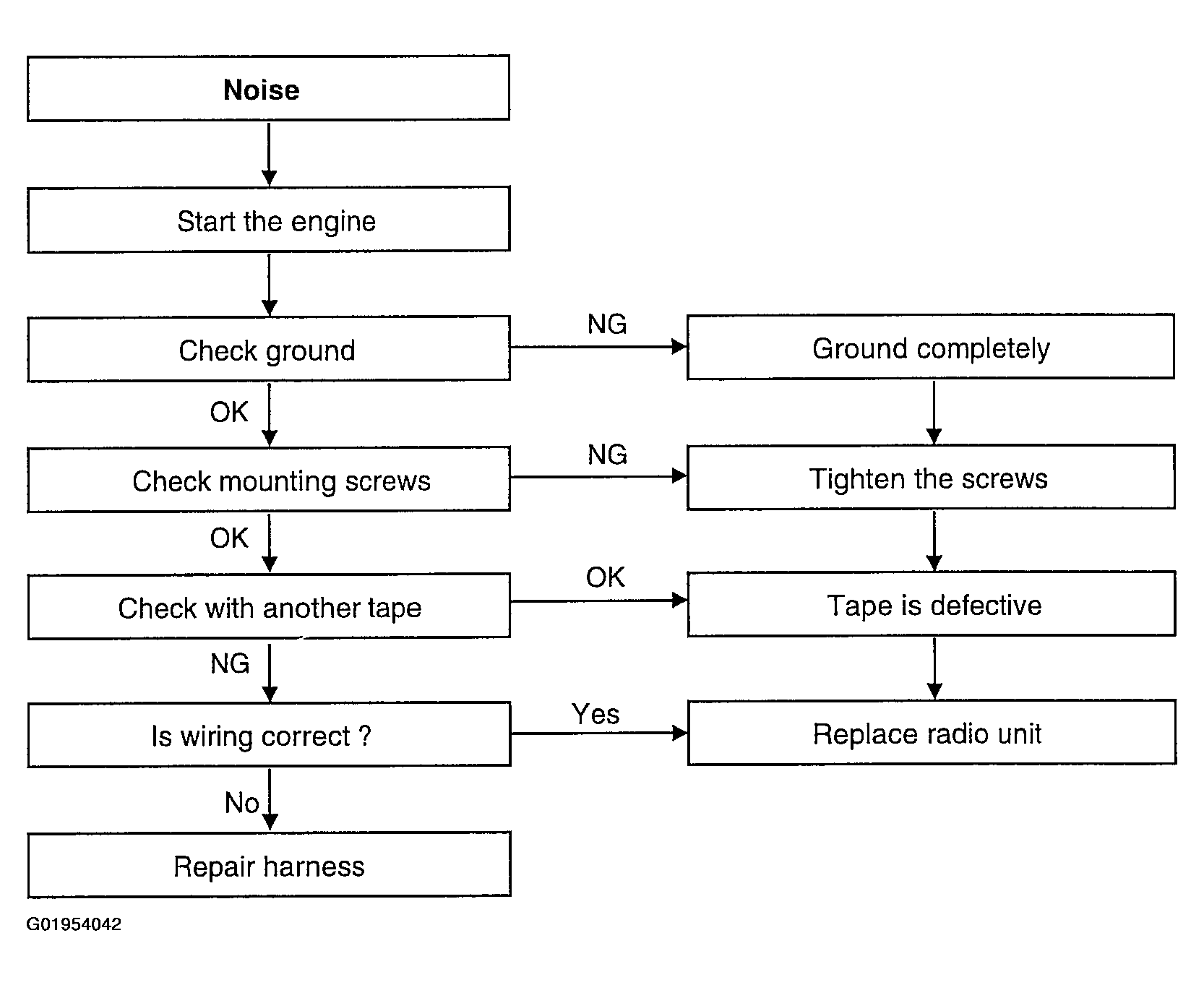

Fig 2: Tape Noise

G01954042

Courtesy of KIA MOTORS AMERICA, INC.
