Schematic Diagram

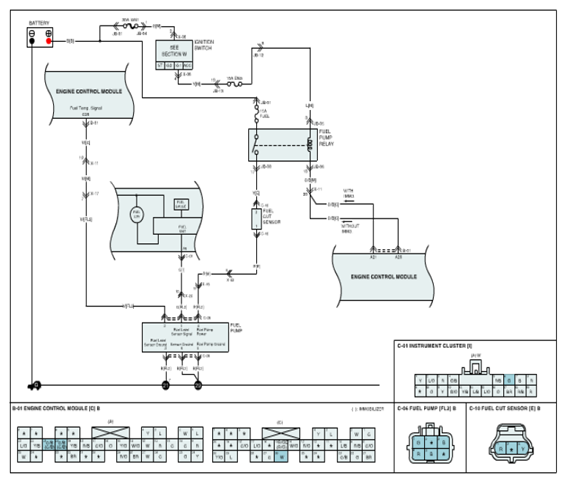

Fig 1: Engine Control Module Schematic Diagram

G07703327

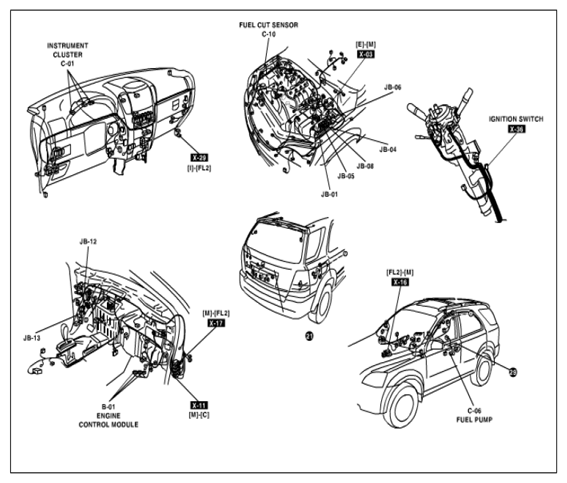

Fig 2: Identifying Instrument Cluster, Fuel Cut Sensor, Ignition Switch, Fuel Pump And Engine Control Module Location

G07703328
