Component Inspection

1. Specification:
   TEMPERATURE RESISTANCE REFERENCE CHART



   Temperature °C (°F)	-30	20	0	20	40	60	80	100	110
   Resistance (kΩ)	26.74	15.48	5.79	2.45	1.148	0.587	0.322	0.188	0.147
   Voltage (V)	4.39	4.17	3.48	2.56	1.68	1.04	0.63	0.39	0.31

   (Pull up resistance is Approx. 2.2 kΩ and above specification's error range is 2~3%.)

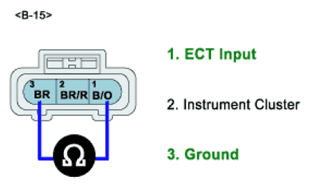

   Fig 1: Measuring Resistance Between Terminals 1 And 3 Of ECT Sensor Harness Connector B-15



YES

1. ECT sensor is OK.
2. Possibility of defective ECM. Temporarily test with a new ECM and check for proper operation. If problem is corrected, replace ECM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

NO

1. Test with a new ECT sensor and check for proper operation. If problem is corrected, replace it. And go to "VERIFICATION OF VEHICLE REPAIR " procedure.
