Ecu Side Connector: C-Connector

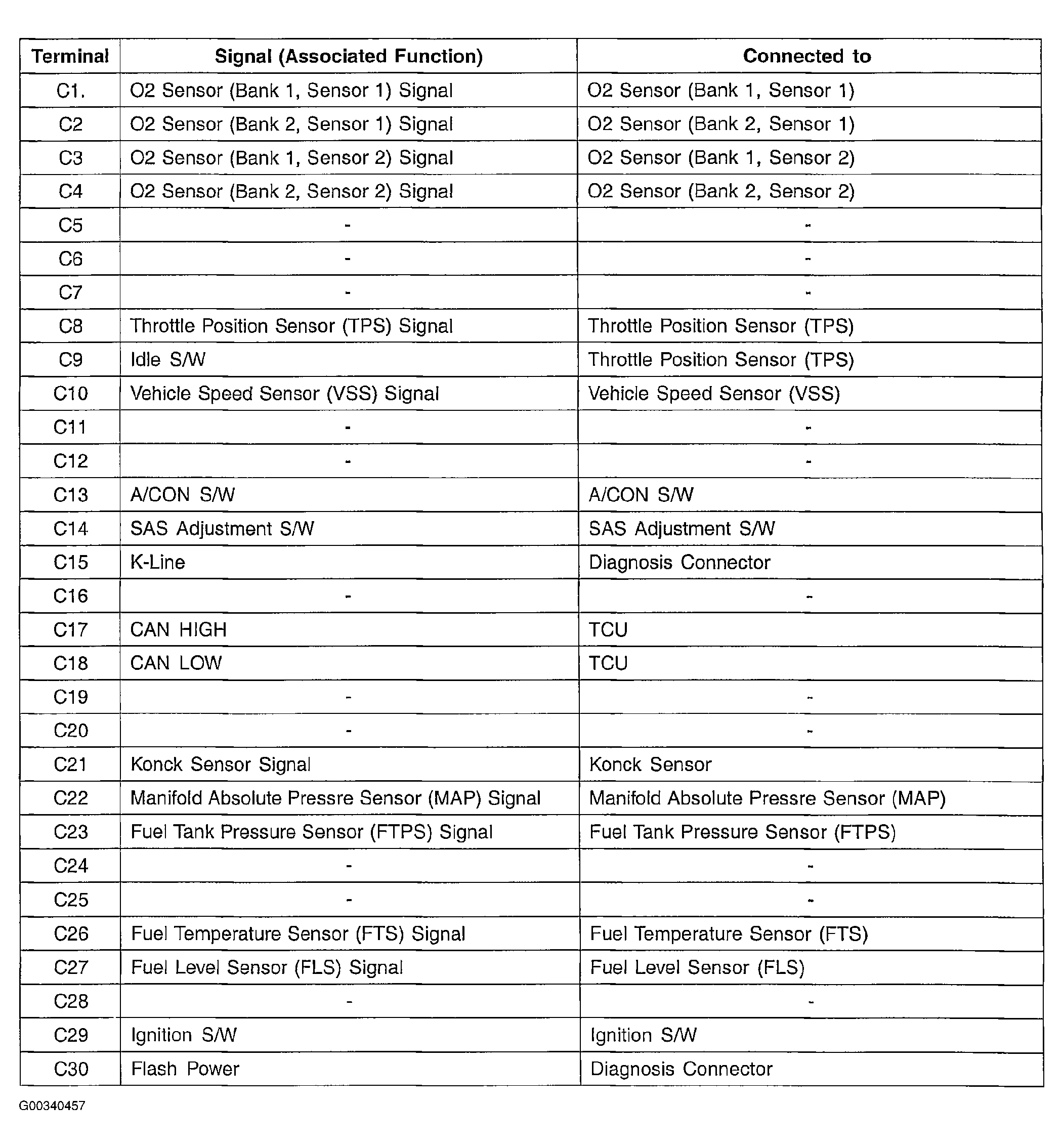

Fig 1: Identifying ECU C-Connector Terminal Identification

G00340457

Courtesy of KIA MOTORS AMERICA, INC.
