PCV Valve Operating

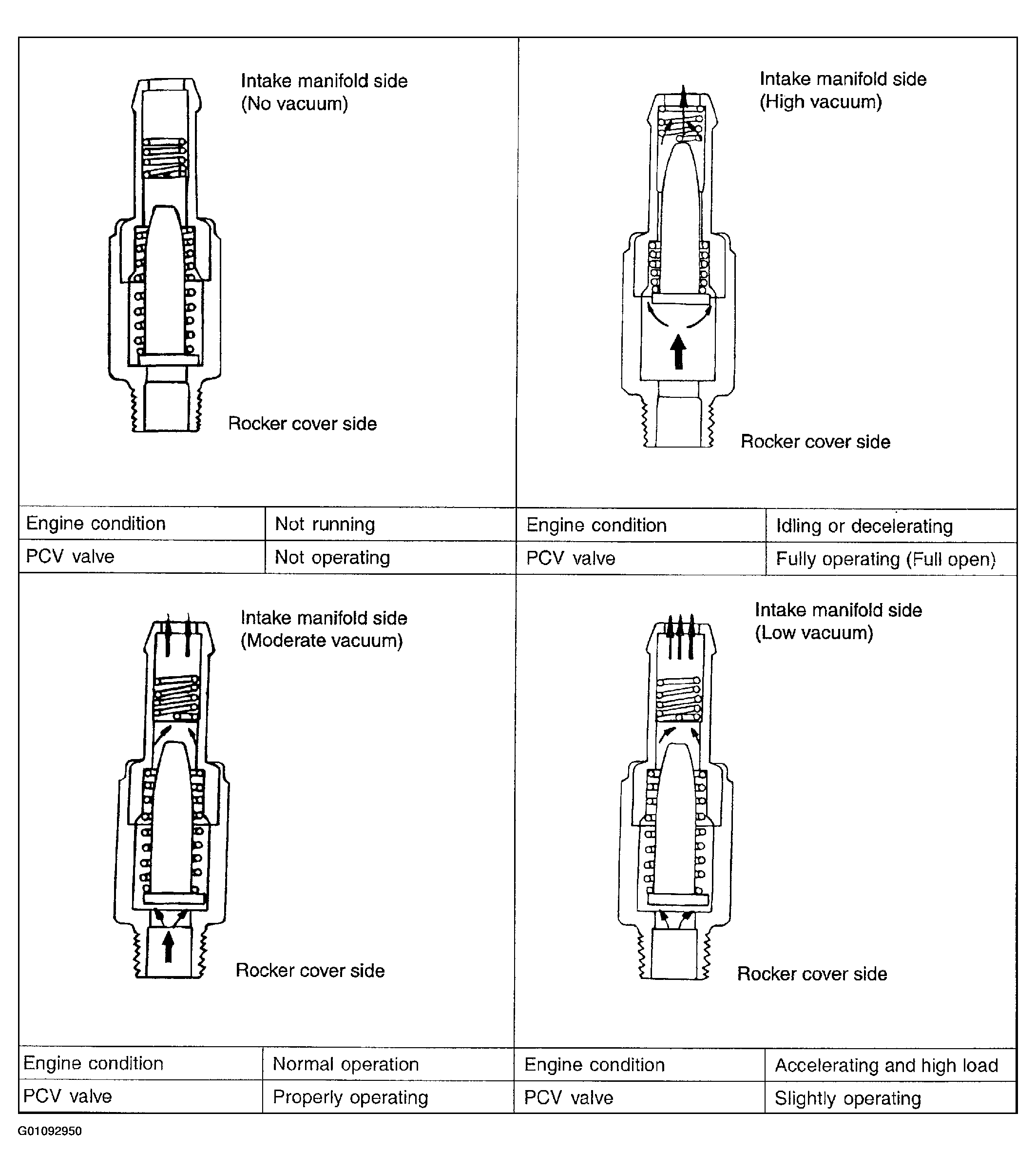

Fig 1: Illustrating PCV Valve Operation

G01092950

Courtesy of KIA MOTORS AMERICA, INC.
