Normal Fluid Pressure Specification Table

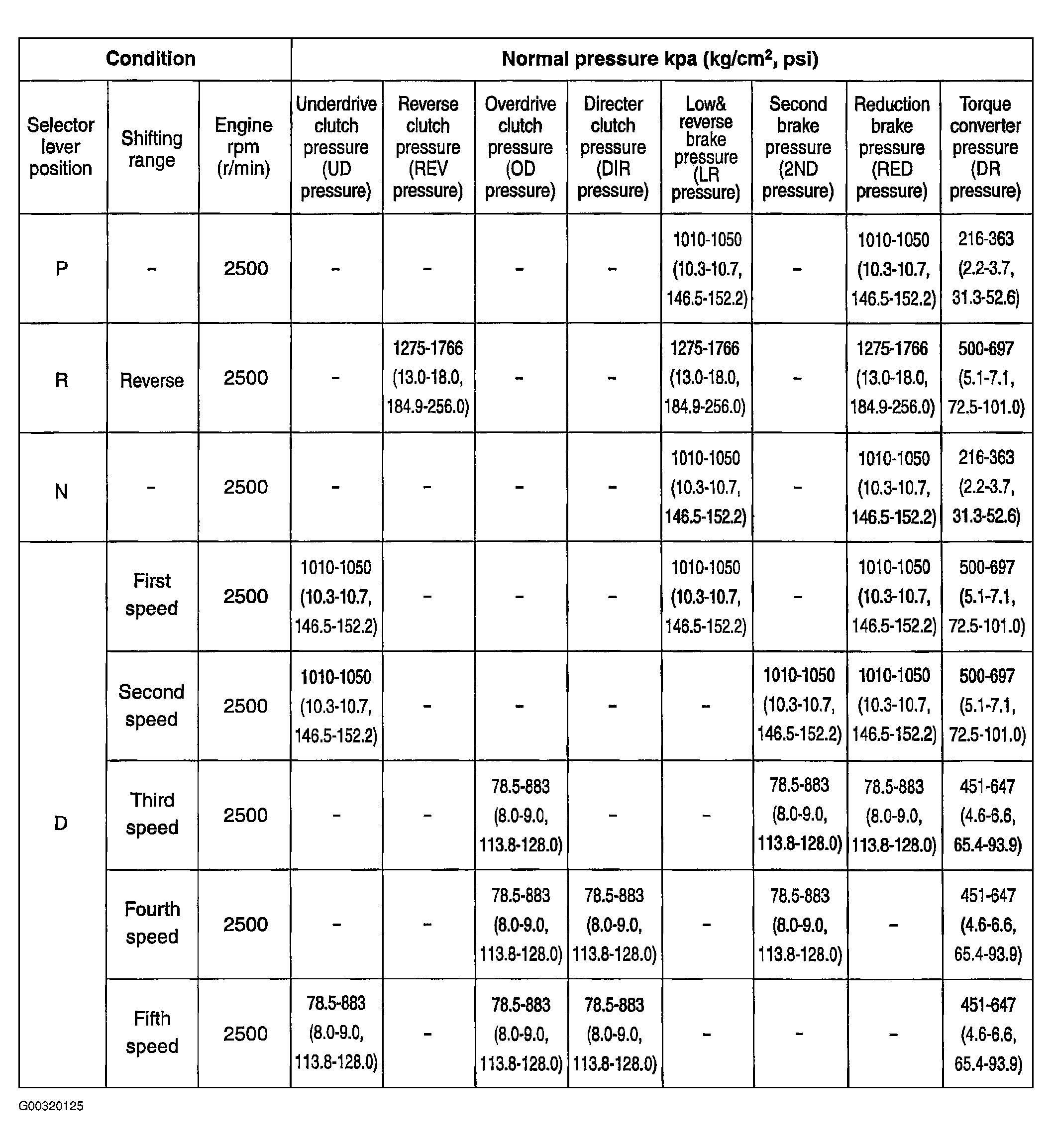

Fig 1: Normal Fluid Pressure Specification Table

G00320125

Courtesy of KIA MOTORS AMERICA, INC.
