Input/Output Chart

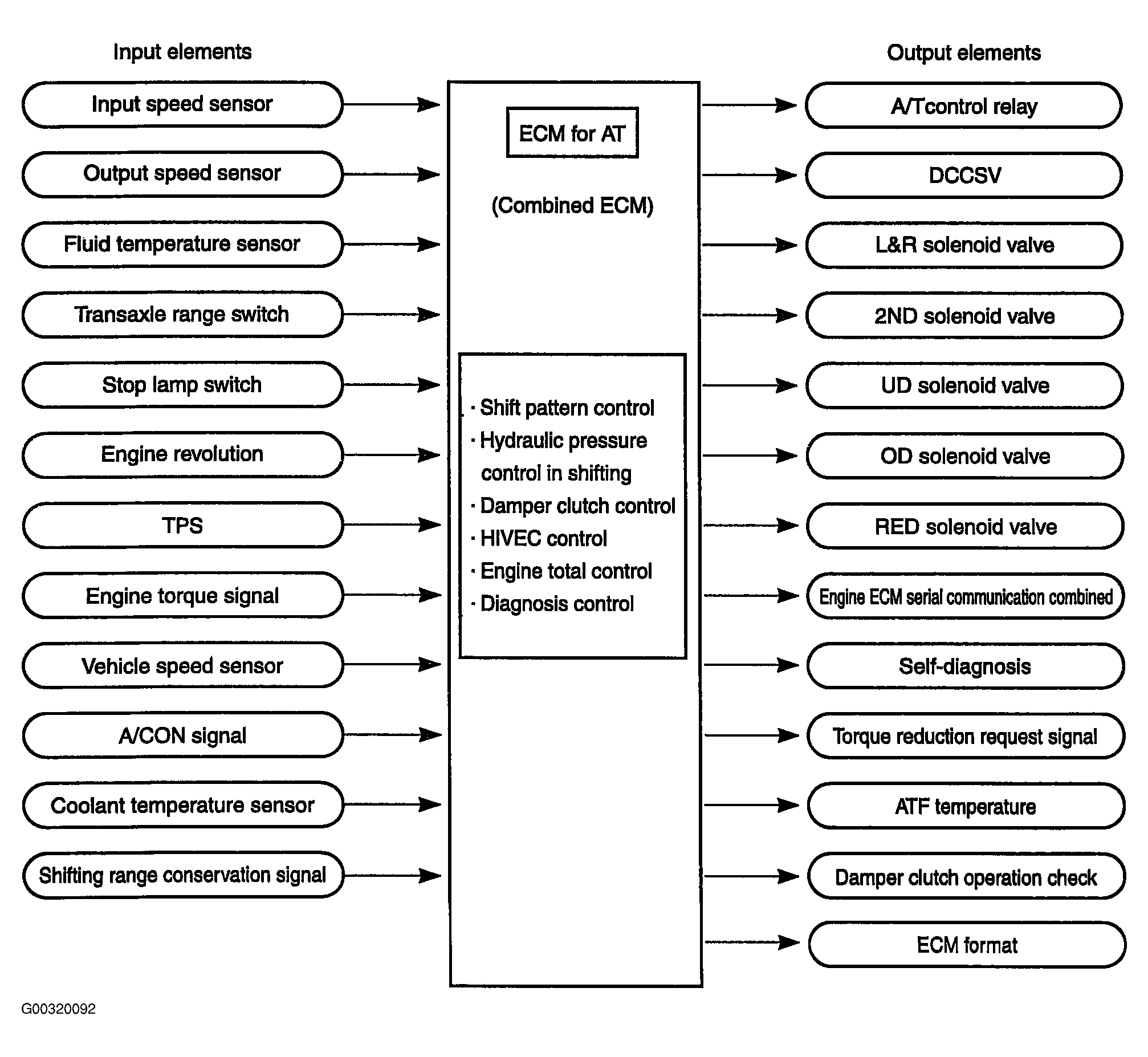

Fig 1: Electronic Control System Input/Output Chart

G00320092

Courtesy of KIA MOTORS AMERICA, INC.
