Input Shaft: Disassembly

  1. Remove the snap ring and the ball bearing using the special tool (09432-21300).

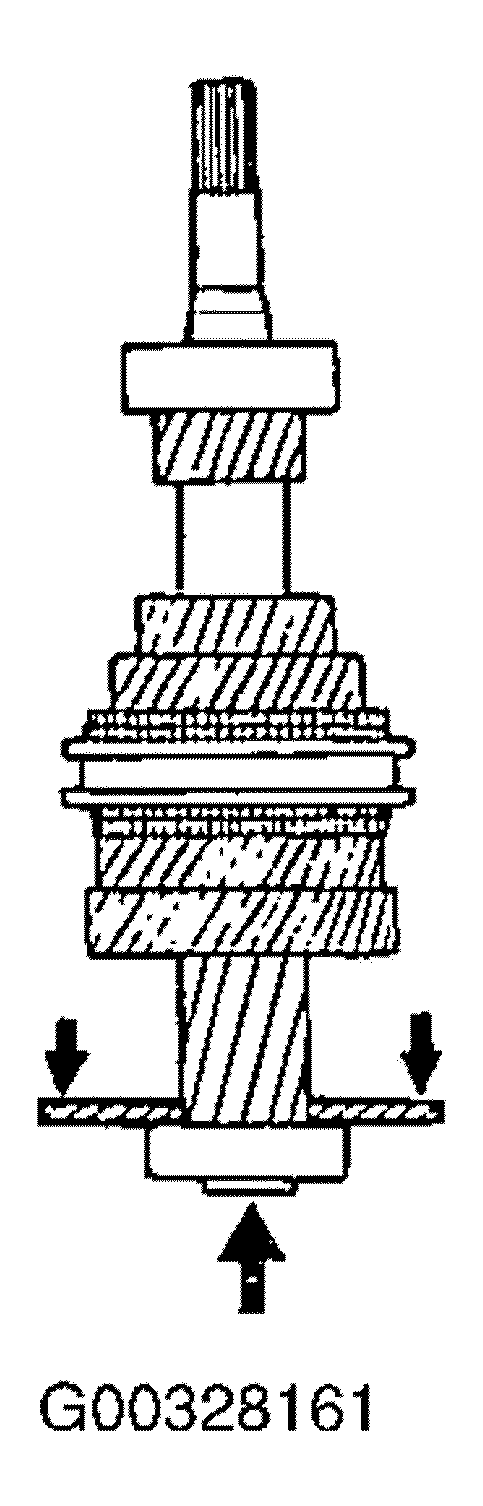

    Fig 1: Removing Snap Ring & Ball Bearing
    G00328161Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the stopper snap ring, snap ring, 5th and 4th speed gear, needle roller bearing, 4th speed gear sleeve, synchronizer ring (3rd & 4th), synchronizer spring (1st, 2nd, 3rd, 4th), synchronizer sleeve (3rd & 4th), 3rd speed gear and needle roller bearing.

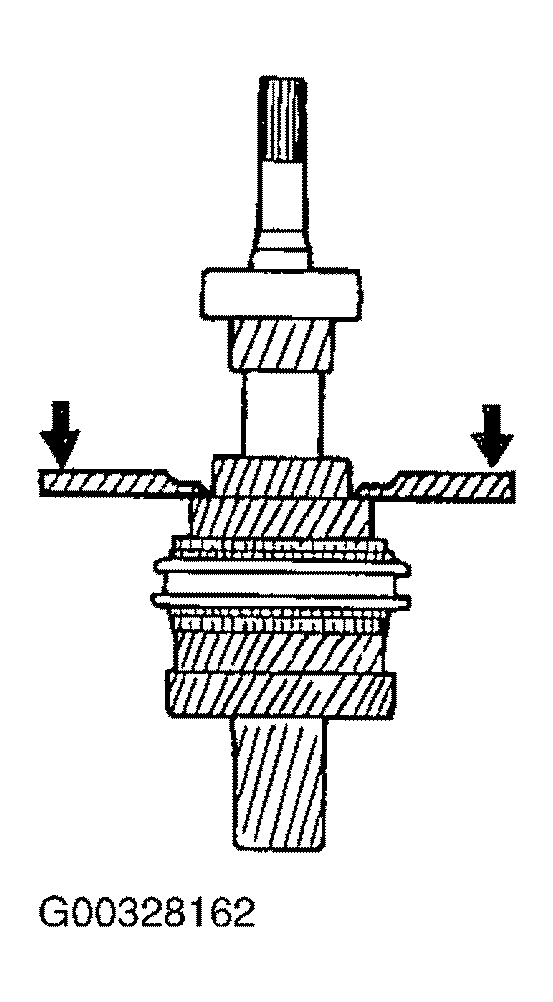

Fig 2: Removing Stopper Snap Ring
G00328162Courtesy of KIA MOTORS AMERICA, INC.
