Removal And Installation

  1. Disconnect the negative (-) battery terminal.
  2. Remove the lower crash pad. See GAUGES & INDICATORS .
  3. Remove the bolts holding the ETACS module and disconnect the connectors.

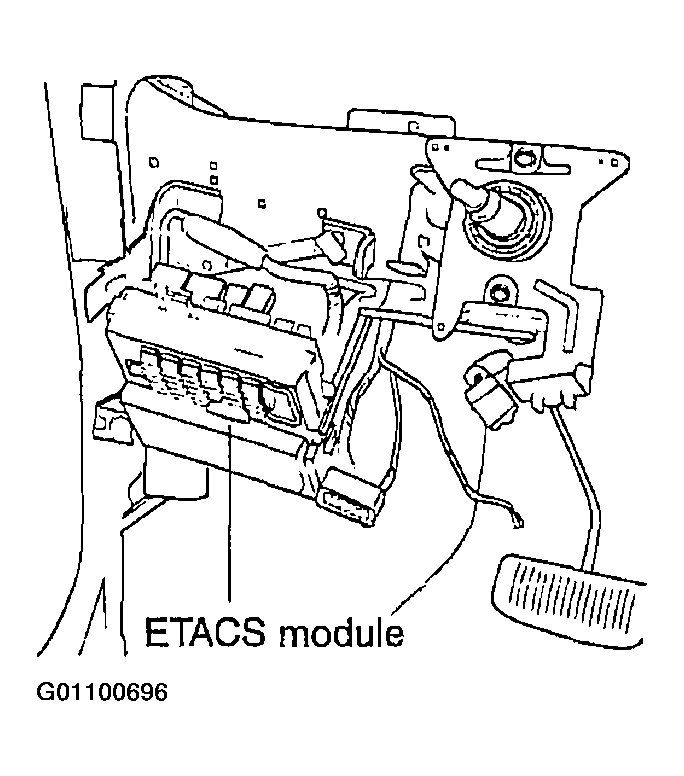

    Fig 1: Disconnecting ETACS Module Connectors
    G01100696Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse of removal.
