Rough Idle Or Engine Stalls

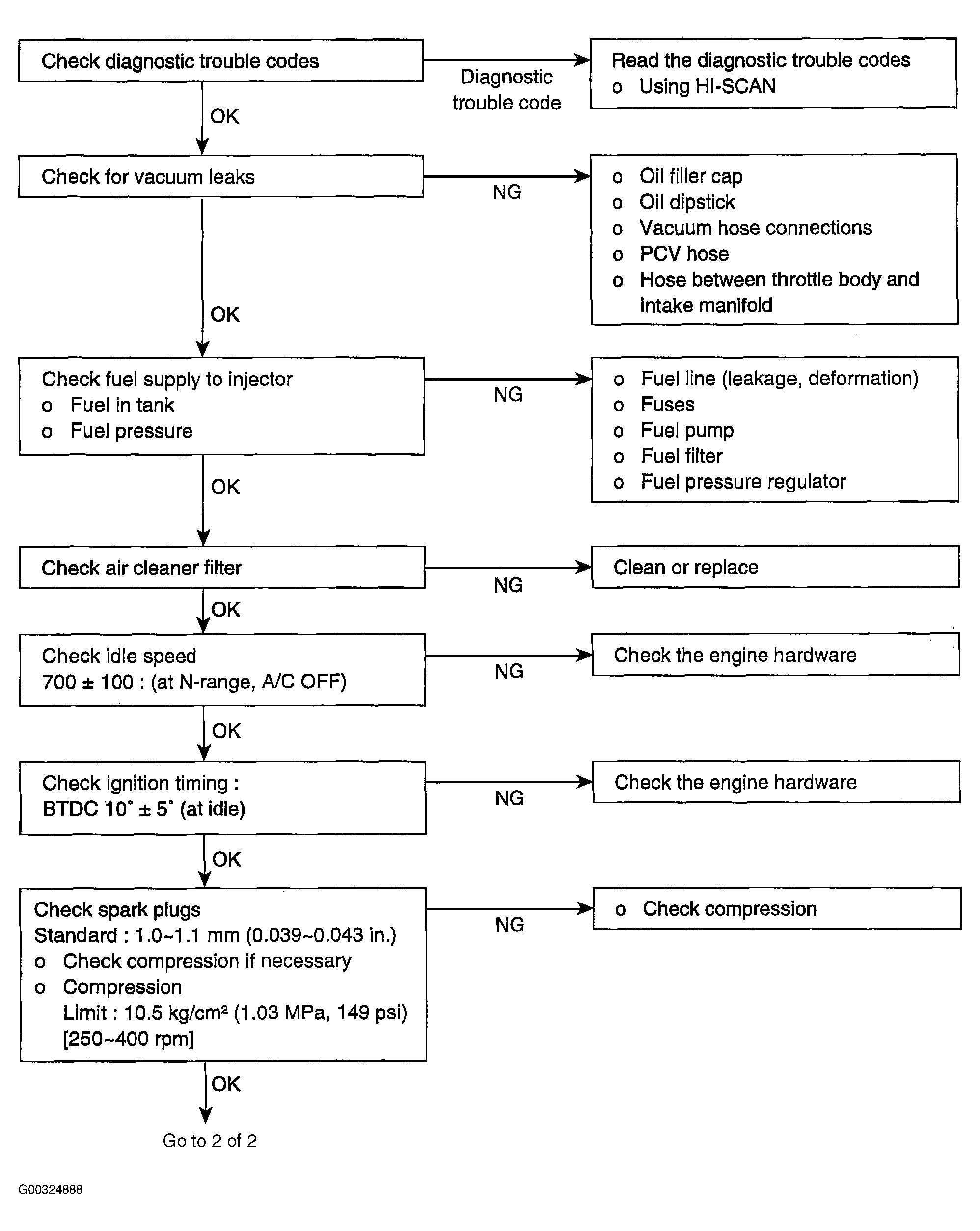

Fig 1: Rough Idle Or Engine Stalls Trouble Diagram (1 Of 2)
G00324888Courtesy of KIA MOTORS AMERICA, INC.

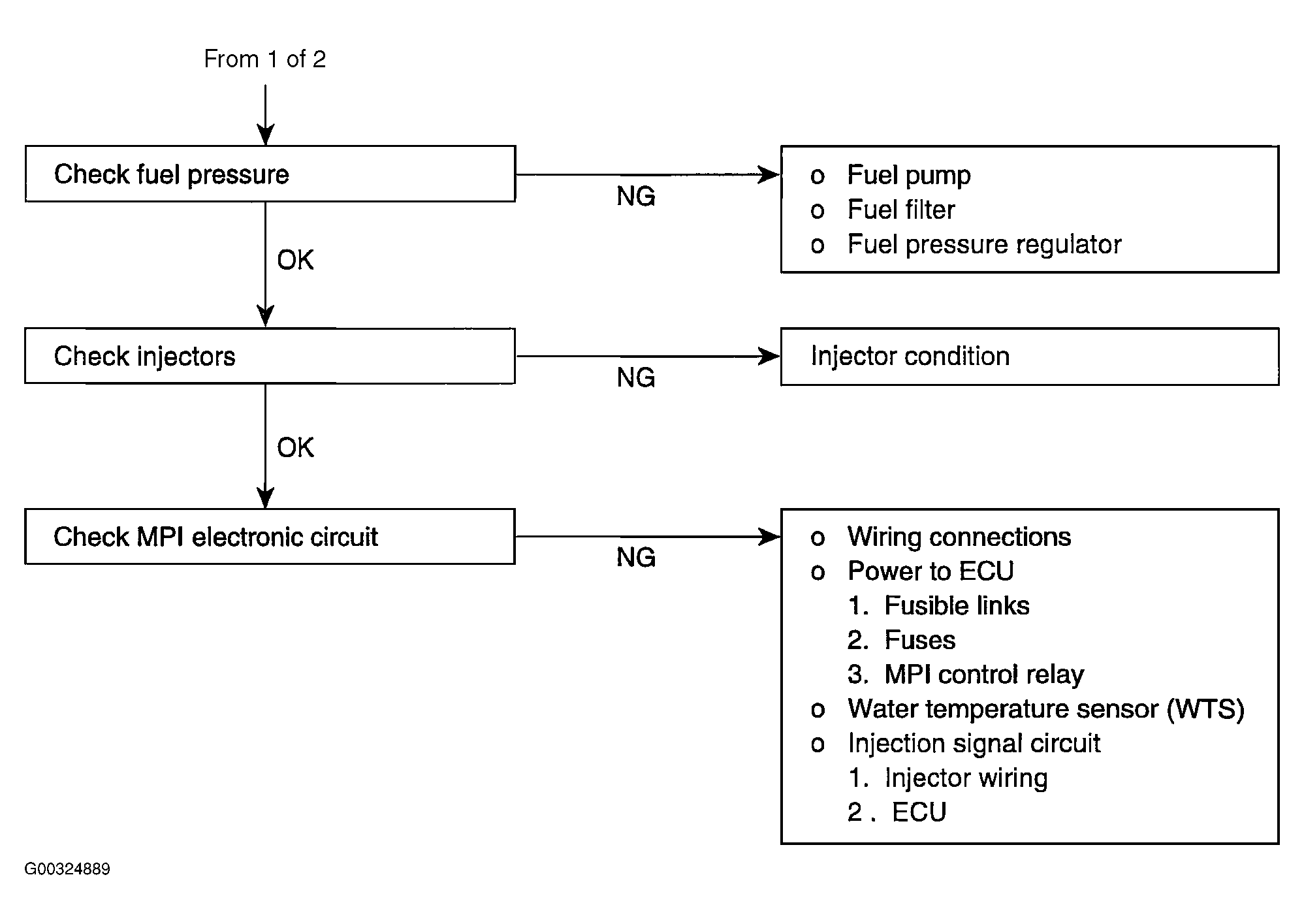

Fig 2: Rough Idle Or Engine Stalls Trouble Diagram (2 Of 2)
G00324889Courtesy of KIA MOTORS AMERICA, INC.
