Inspection Chart For Electronic Throttle Control (ETS) Trouble Code

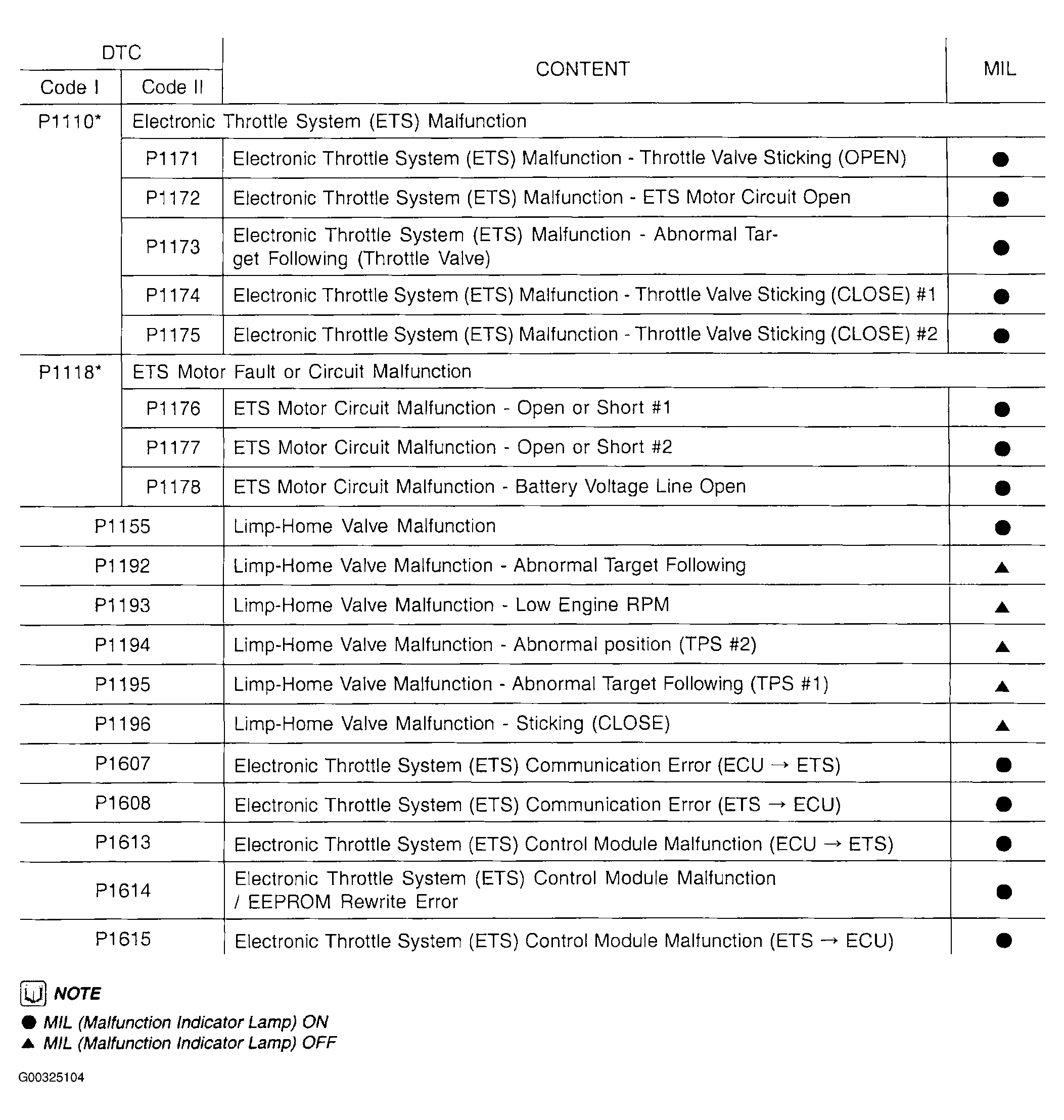

Fig 1: Illustrating ETS Trouble Code Chart

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Code I & II are displayed together when a corresponding trouble occurs.
