Check FLS

  1. Ignition "OFF"
  2. Disconnect FLS connector
  3. Check resistance between terminals "5" and "6" of FLS connector when fuel is added or subtracted.
    1. Specification
      FLS SPECIFICATION CHART

      FLS Normal Parameter
      Float position Full gauge 3/4 1/2 1/4 Empty gauge
      Resistance 8Ω 36Ω 66Ω 110Ω 200Ω
      Fuel volume 68l  52l  38l  23l  5l

      (Above specification's error range is ± 2Ω.)

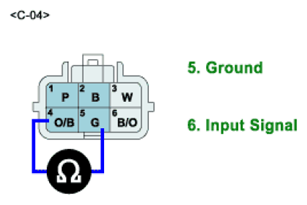

      Fig 1: Checking Resistance Between Terminals 5 And 6 Of FLS Connector
      G07330631
  4. Is the FLS normal?

    YES

    1. Substitute with a known-good PCM and check for proper operation. If the problem is corrected, replace PCM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    1. Substitute with a known-good FLS and check for proper operation. If the problem is corrected, replace FLS and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
