Muffler And Catalytic Converter: Notes

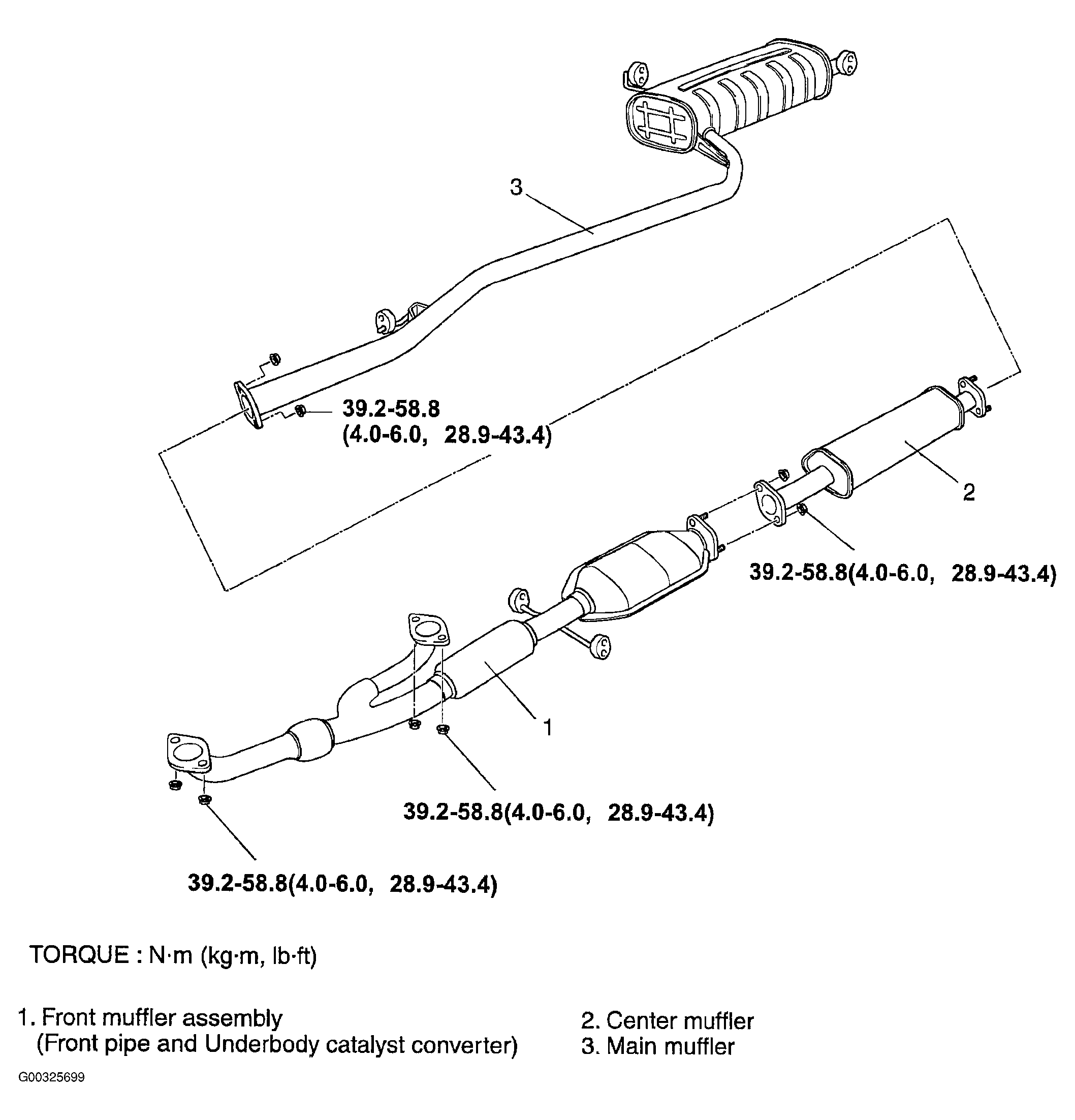

Fig 1: Identifying Exhaust System And Catalytic Converter Components

G00325699

Courtesy of KIA MOTORS AMERICA, INC.
