Anti-Lock Braking System Control Module HECU (Hydraulic And Electronic Control Unit): Removal

Remove HECU (Hydraulic and Electronic Control Unit) connector.

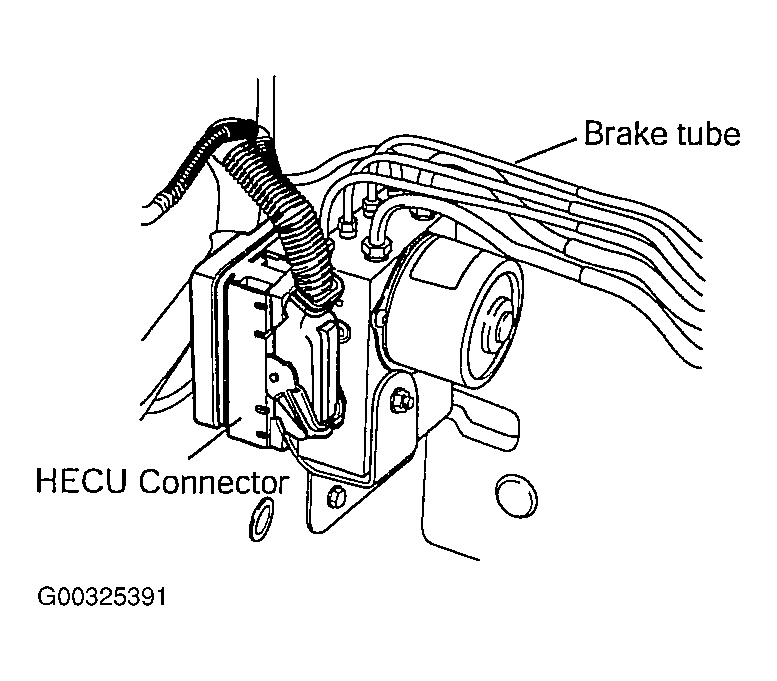

Fig 1: Removing HECU Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove brake tubes from HECU.

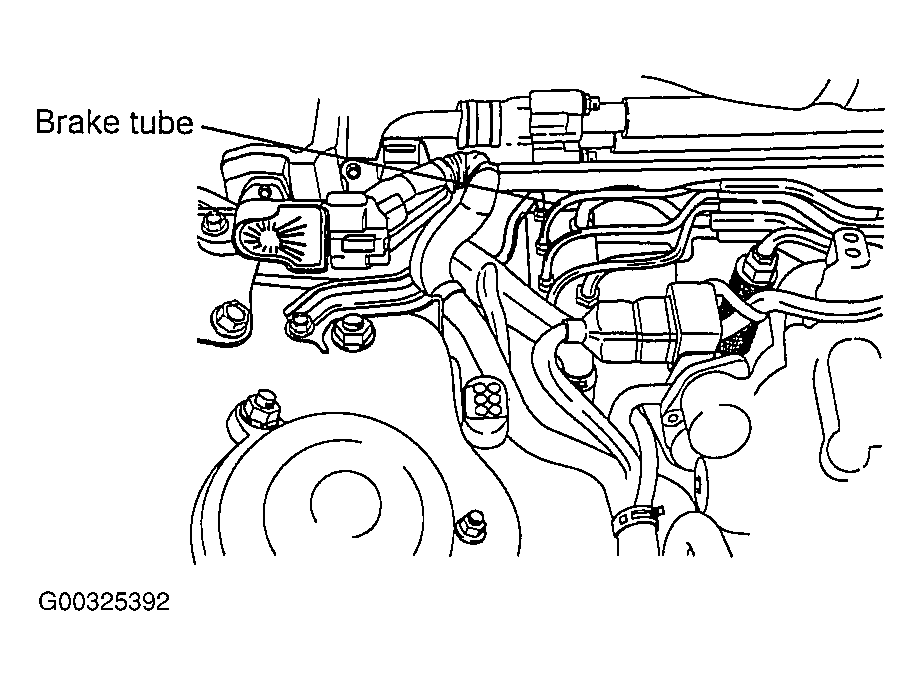

Fig 2: Removing Brake Tubes From HECU
Courtesy of KIA MOTORS AMERICA, INC.
Remove HECU after removing HECU bolt.

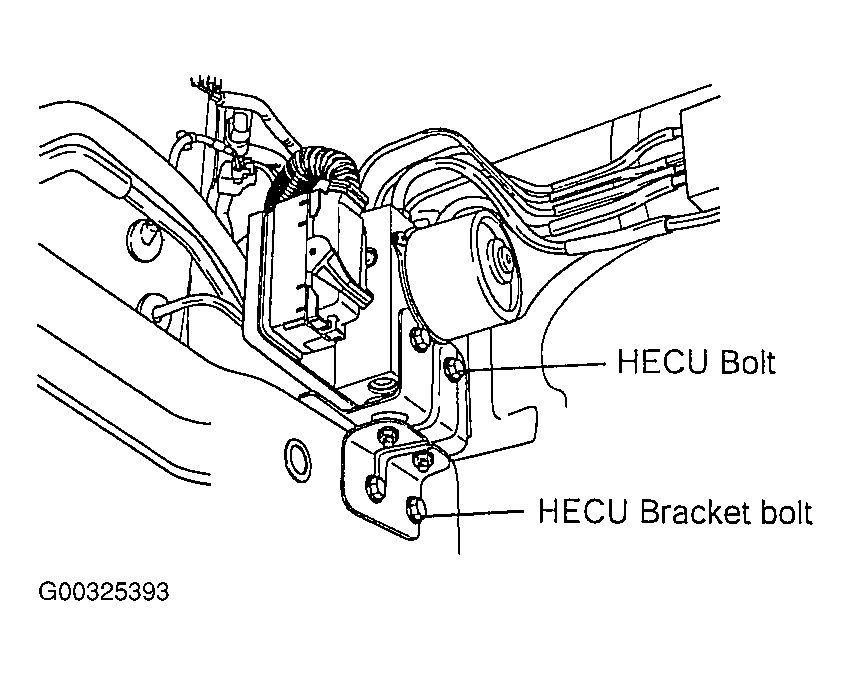

Fig 3: Removing HECU Bolts & HECU
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- Be careful to remove HECU as component is heavy.
- Never attempt to disassemble the HECU.
- The HECU must be transported and stored in an upright position and with the ports sealed.
Remove HECU bracket if necessary.
