Anti-Lock Brake System (Abs)
>>
Abs/TCS Control Unit
>>
HECU Connector Inspection & PINOUT
HECU Connector Inspection & PINOUT

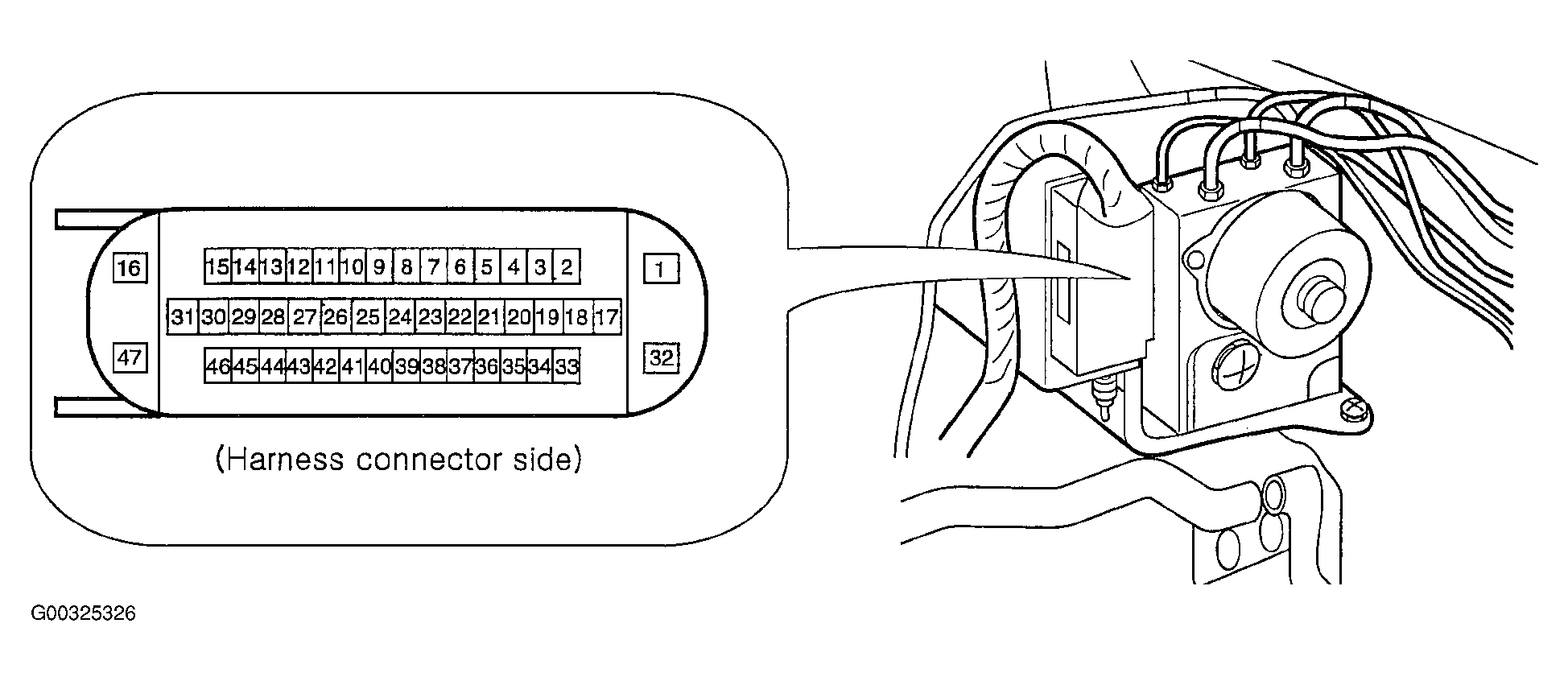

Fig 1: HECU Connector Inspection
Courtesy of KIA MOTORS AMERICA, INC.

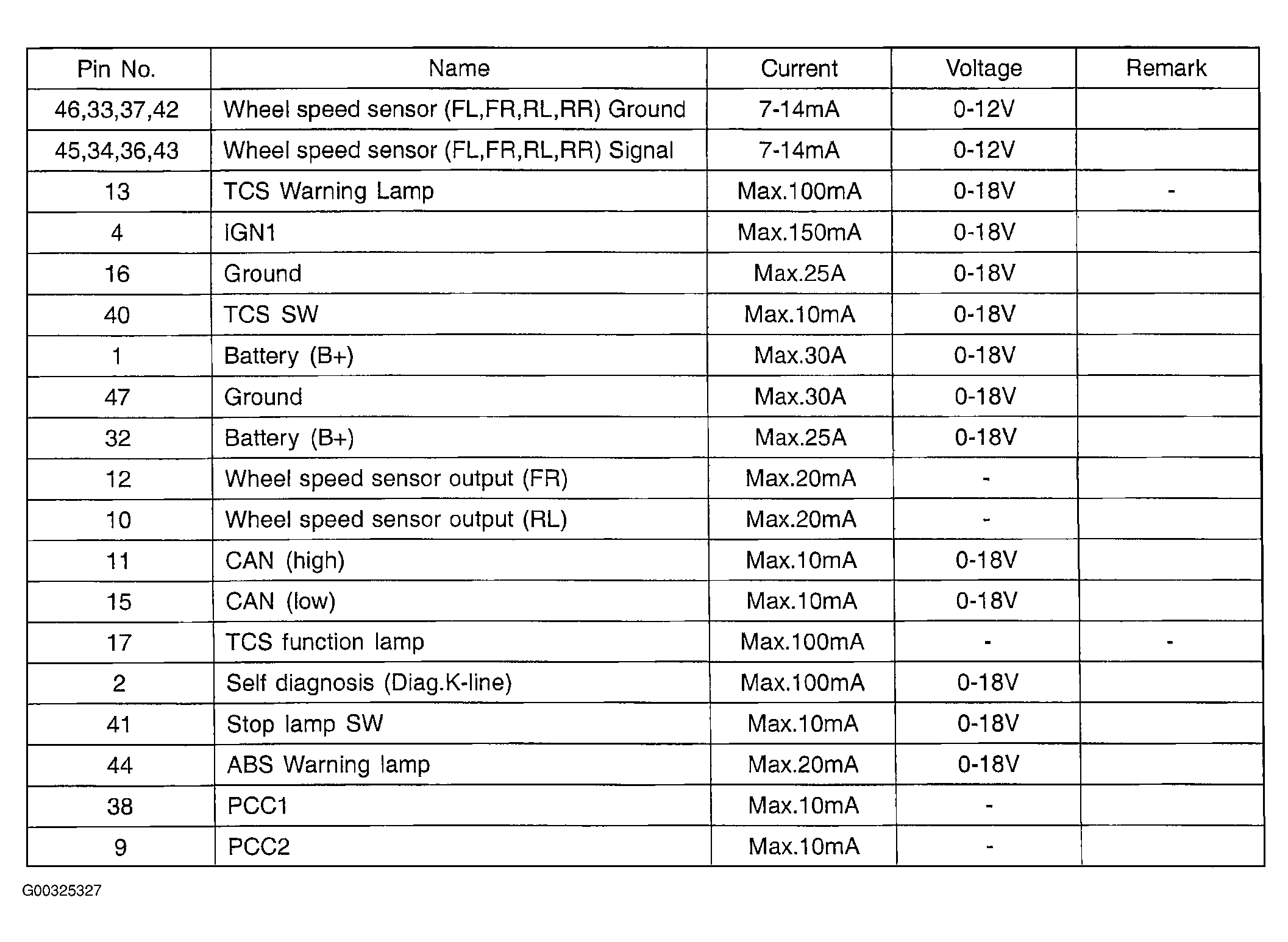

Fig 2: HECU Connector Pinout
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
