Main Control Switch: Removal

Loosen the tapping screws and lift up the air bag module.

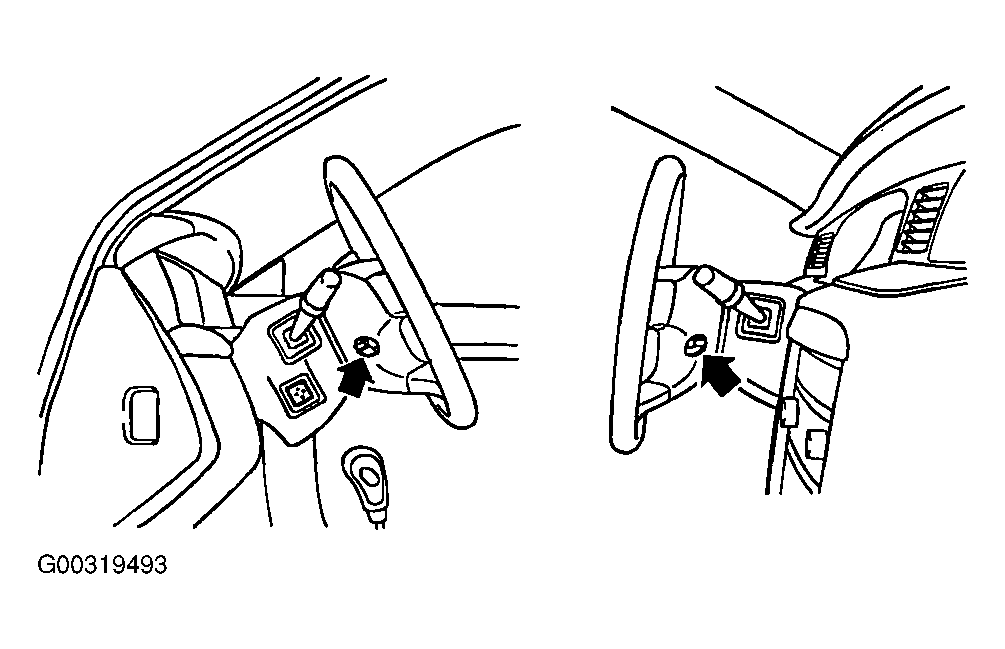

Fig 1: Removing Air Bag Module Screws
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connector from air bag module and remove the air bag module.

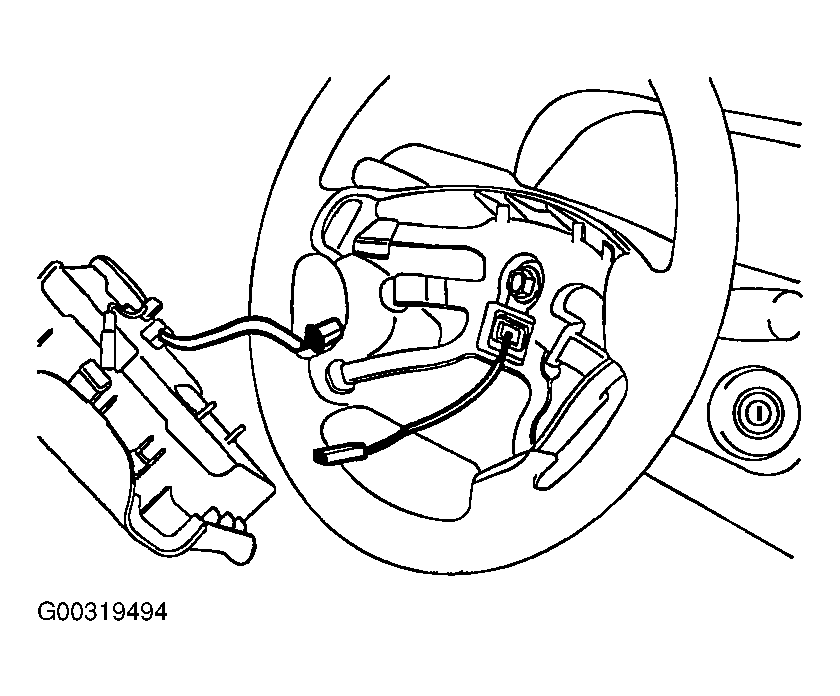

Fig 2: Removing Air Bag Module
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the control switch connector.

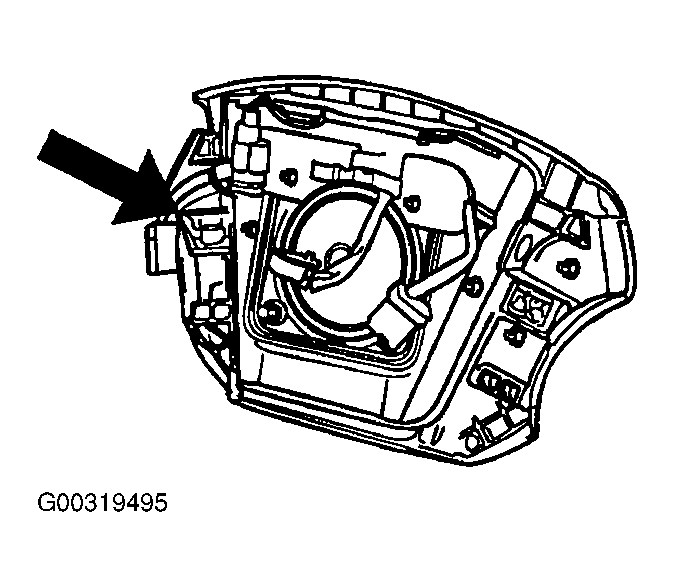

Fig 3: Disconnecting Control Switch
Courtesy of KIA MOTORS AMERICA, INC.
Remove the control switch with screw.
