Home >> Kia >> 2003 >> Spectra Base, Standard >> Repair and Diagnosis >> Transmission >> Clutch System >> General >> Symptom-Related Diagnostic Procedure

Symptom-Related Diagnostic Procedure

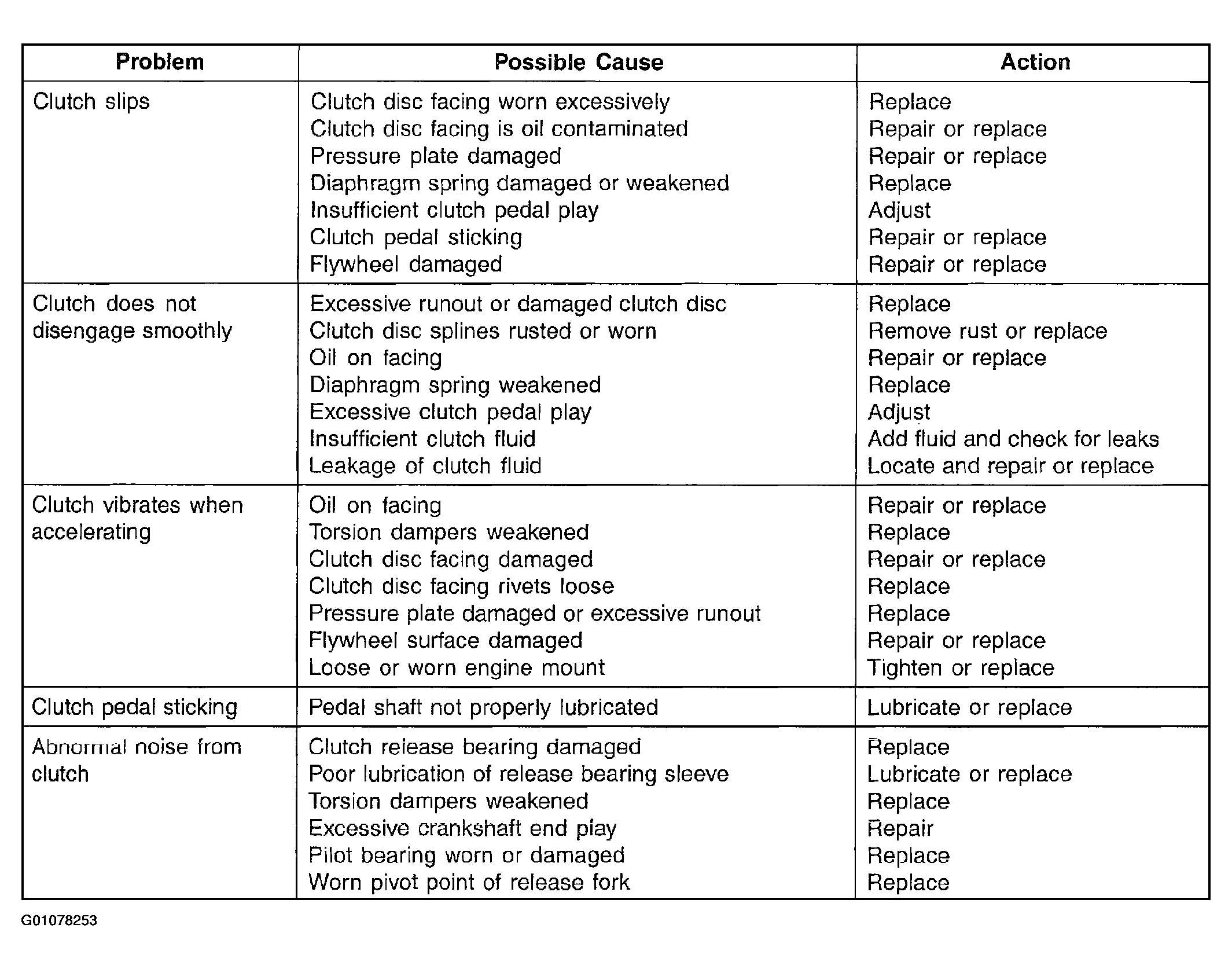

Fig 1: Illustrating Symptom-Related Diagnostic Procedure

G01078253

Courtesy of KIA MOTORS AMERICA, INC.
