Air Bag Module (Drive Side) And Clock Spring: Removal

WARNING: This page is about a different car, the 2005 Kia Spectra5, 2005 Kia Spectra, and 2004 Kia Spectra. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Turn the front wheel to the straight-ahead position when removing/Installing the Driver Airbag or Clockspring.
  • Prior to installing the clockspring, set the clockspring on NEUTRAL position and after turning the front wheels to the straight-ahead position, install the clockspring to the column switch. If the mating mark of the clockspring is not properly aligned, the steering wheel may not completely rotate during a turn, or the flat cable within the clockspring may be broken obstructing normal operation of the SRS and possibly leading to serious injury to the vehicle's driver.
  • Never attempt to disassemble or repair the airbag module or clockspring. If faulty, replace it.
  • Do not drop the airbag module or clockspring or allow contact with water, grease or oil. Replace it if a dent, crack, deformation or rust is detected.
  • The airbag module should be stored on a flat surface and placed so that the pad surface is facing upward. Do not place anything on top of it.
  • Do not expose the air bag module to temperatures over 93°C (200°F).
  • After deployment of an airbag, replace the clockspring with a new one.
  • Wear gloves and safety glasses when handing an air bag that has been deployed.
  • An undeployed airbag module should only be disposed of in accordance with the procedures mentioned in the restraints information.
  • When you disconnect the air bag module-clockspring connector, take care not to apply excessive force.
  • The removed air bag module should be stored in a clean, dry place.
  1. Disconnect the negative (-) cable from battery and wait for at least three minutes.
    Fig 1: Disconnecting Negative Cable From Battery
    G06151599Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove ignition key from the vehicle.
  3. Unscrew the DAB mounting bolts (A).
    Fig 2: Identifying DAB Mounting Bolts
    G06151600Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the DAB connectors (Stage #1 and #2).

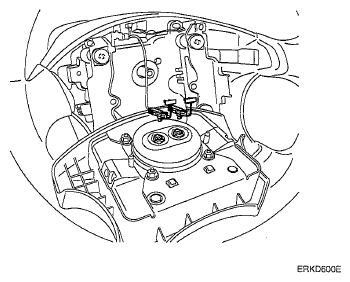

    Fig 3: Identifying DAB Connectors
    G06151601Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the Driver Airbag (DAB) module from the steering wheel.
    Fig 4: Identifying Driver Airbag (DAB) Module
    G06151602Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: The removed airbag module should be stored in a clean, dry place with the pad cover face up.
  6. Remove the switch connector (A) and the steering-wheel lock nut (B).
    Fig 5: Identifying Switch Connector And Steering-Wheel Lock Nut
    G06151603Courtesy of KIA MOTORS AMERICA, INC.
  7. After setting the steering shaft to the mark on wheel, remove the steering wheel with the SST (09561-11002).
    CAUTION: Don't strike the steering wheel with a hammer or other device. Damage to the steering wheel or components could occur.
    Fig 6: Removing Steering Wheel With SST (09561-11002)
    G06151604Courtesy of KIA MOTORS AMERICA, INC.
  8. Unscrew the three bolts (A) and remove the column shroud.
    Fig 7: Identifying Column Shroud Bolts
    G06151605Courtesy of KIA MOTORS AMERICA, INC.
  9. Disconnect the connectors on the clockspring (A) and the multi-function switch (B).
    Fig 8: Identifying Multi-Function Switch And Connectors
    G06151606Courtesy of KIA MOTORS AMERICA, INC.
  10. Unscrew the three bolts (A) and remove the multifunction switch (B).
    Fig 9: Identifying Multifunction Switch Bolts
    G06151607Courtesy of KIA MOTORS AMERICA, INC.
  11. Remove the clockspring from the multi-function switch.
