General
>>
Special Service Tools
Special Service Tools

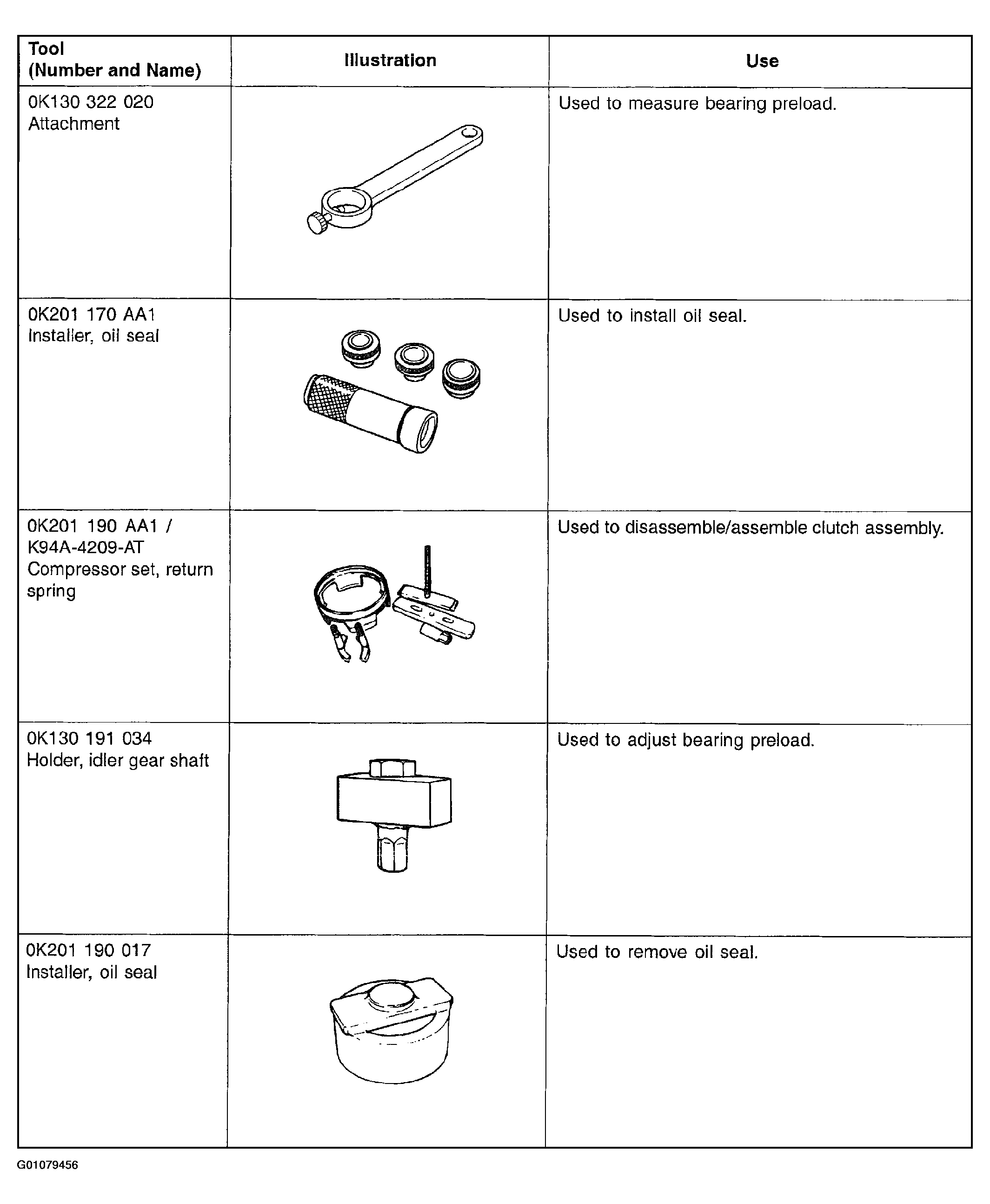

Fig 1: Illustrating Special Service Tools (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

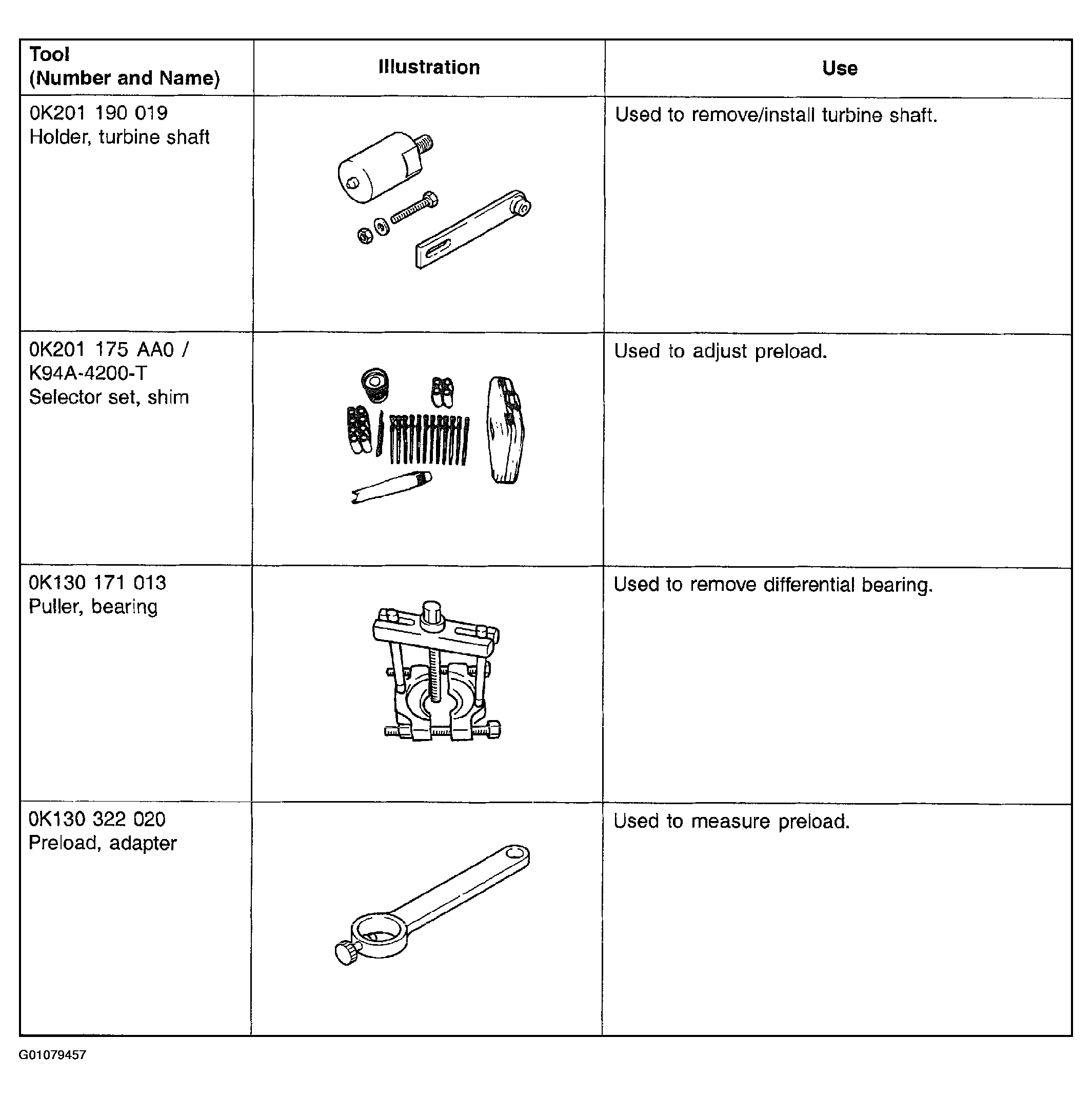

Fig 2: Illustrating Special Service Tools (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

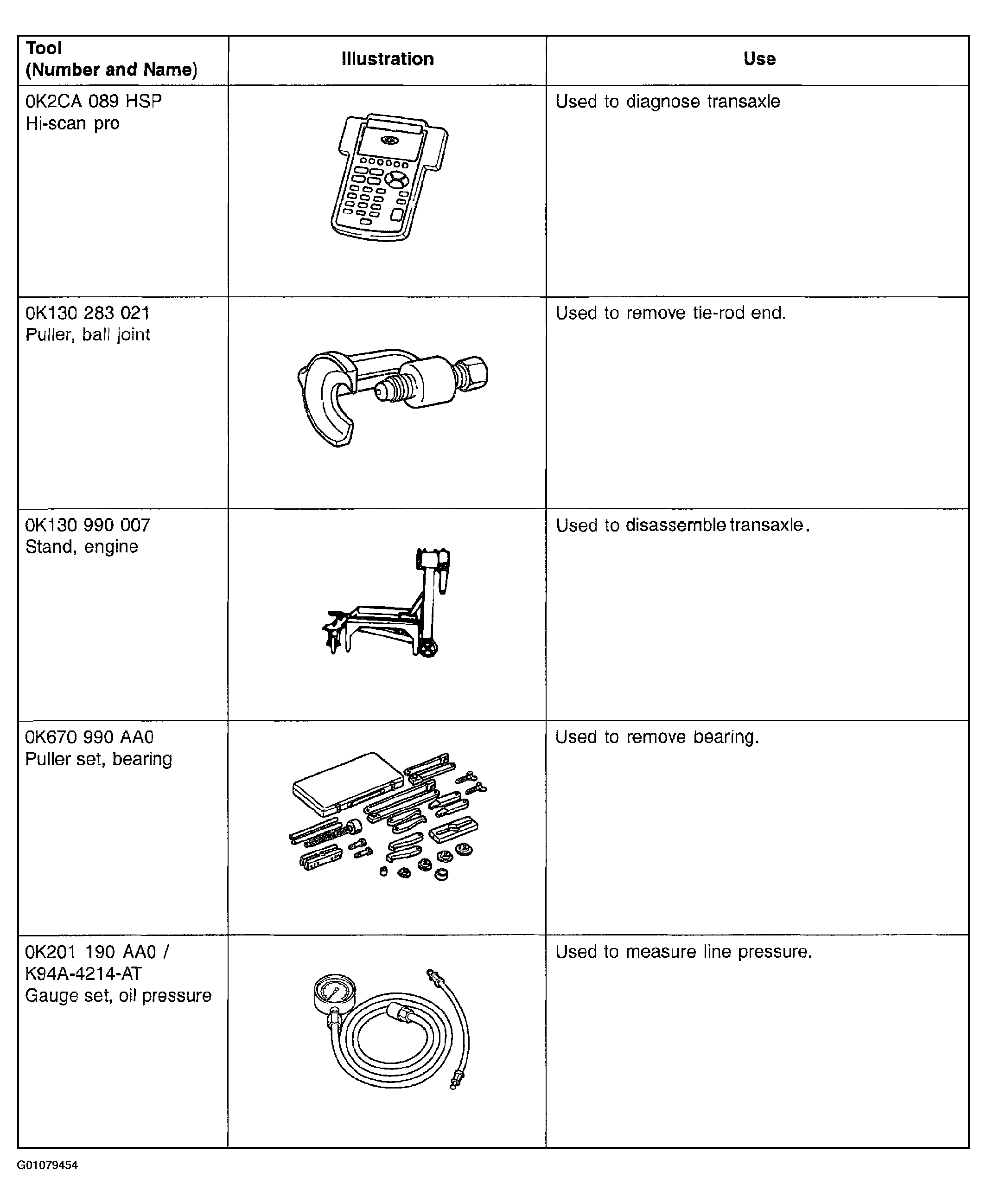

Fig 3: Illustrating Special Service Tools (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

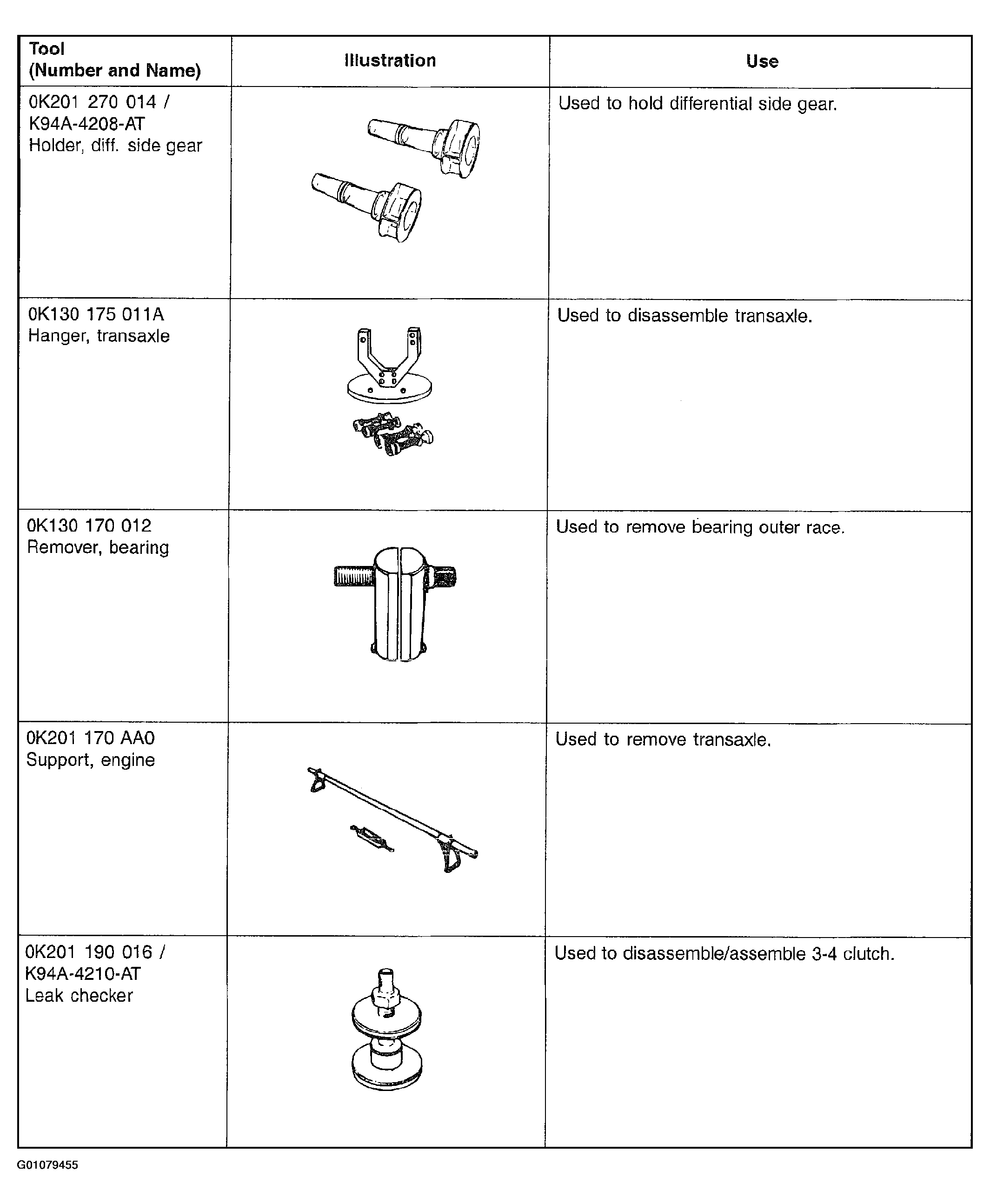

Fig 4: Illustrating Special Service Tools (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
