Component Operation Table: O/D Off System

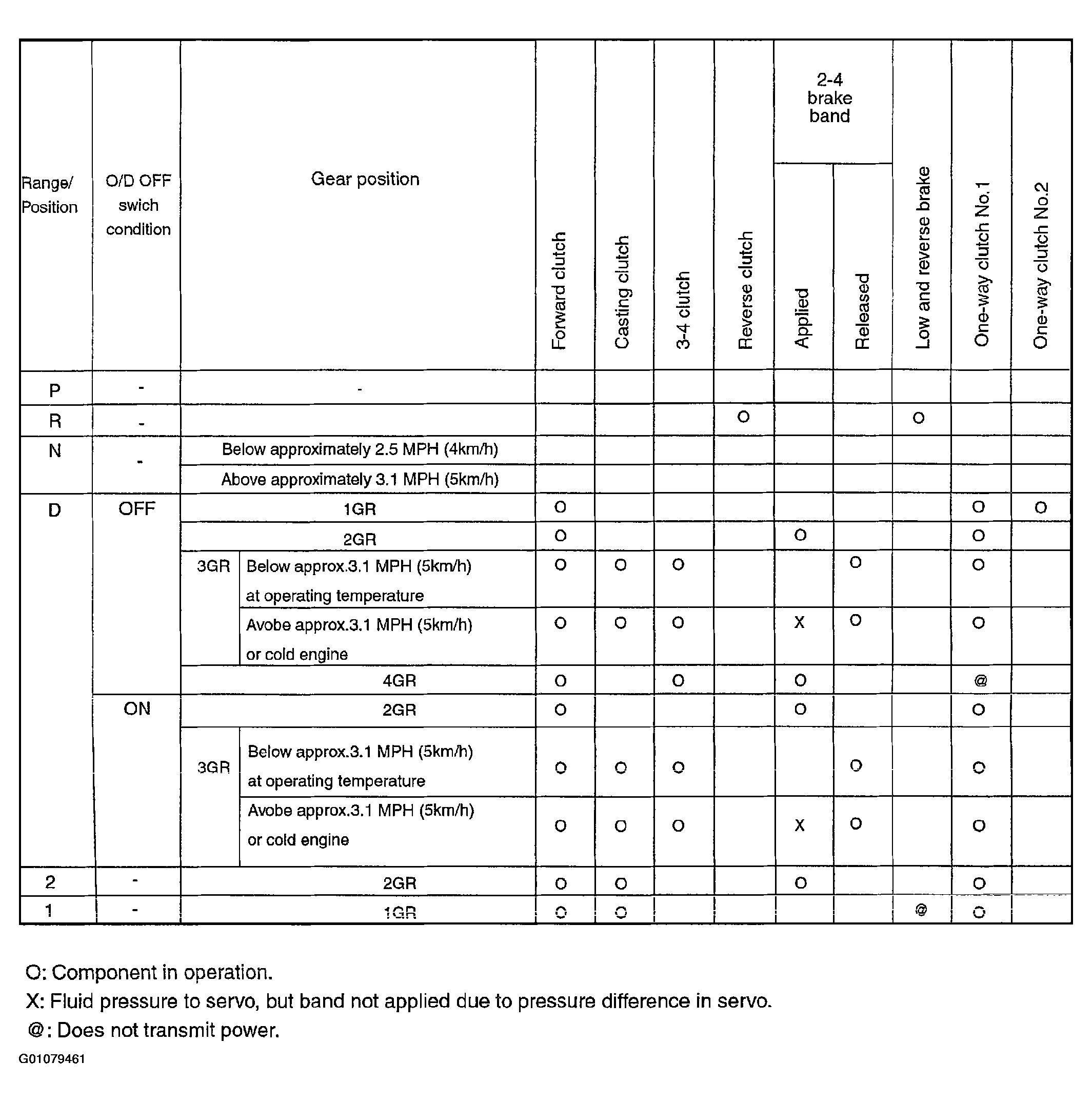

Fig 1: Component Operation Table: O/D Off System

G01079461

Courtesy of KIA MOTORS AMERICA, INC.
