Continuity Inspection

Disconnect negative battery cable.
Remove console.
Disconnect park range switch connector.

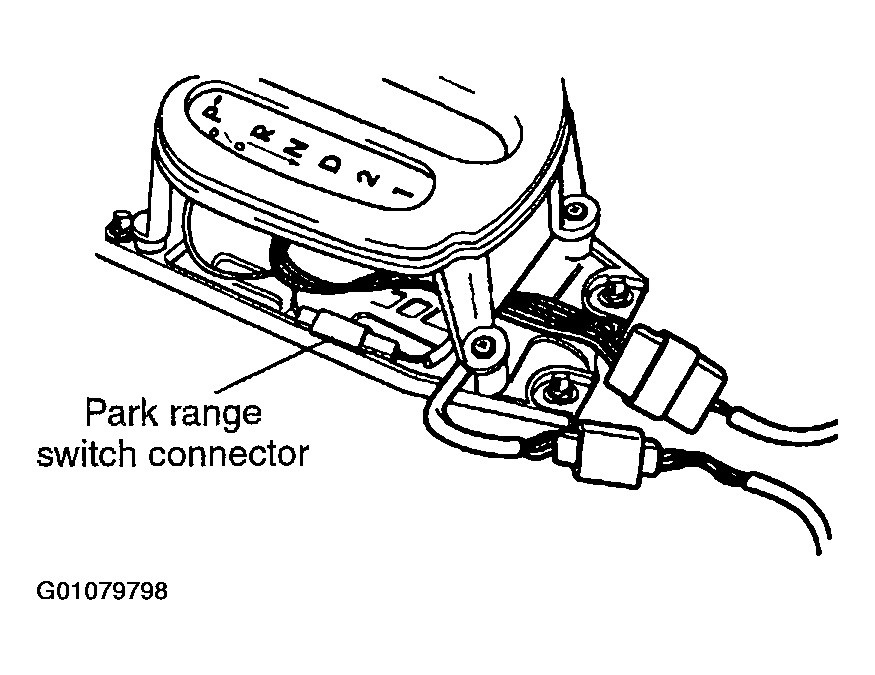

Fig 1: Locating Park Range Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Check continuity between terminals.

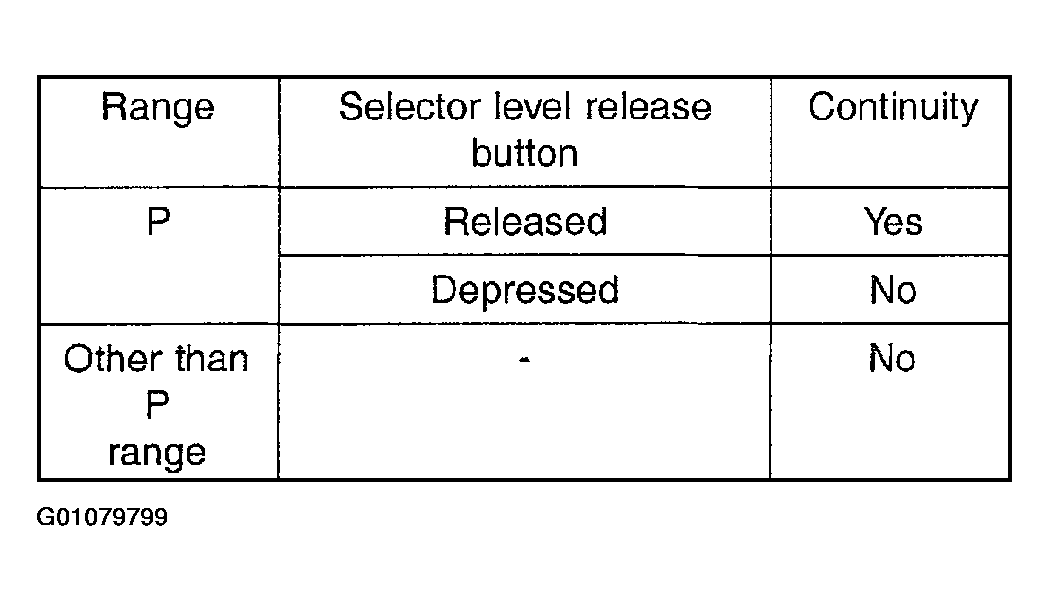

Fig 2: Testing Switch Continuity
Courtesy of KIA MOTORS AMERICA, INC.
If not as specified, replace park range switch.

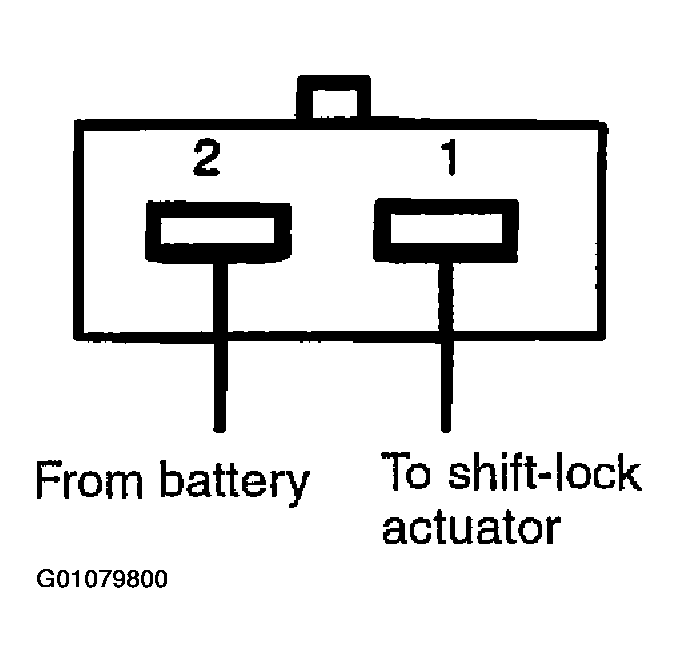

Fig 3: Illustrating Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Connect park range switch connector.
Install console.
Connect negative battery cable.
Check for correct operation of shift-lock system.

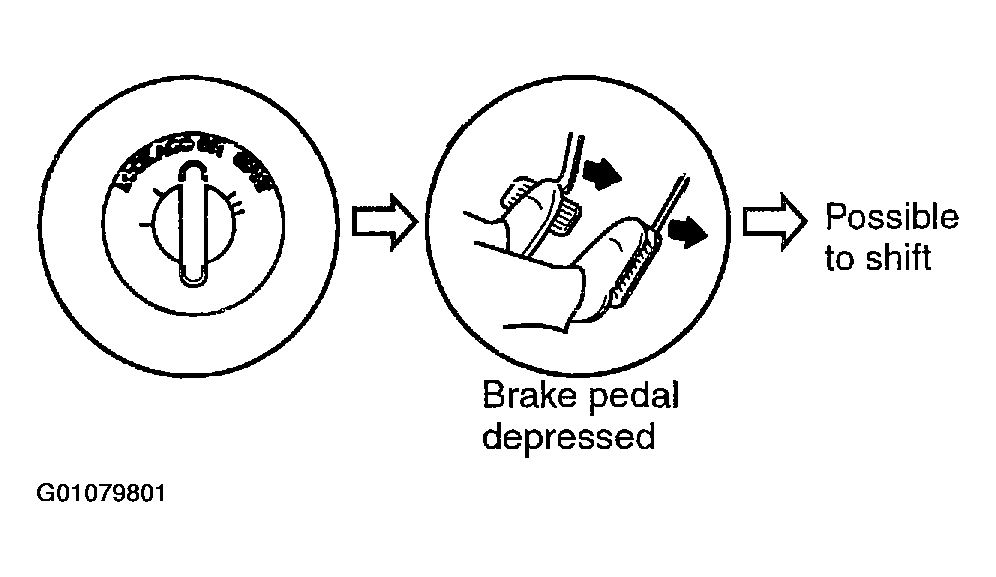

Fig 4: Testing Shift-Lock System Operation
Courtesy of KIA MOTORS AMERICA, INC.
