Continuity Inspection

  1. Disconnect 55-pin connector from transaxle control module.

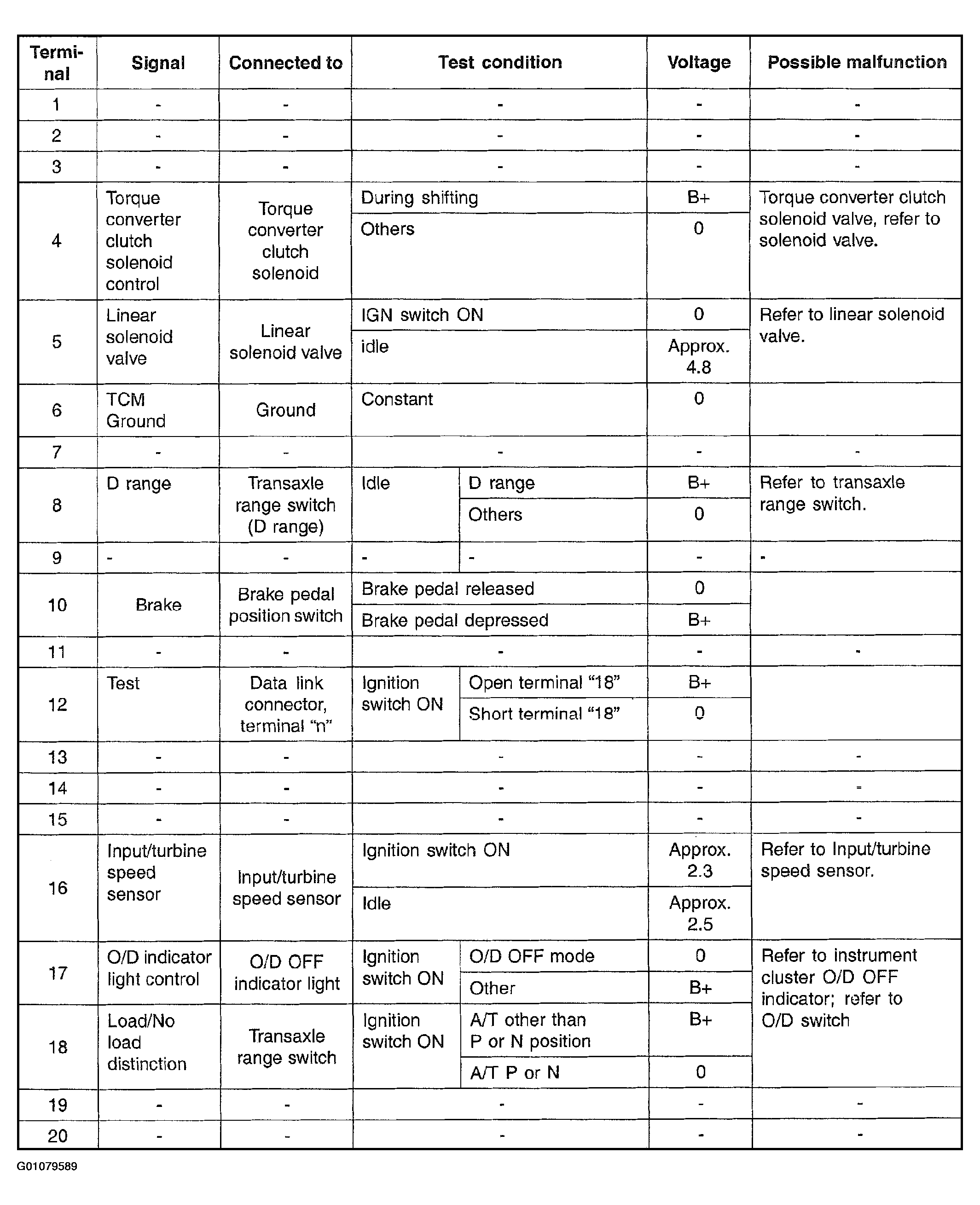

  2. Check continuity between terminals TCM-30, TCM-33, TCM-32 and TCM-4, and ground. See Figure .
  3. If not correct, check wiring for an open circuit.
