DELPHI Electronic Throttle Control - TP Sensor Screw Availability (KT2009032703)

Publication date: 2009-03-01
Reference number: KT2009032703

DELPHI ELECTRONIC THROTTLE CONTROL - TP SENSOR SCREW AVAILABILITY

DELPHI ELECTRONIC THROTTLE CONTROL - TP SENSOR SCREW AVAILABILITY

TECHNICAL SERVICE BULLETIN

Reference Number(s): KT2009032703, Date of Issue:  March, 2009
KIA: All Models

Description

In the event you may lose a screw during the replacement of the TP sensor (TSB ENG 044 REV) - ECM UPGRADE WITH TP SENSOR REPLACEMENT - MIL ON WITH DTC P2135/P0638 new replacement screws are available through your regional PDC. Screws may be re-used however please apply Loctite® Threadlocker 290  (Green) and hand tighten the T-20 torx screws.

PART INFORMATION CHART

Part Name Part Number
Screw 35106 3C100
Fig 1: Loctite Threadlocker 290
G06507154

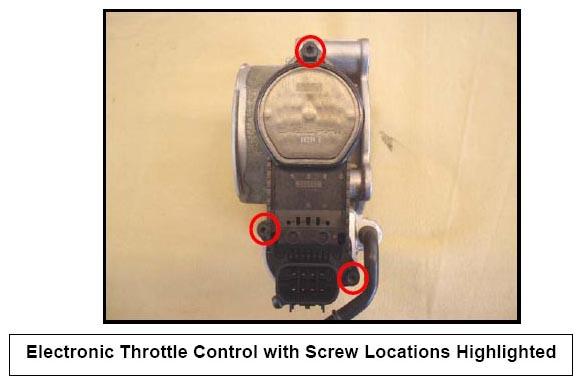

Fig 2: Electronic Throttle Control With Screw Locations
G06507155

Electronic Throttle Control with Screw Locations Highlighted
