PCV Valve Operating

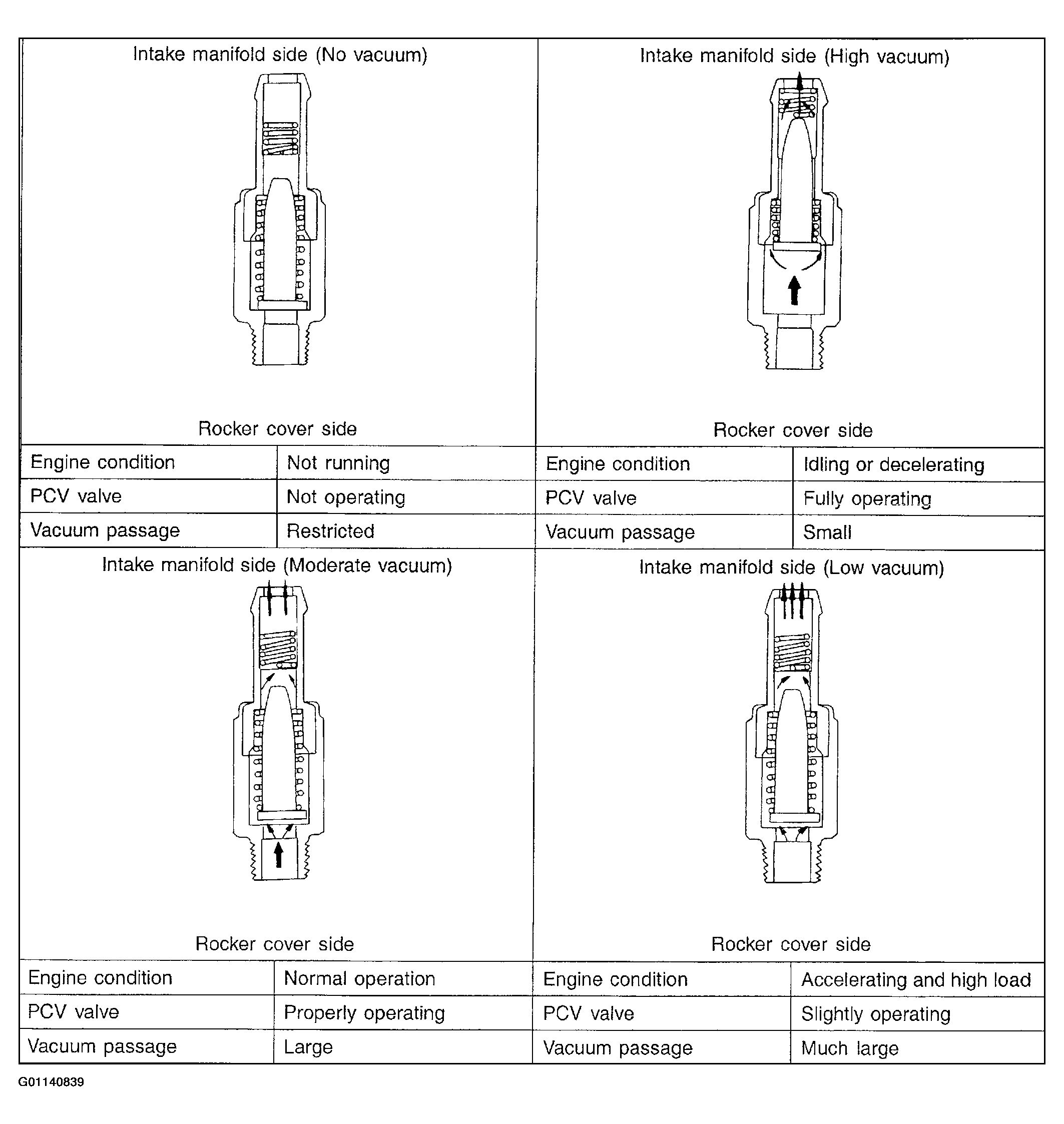

Fig 1: Illustrating PCV Valve Operation

G01140839

Courtesy of KIA MOTORS AMERICA, INC.
