ETACS Pin No. And Description

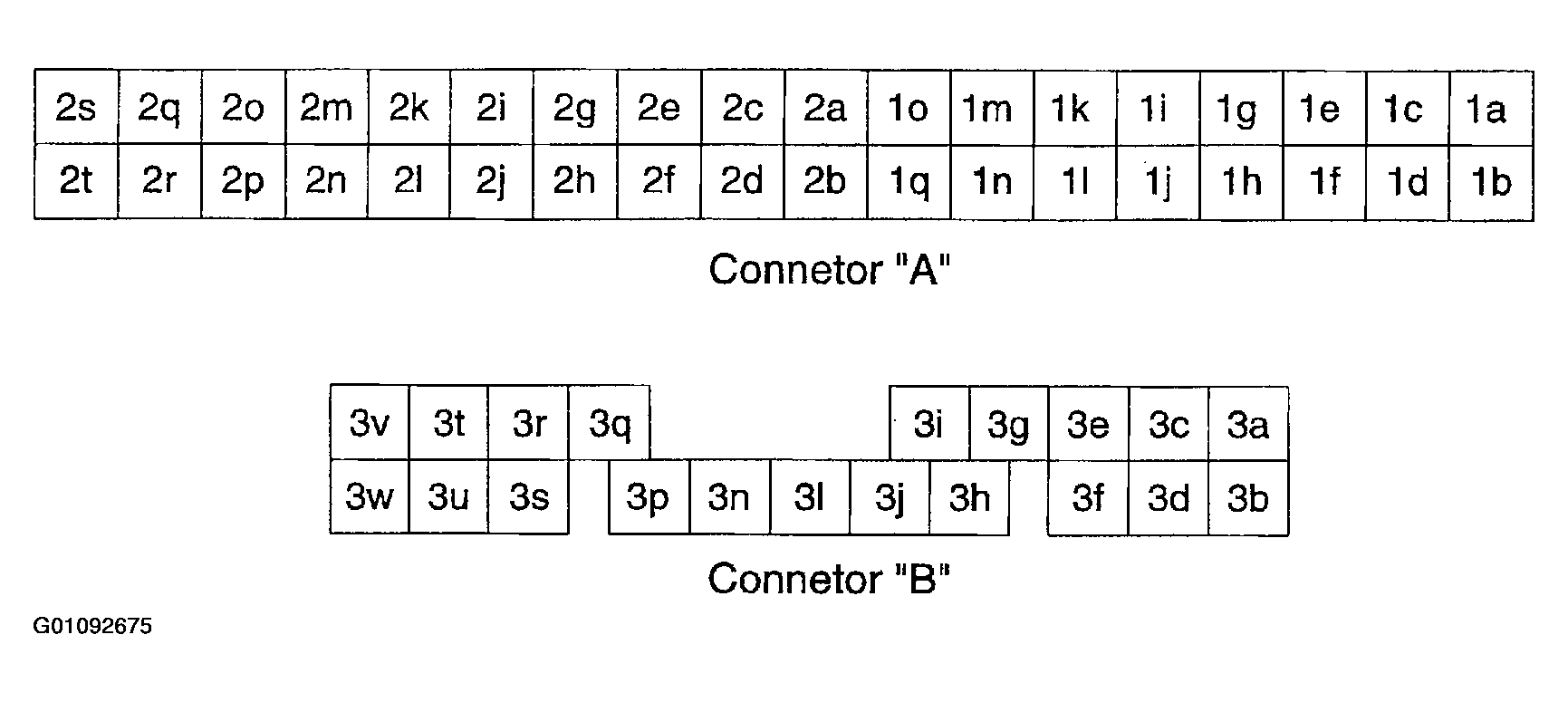

Fig 1: ETACS Pin No. And Description (1 Of 2)

G01092675

Courtesy of KIA MOTORS AMERICA, INC.

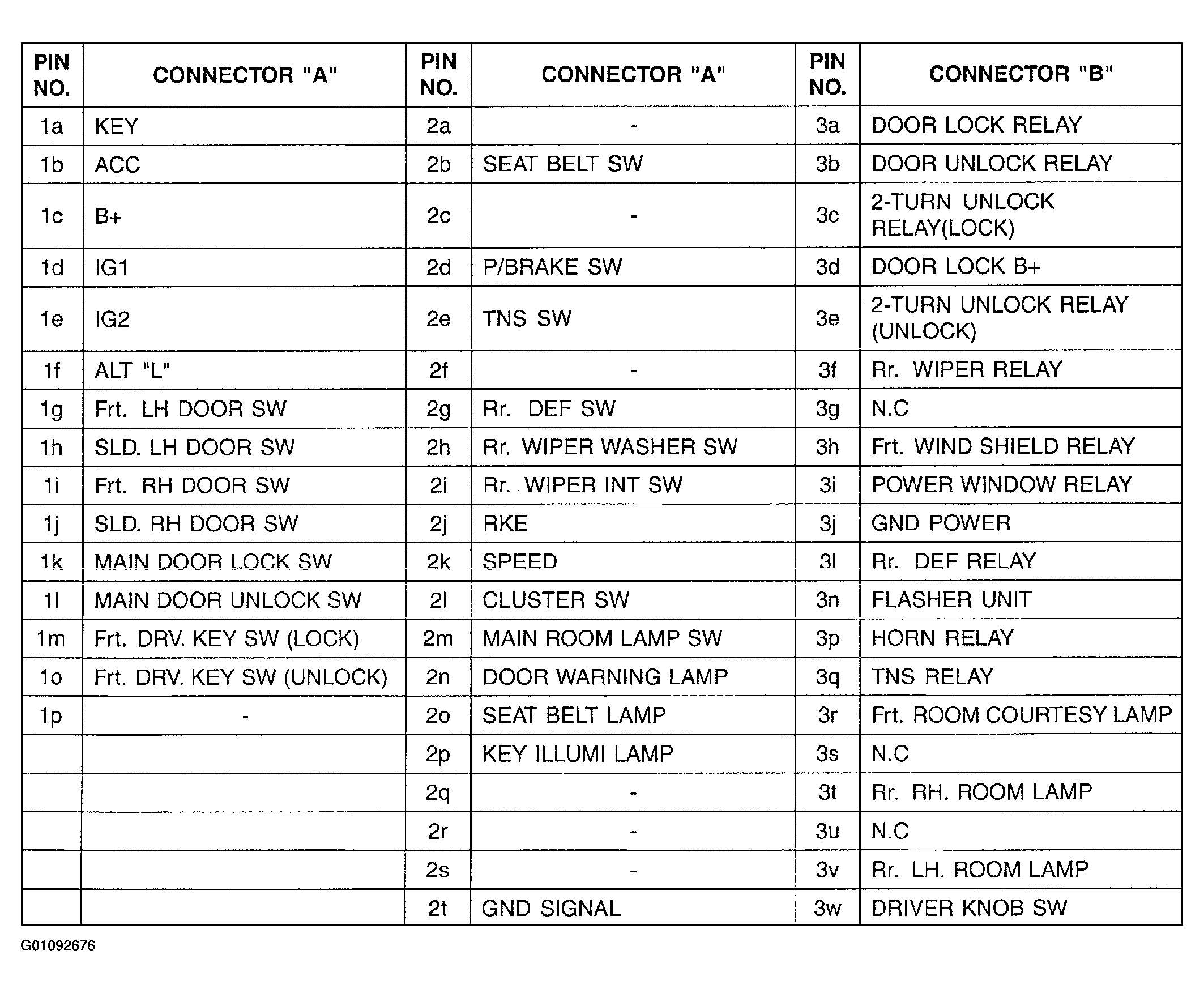

Fig 2: ETACS Pin No. And Description (2 Of 2)

G01092676

Courtesy of KIA MOTORS AMERICA, INC.
